© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 114

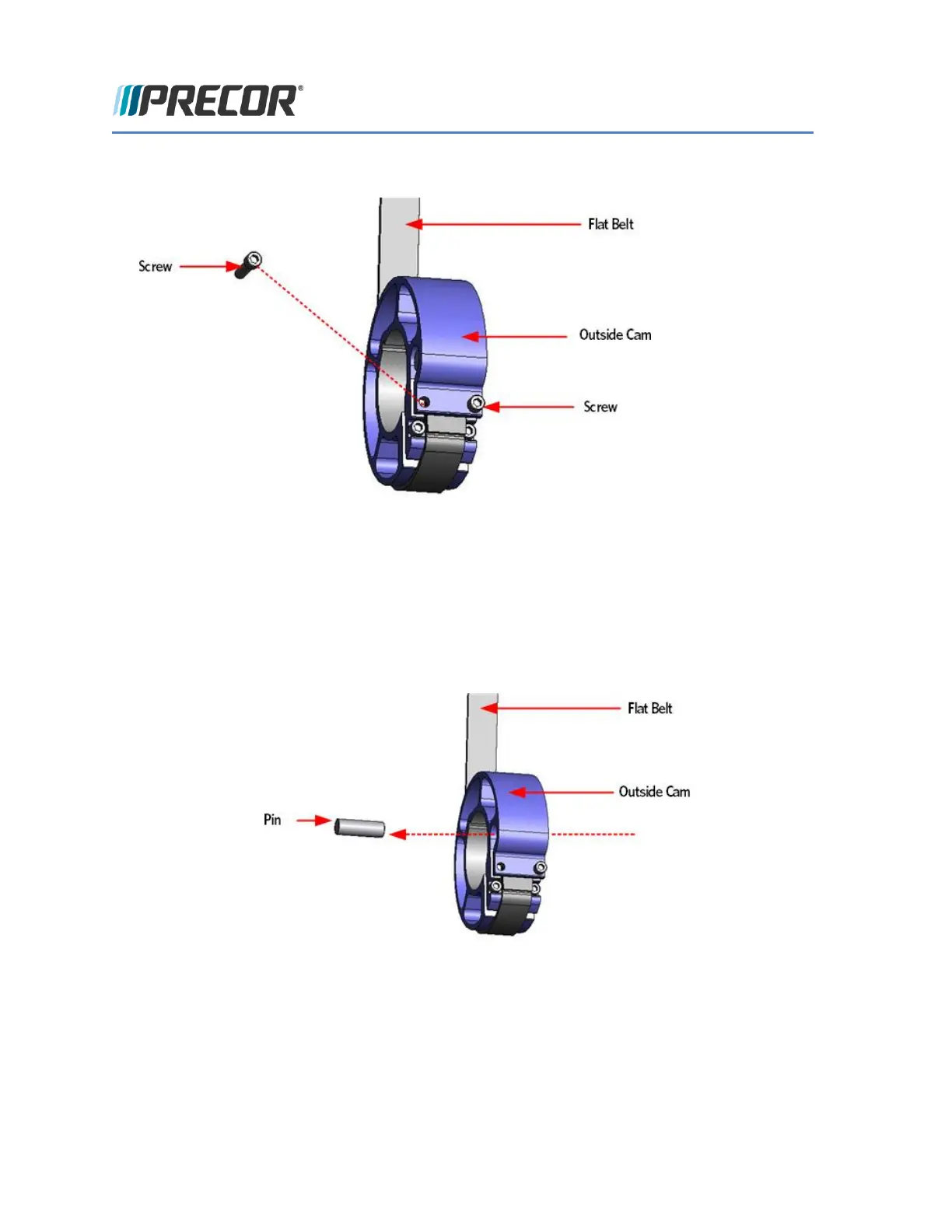

FIGURE 81: UPPER OUTSIDE CAM SCREW REMOVAL
17 Using a screwdriver, push out the pin from the flat belt loop and cam clamp and then slide the flat belt
out of the cam clamp.
FIGURE 82: UPPER OUTSIDE CAM PIN REMOVAL
