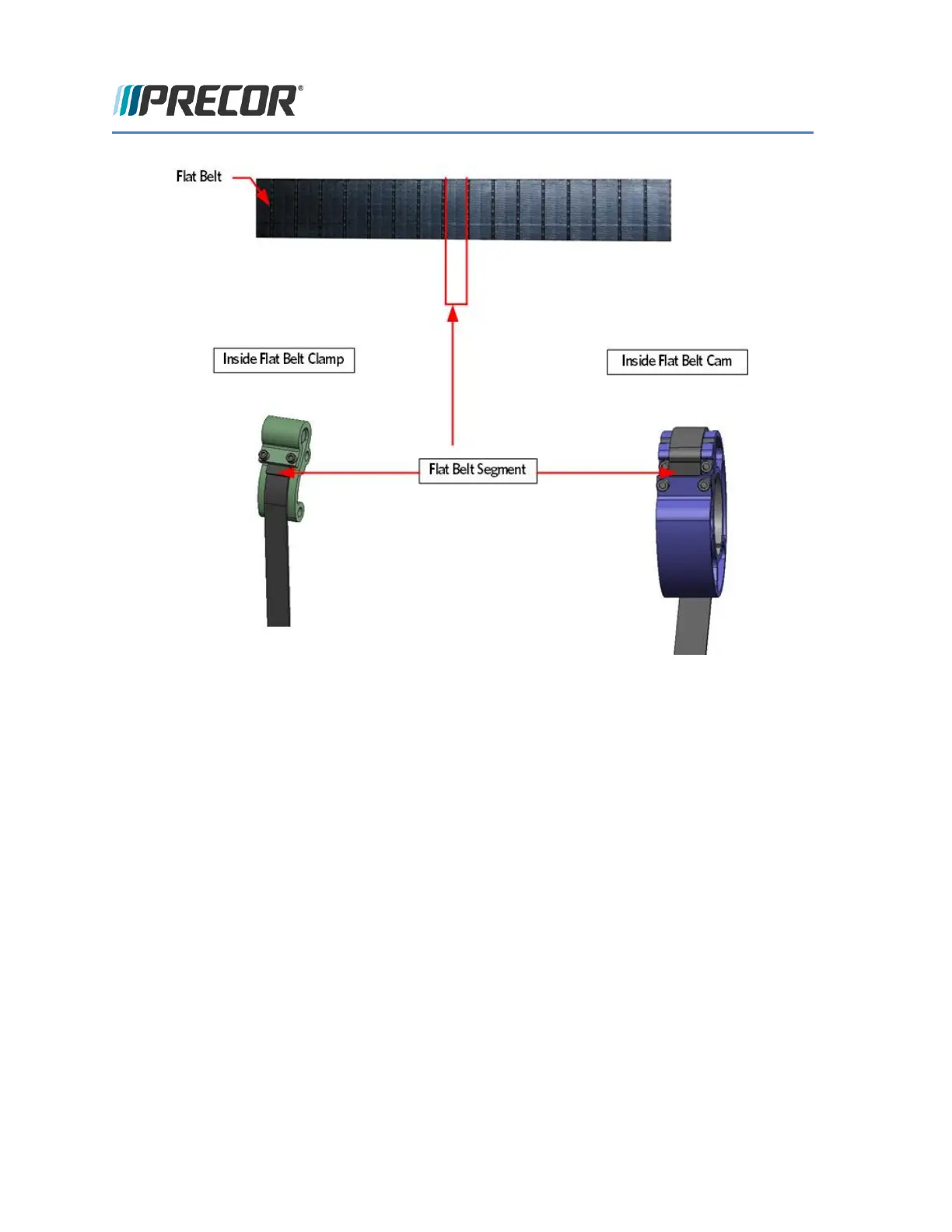

25 If one of the flat belt ends reaches the one segment measurement before the other end, stop the
downward pressure on the stairarm pedal and tighten the flat belt clamp screws on the flat belt end that
has reached the one segment measurement. Torque to 120 inch pounds.
26 Resume applying downward pressure to the stairarm pedal until the remaining flat belt end reaches the
one segment measurement. Tighten the two flat belt screws and torque to 120 inch pounds.
27 Remove the mounting bolts that secure the inside flat belt clamp to the frame, replace the washers and
reinstall the mounting bolts. Torque to 300 inch pounds.
28 If the flat belt was not re-routed through the pulleys in step 17, route them at this time.
29 Repeat the procedure for the remaining inside flat belt replacement.
