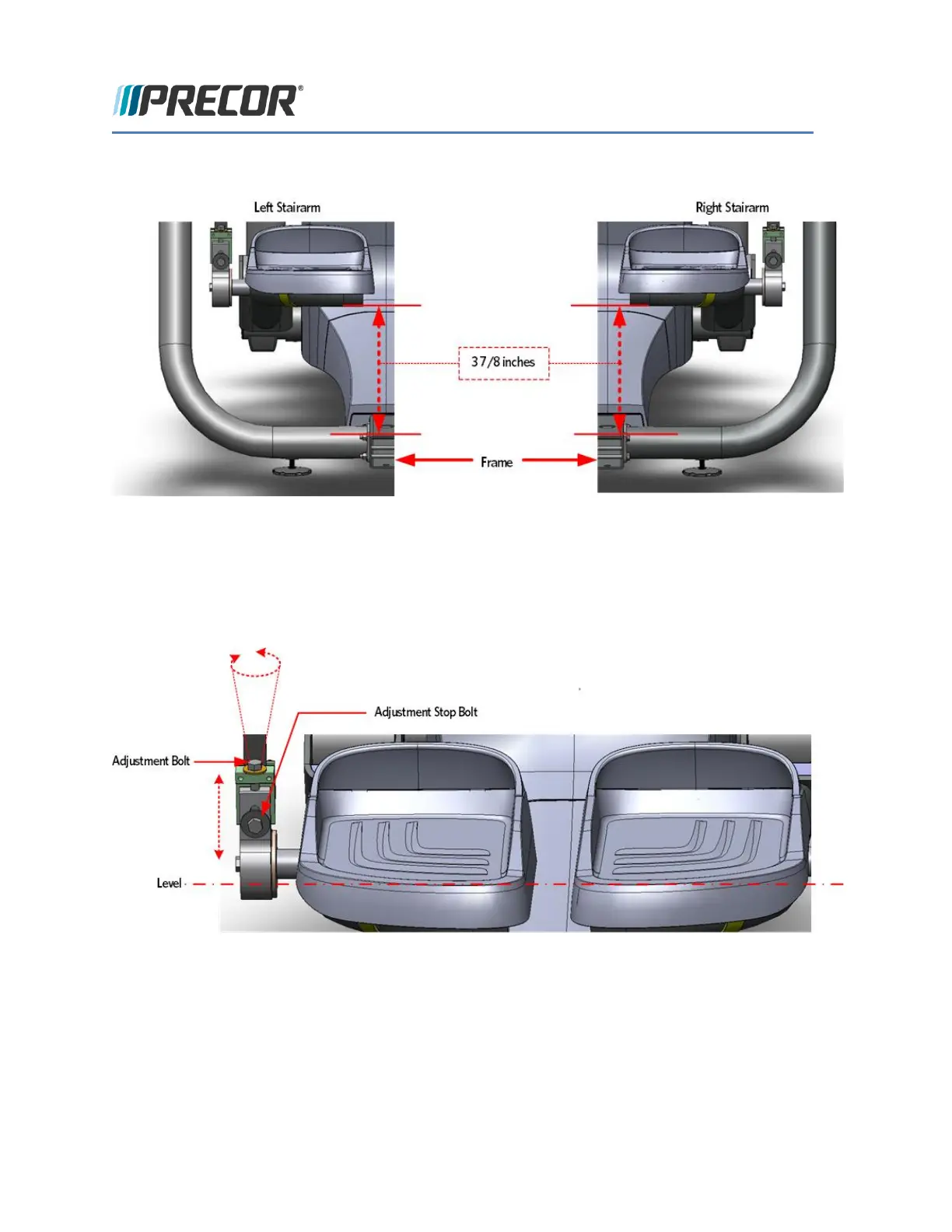

FIGURE 88: STAIRARM HEIGHT MEASUREMENT
39 If the measurement is too low or too high, tighten or loosen the adjustment bolt until the 3-7/8 inch
measurement is achieved.
FIGURE 89: FLAT BELT TERMINAL ADJUSTMENT
40 Repeat the process for the remaining stairarm.
41 Fully tighten the stop bolt, torque to 300 inch pounds or 25 foot pounds.
