1 Repeat the steps for the remaining front arm covers.
Upper Arm Grip Removal
2 Remove the two screws that secure the grip to the upper arm, there is one screw on each side of the
upper arm.

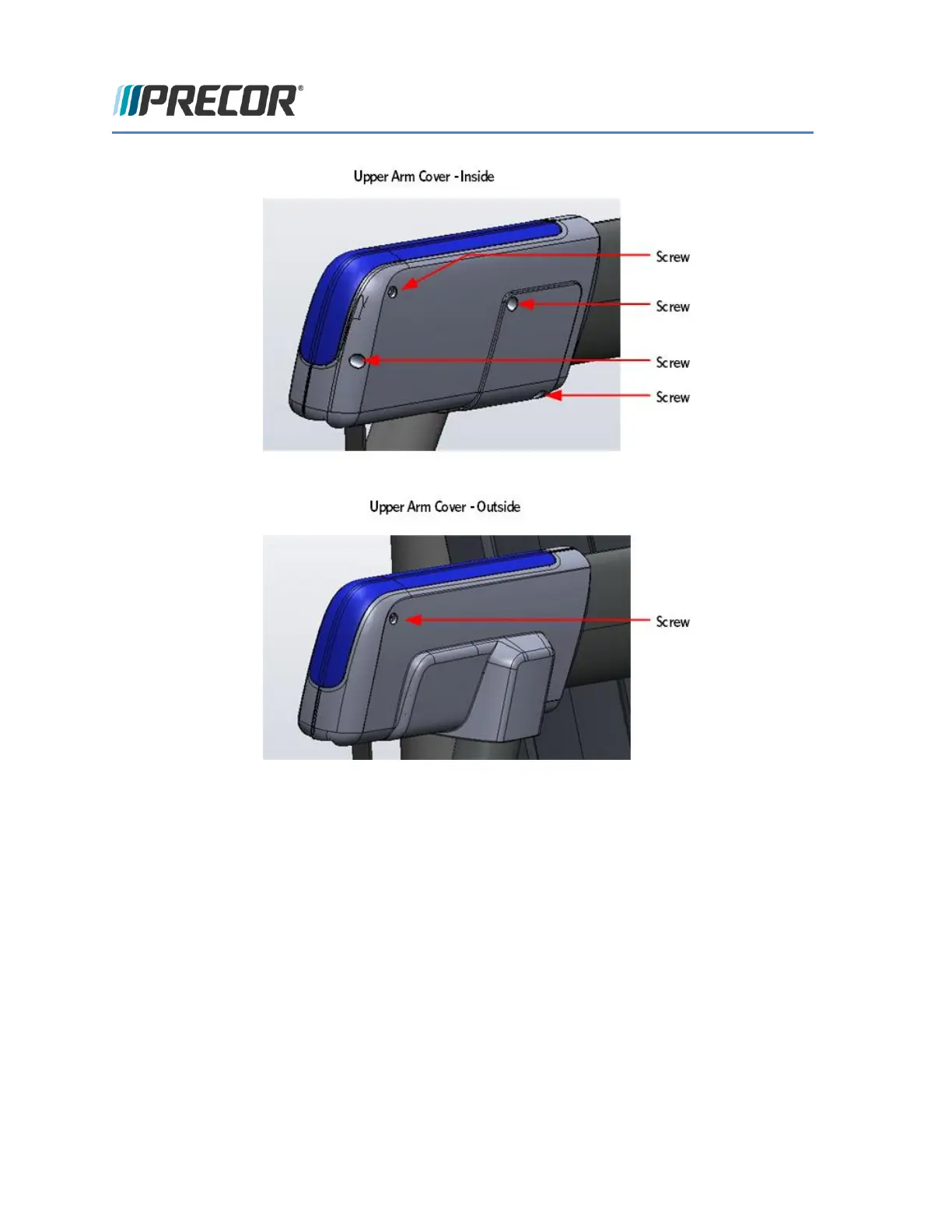

FIGURE 102: UPPER ARM GRIP SCREW LOCATIONS
