23 Install the crank arm pinch bolt, washer and lock nut. Torque the pinch bolt and lock nut to 300 inch
pounds or 25 foot pounds.

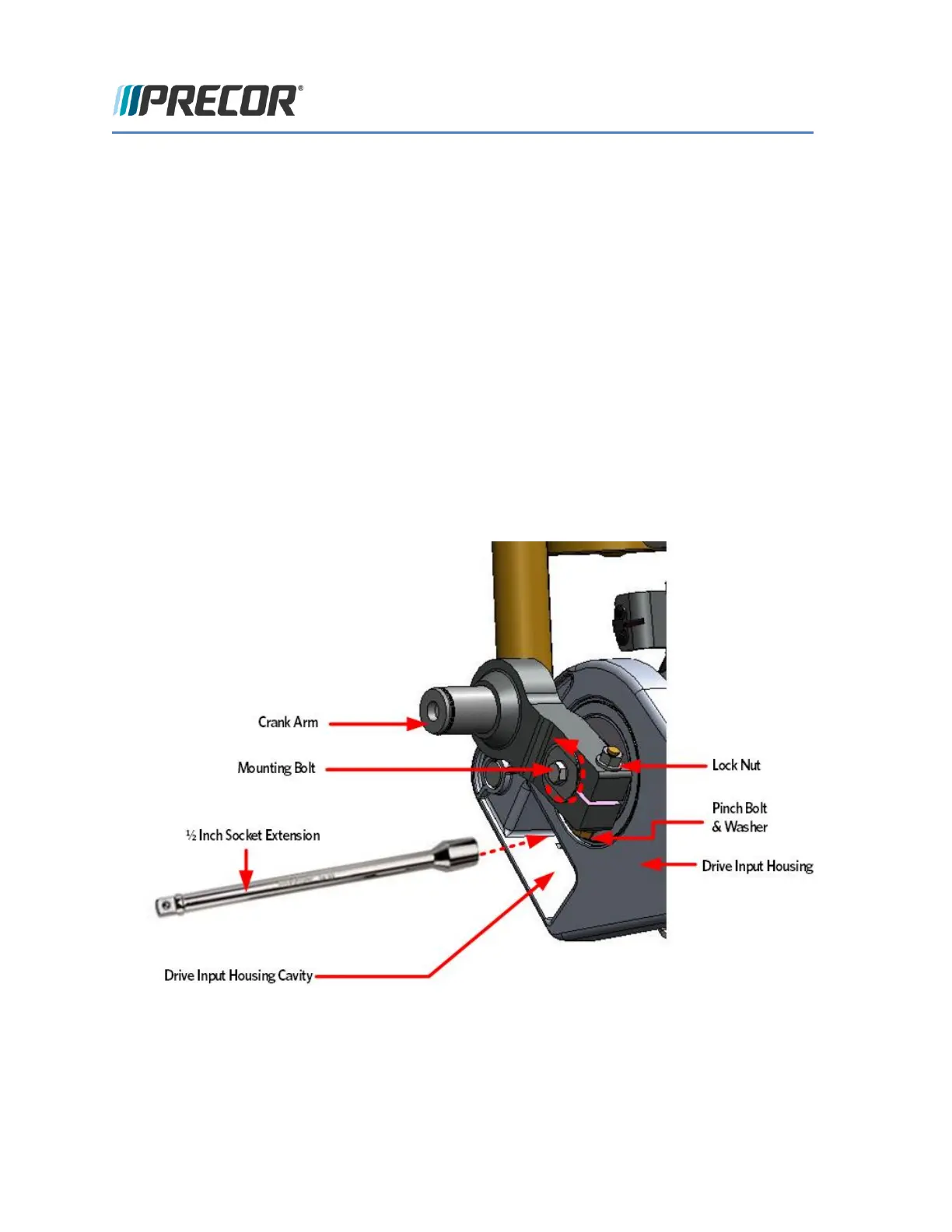

FIGURE 184: CRANK ARM BOLT REMOVAL/ INSTALLATION
FIGURE 185: CRANK ARM FLAT BELT PULLEY
