© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 219
39 Select the QUICKSTART program and adjust the resistance up ▲ key until resistance level 10 is
displayed. Pedal the AMT for approximately one minute and then recheck the belt tension.

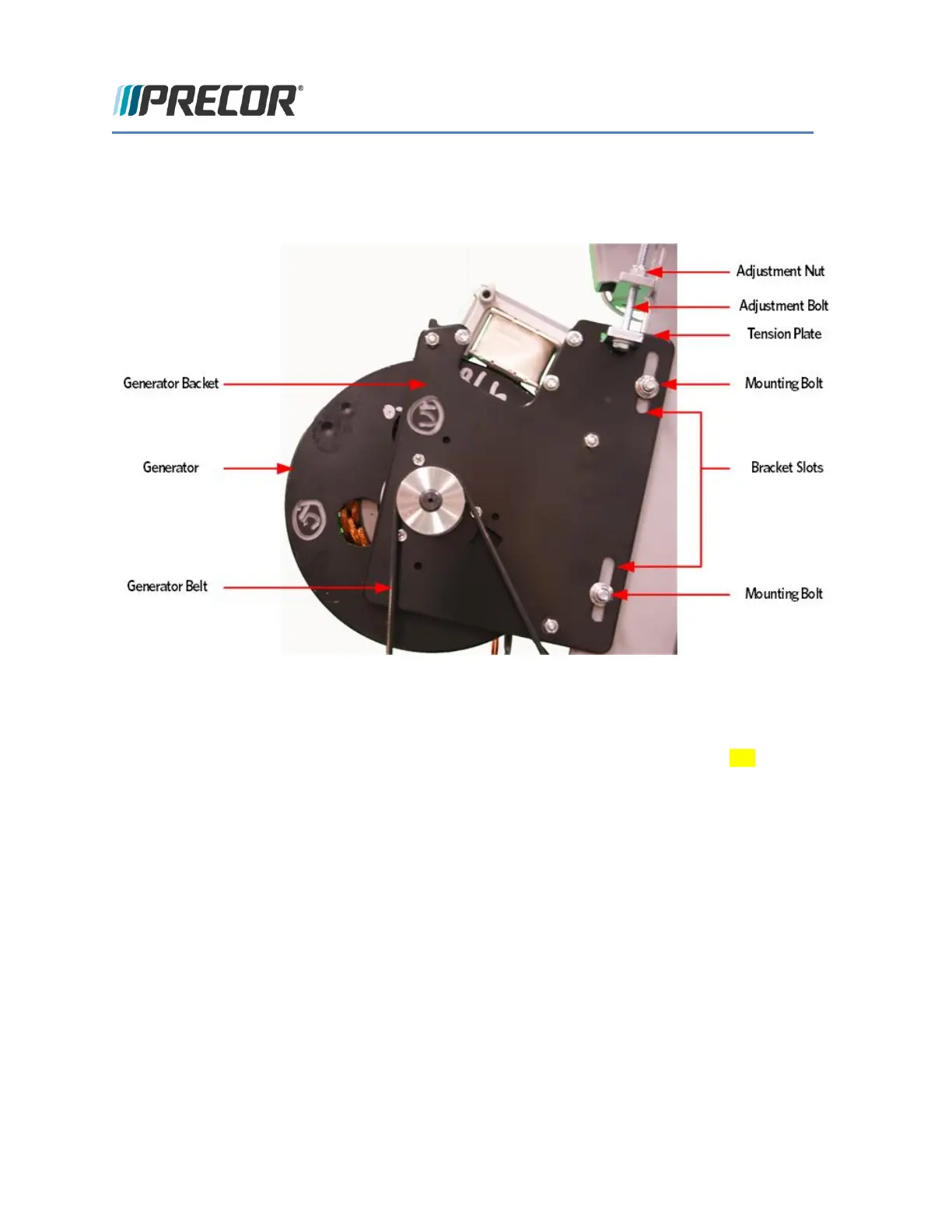

FIGURE 216: GENERATOR
40 The drive input belt tension should read approximately 120 ± 10 lbs and the generator belt tension
should read approximately 90 ± 10 lbs. See Drive Belt Gauge Instructions (on page 265)
41 Attach the Incline motor to the frame using the 3/8-16 mounting bolt.
FIGURE 217: INCLINE MOTOR MOUNTING
