© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 246
7 Remove the snap ring from the upper flat pulley shaft located next to the Incline motor, remove the
pulley and wave washer. Removing the flat pulley will allow access to the Incline motor upper mounting
bolt.

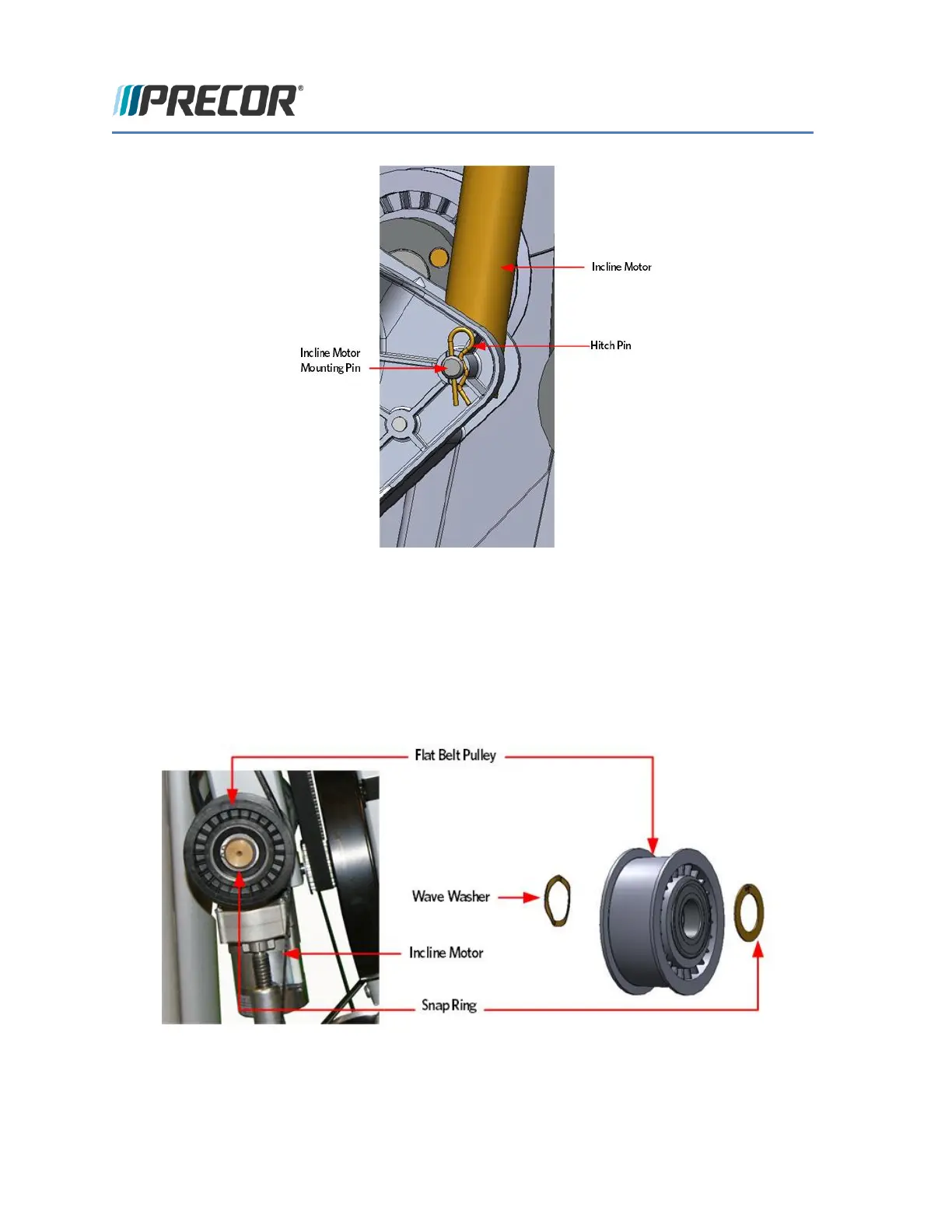

FIGURE 247: INCLINE MOTOR FLAT BELT PULLEY
8 Remove the incline motor housing mount bolt and remove the Incline motor. Early model AMTs used a
bolt with bushing installation hardware, later models used a larger diameter bolt illuminating the need
