8 Tighten the input mounting bolts.
9 Select the QUICKSTART program and adjust the resistance key until resistance level 10 is displayed.
Pedal the AMT for approximately one minute, then recheck the belt tension.
10 Recheck the drive belt tension, readjust if needed.
11 Place a belt gauge on the generator belt as shown in below.

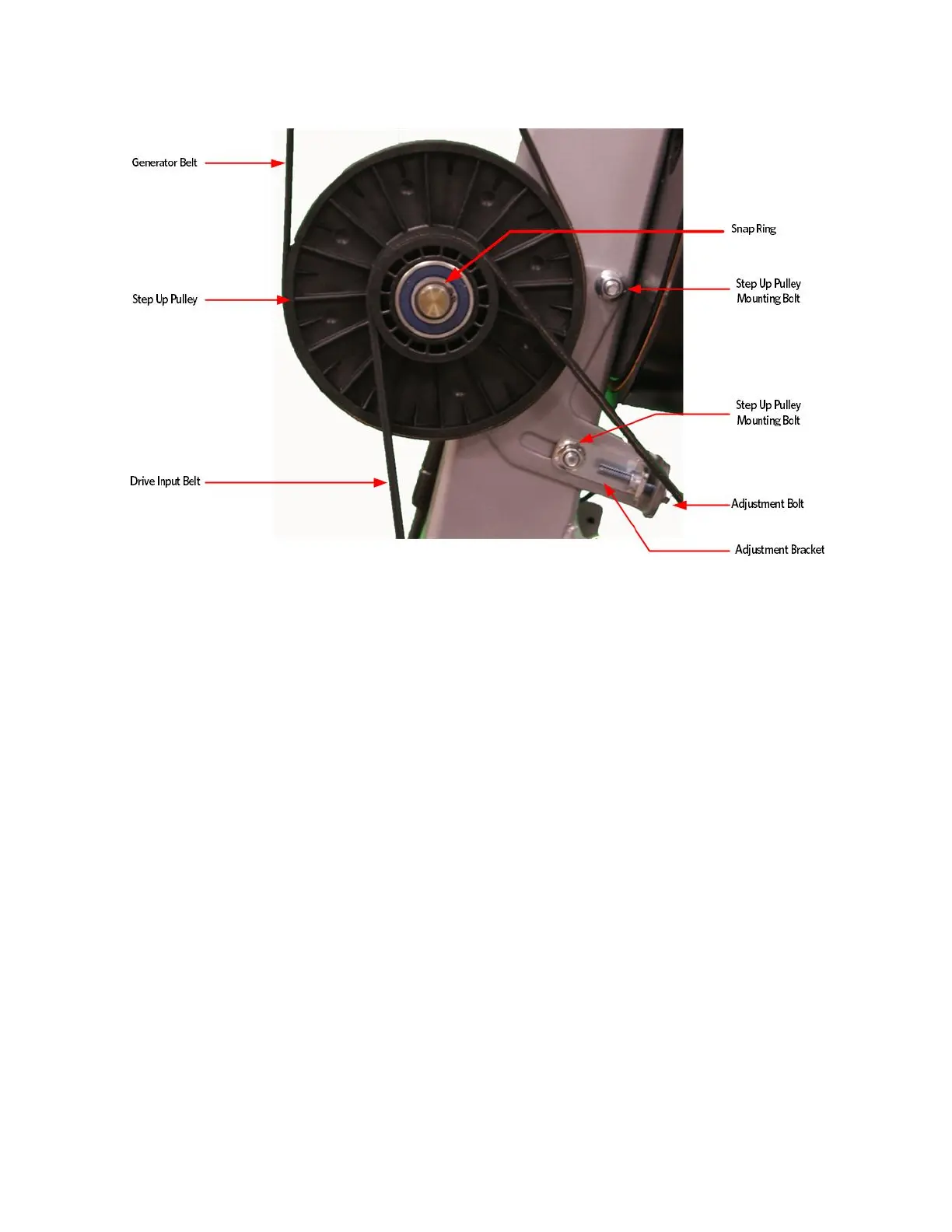

FIGURE 257: GENERATOR BELT
