© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 88

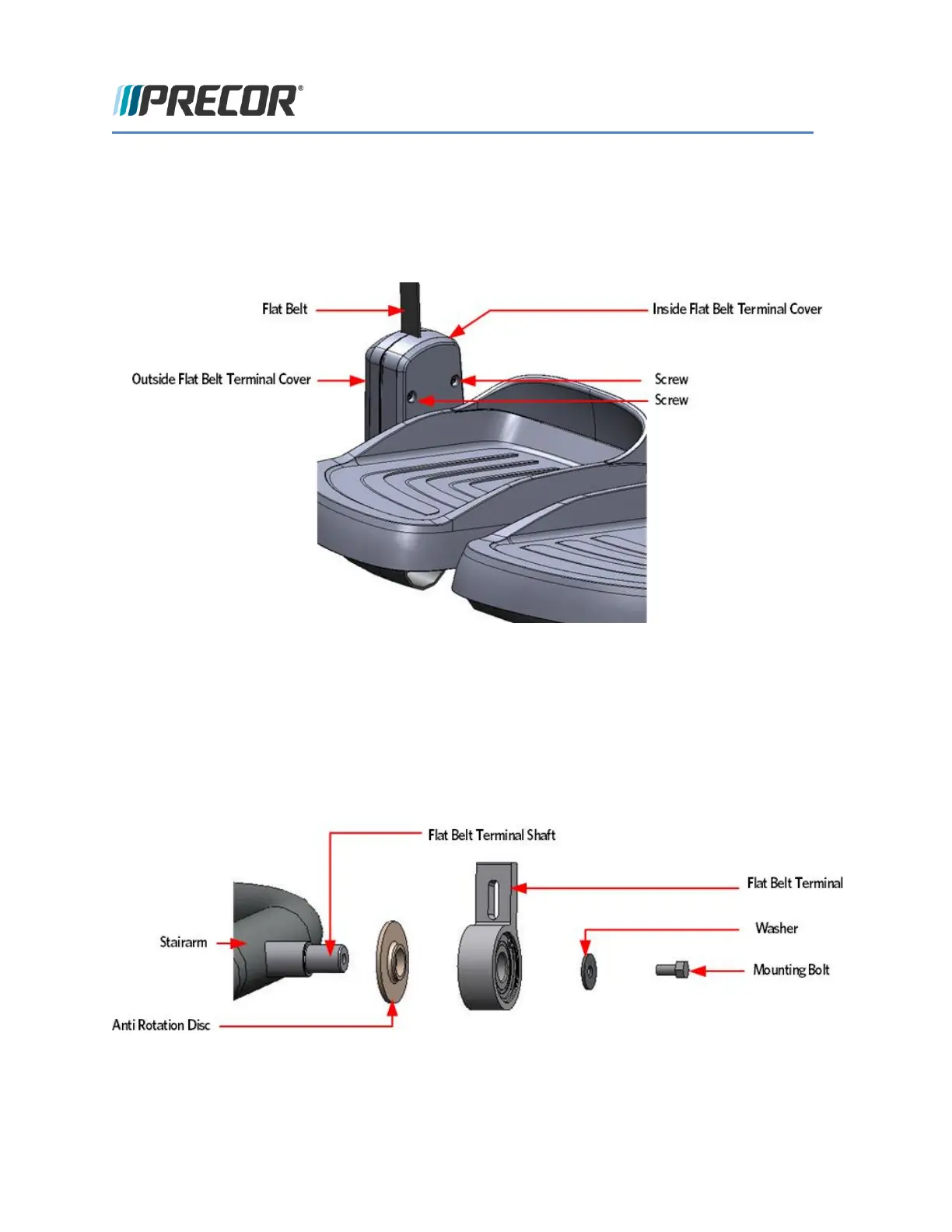

FIGURE 50: FLAT BELT TERMINAL COVERS
Flat Belt Terminal Removal
4 Remove the mounting bolt and washer that secure the flat belt terminal to the stairarm, remove the flat
belt terminal and anti-rotation disc.
FIGURE 51: FLAT BELT TERMINAL REMOVAL
