3. Adjust the doors position depending on the
gap needed between exterior finishing
panels.
4. Tighten the bolts.
5. Check that the doors swing freely and close
properly. It may be necessary to adjust the
door latch to get proper fit and operation.
To adjust the latch mechanism (4, Fig. 30) and
the striker pin:
1. Open the doors to access the striker pin.
2. Slightly loosen the striker pin.
3. Using a hammer, adjust the striker pin to
center it in the door latch mechanism.
4. Tighten the striker pin.
5. Check doors fit and operation.

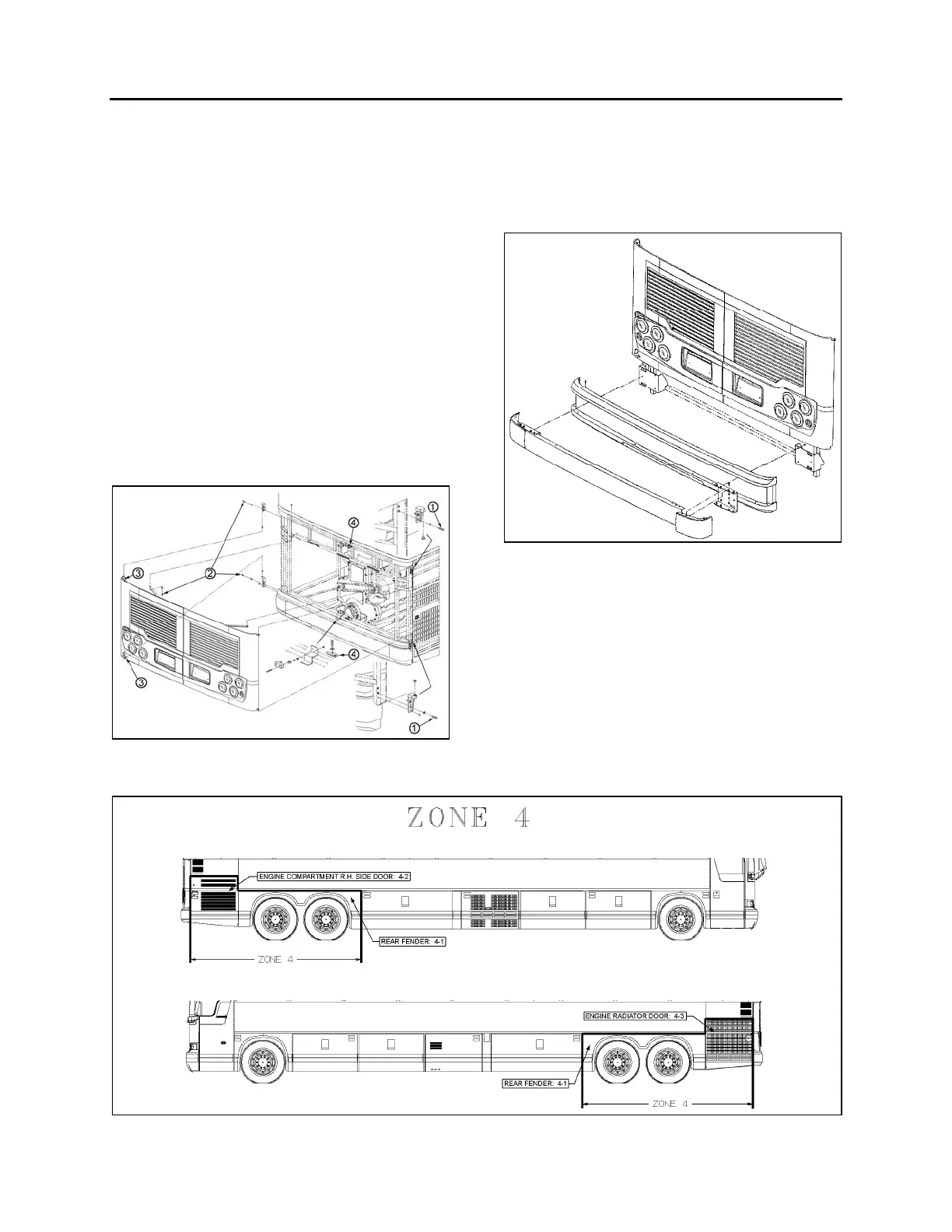

FIGURE 30: ENGINE COMPARTMENT DOORS 18633
9.3 REAR BUMPER
Remove three bolts on each side holding
bumper to vehicle and remove bumper.
To install bumper, reverse the procedure.
FIGURE 31: REAR BUMPER 18634
10 ZONE 4
FIGURE 32: ZONE 4 18627
