PREVOST X3-45 Multiplex User Manual

PROCEDURE NO: PR060034 REVISION 4
Page 4 of 15

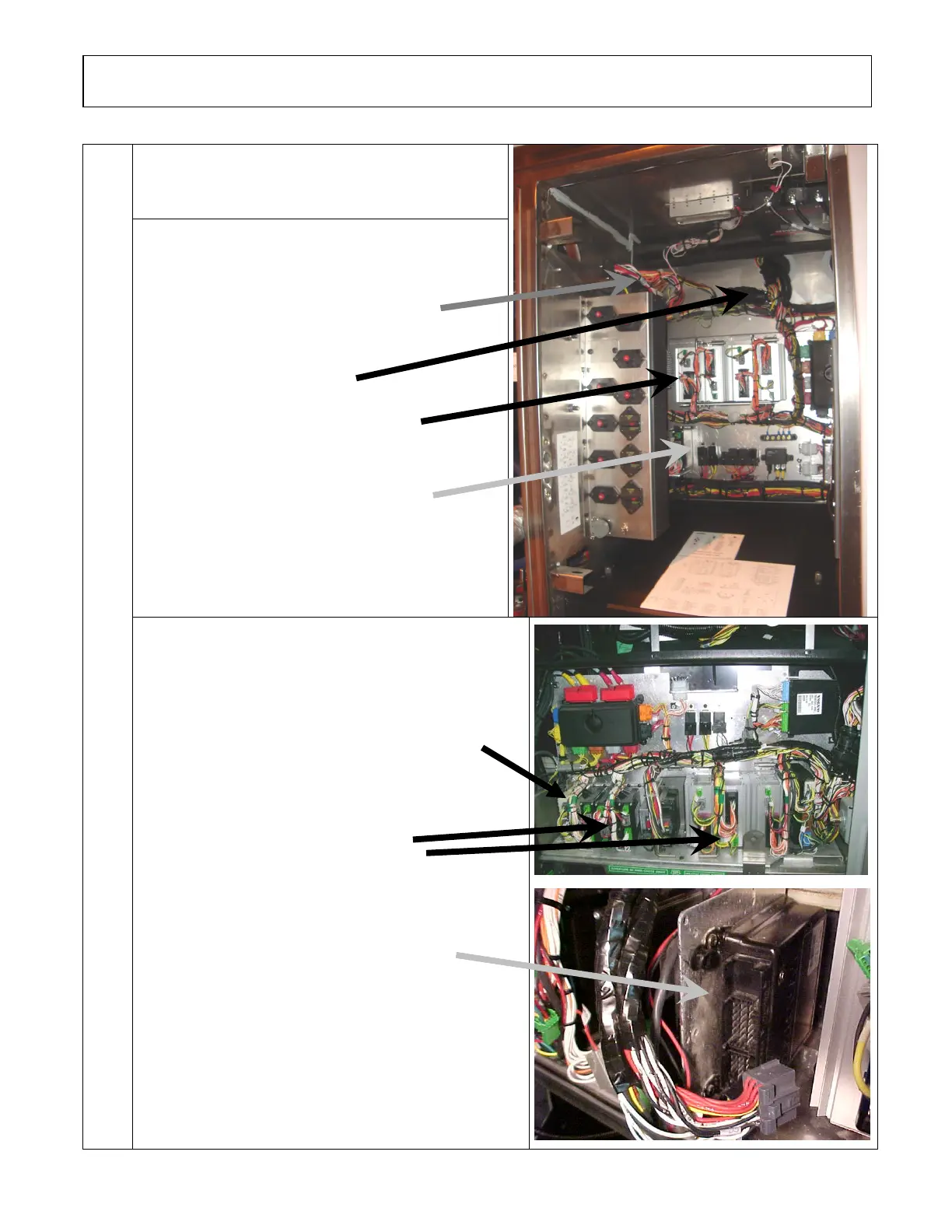

Location: Main power compartment
Disconnect the electronic modules :
Disconnect the I/O A and I/O B modules
Disconnect C397
Disconnect connector C717
Unplug 3 connectors per I/O B modules
Unplug 3 connectors on the I/O A module
1.15
1.20
Location: Front electrical compartment
VIP + COACH: Disconnect the I/O A, I/O B, ABS,
master ID, CECM and CPC modules. Unplug connector
C92
VIP: Disconnect all keyless module connectors.
Unplug 3 connectors per I/O B modules
and 3 connectors per I/O A modules.
Unplug 2 connectors from the ABS module

PREVOST X3-45 Multiplex Specifications

General

Length	45 ft
Width	102 in
Engine	Volvo D13
Horsepower	500 hp
GVWR	54, 000 lbs
Height	146 in
Sleeping Capacity	Varies based on floor plan
Water Capacity	Varies based on floor plan
