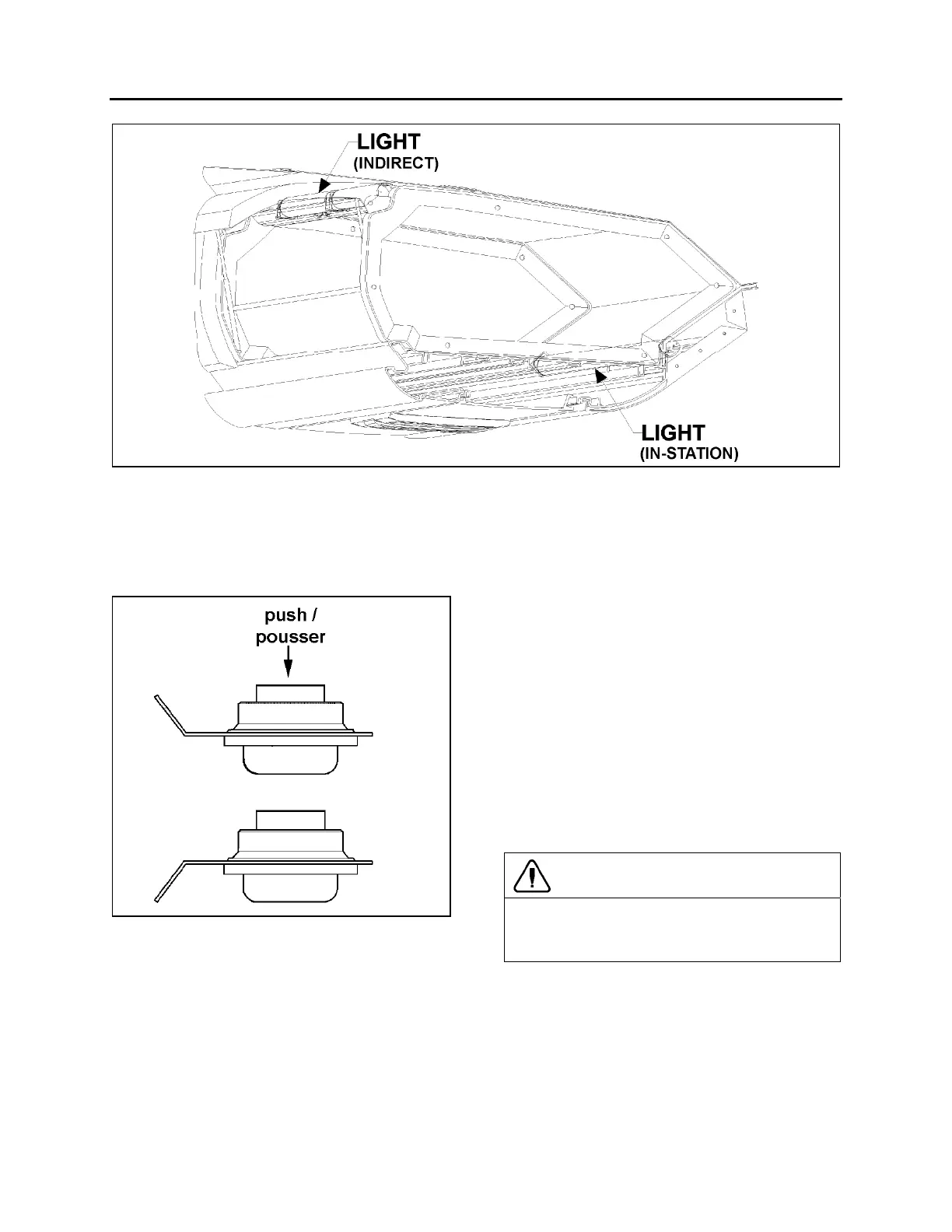

FIGURE 34: PARCEL RACK LIGHTING 06419
10.6 ENGINE COMPARTMENT LIGHTING
A switch located on R.H. side of rear junction
box can be used to actuate the two oval engine
compartment lights.
FIGURE 35: ENGINE COMPARTMENT LIGHT
Each light is sealed and can be replaced as
follows:
1. Disconnect the light unit connection.
2. Remove the lamp.
3. Position new lamp.
4. Connect the light unit.
5. Make sure the retaining ring is installed
properly.
10.7 LAVATORY LIGHT
The halogen lavatory light is installed on ceiling.
A microswitch, mounted in the door exterior
frame, is activated by the door lock mechanism
upon locking to energize the circuit. This switch
is readily serviced by removing the two Phillips-
head screws securing the mounting plate to the
door exterior frame.
Bulb removal and replacement:
1. Unsnap the lamp with a flat head screwdriver
and remove it.
2. Pull the defective bulb out of the socket.
3. Install the new bulb by pushing it into
position.
4. Replace the lamp by snapping it back in
place.
CAUTION
Do not touch halogen bulbs with bare hands
as natural oils on skin will shorten bulb life
span.
11. LIGHT BULB DATA
When replacing a light bulb, special attention
must be paid to the voltage rating (refer to light
bulb data hereafter).
