PREVOST X3-45 Multiplex User Manual

Repair and Testing Instructions for T1 Page 39
Alternator 0120 689 552 Edition 001
All rights rest with Robert Bosch Corp, including patent rights. All rights of use of reproduction and publication rest with R. B. Corp.
UA/ASV 04.12.98 T1ALTFinal.DOC
11.3.3 Open Exciter Diode

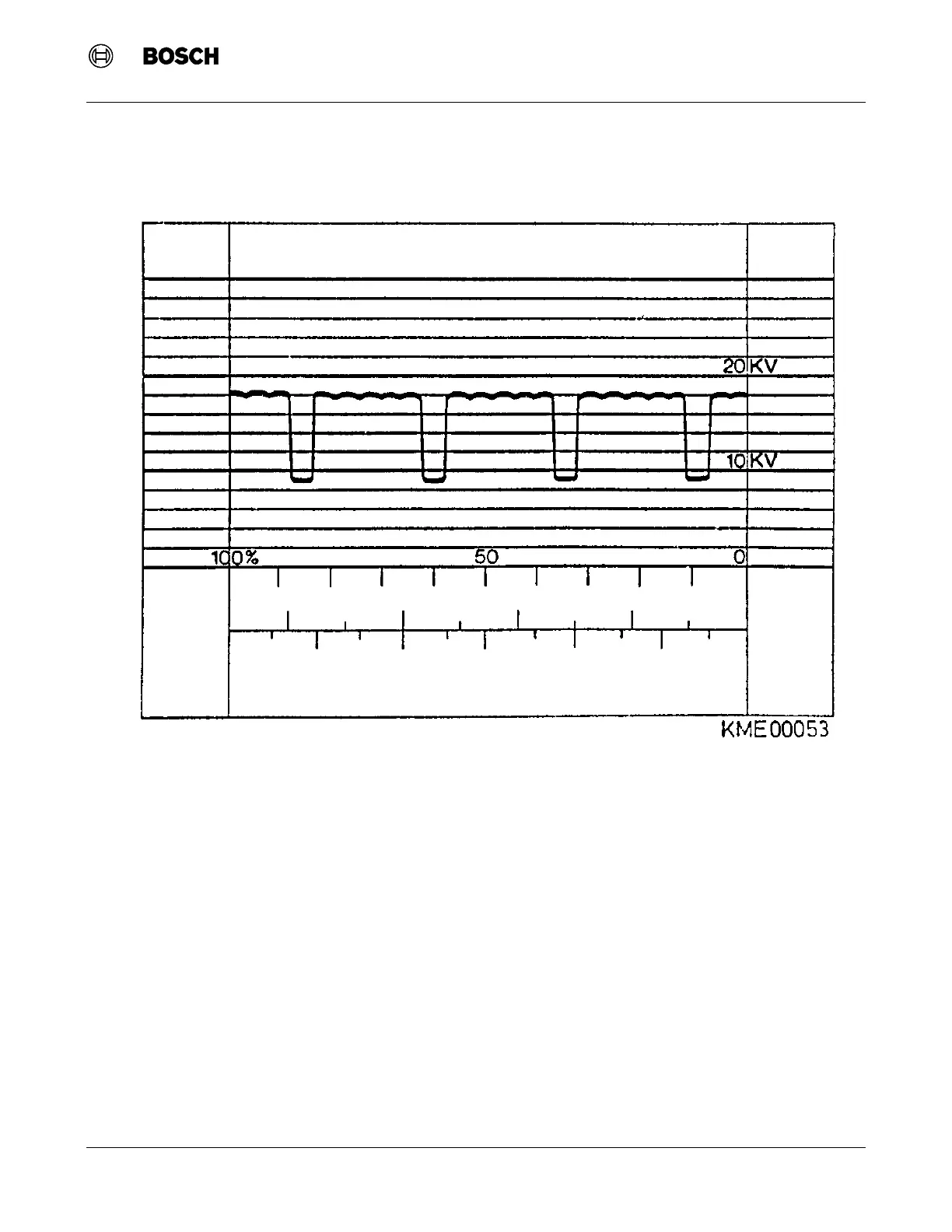

This pattern displays a characteristic dip in the normally smooth wave characteristic of a defective exciter
diode. This would require disassembly of the alternator and replacement of the rectifier assembly.
Figure 41 Open Exciter Diode
