PROCEDURE NO: PR060034
REVISION 4
Page 13 of 15

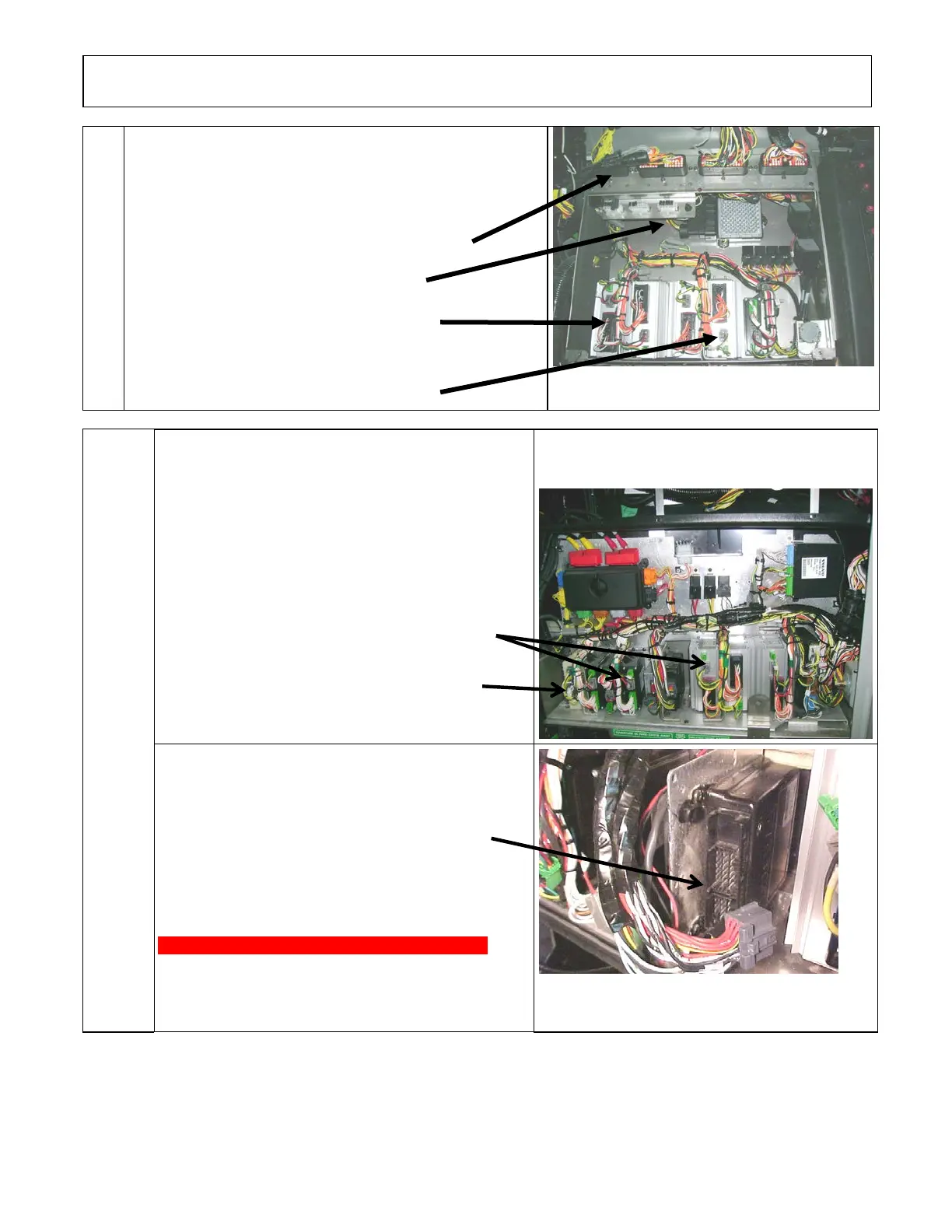

Location: Rear Junction Box
Disconnect the electronic modules:
2.15
Disconnect all I/O A and I/O B modules
Disconnect C397
Disconnect transmission module (A1)
Disconnect 3 connectors from each I/O B
Disconnect 3 connectors from each I/O A
Location: Front Electrical Compartment
Disconnect I/O A, I/O B, ABS, master ID, CECM,
CPC, keyless modules and also disconnect
connector C92.
Disconnect 3 connectors from the I/O B and
I/O A modules
Disconnect connectors from Keyless module
2.20
Disconnect 2 connectors from ABS module
To Next Page
