Section 01: ENGINE
PA1562
6

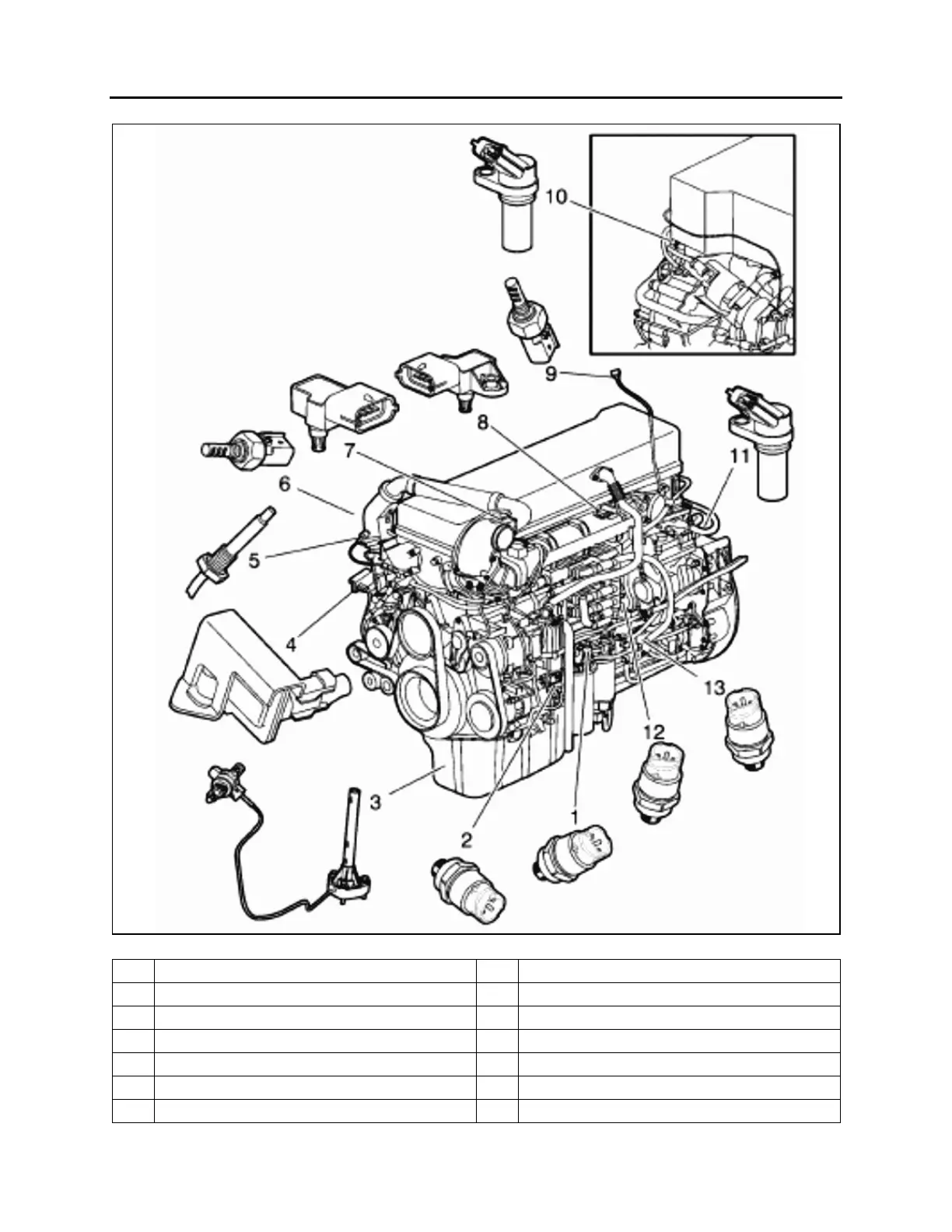

FIGURE 1: ENGINE SENSORS LOCATION
1 Fuel Pressure 8 Air Temperature
2 Crankcase Pressure 9 Humidity/Ambient Air Temperature
3 Oil Level/Temperature 10 Camshaft Speed
4 EGR Differential Pressure 11 Crankshaft Speed
5 EGR Temperature 12 Oil Pressure
6 Coolant Temperature 13 AFI Fuel Pressure
7 Boost Pressure
