PREVOST X3-45 Multiplex User Manual

Page No.14
NDS2 issue A
Spicer SpecialityAxle Division - Technical Publications
© Spicer Speciality Axle Division
PART N
O
----
DESCRIPTION ----------------------------------- TIGHTENING TORQUE
6 ------- Swivel top cap ------------------------------------- 25 - 75 lbs.ft ----------34 - 102 NM -------- (All axles)
7 ------- Swivel top cap lubricator ----------------------- 10 - 15 lbs.ft ----------14 - 20 NM ---------- (All axles)
9 ------- Top lever bolts M20 x 2.5 grade 10.9 ------- 433 - 479 lbs.ft -------587 - 649 NM ------- (NDS 35/41/56)
-------- Top lever bolts M20 x 2.5 grade 12.9 ------- 520 - 575 lbs.ft -------705 - 780NM ------- (NDS 56)
-------- Top lever bolts M24 x 3 grade 10.9---------- 751 - 830 lbs.ft -------1018 - 1125 NM --- (NDS 80)
12 ------ Cotter pin nut 1/2" UNF ------------------------- 51 - 61 lbs.ft ----------69 - 82 NM ---------- (All axles)
21 ------ Lockstop nut --------------------------------------- 90 - 120 lbs.ft --------122 - 162 NM ------- (All axles)
22 & 23 --- Bottom lever bolts M20 x 2.5 grade 10.9 --- 433 - 479 lbs.ft -------587 - 649 NM ------- (NDS 35/41/56)
-------- Bottom lever bolts M20 x 2.5 grade 12.9 --- 520 - 575 lbs.ft -------705 - 780NM ------- (NDS 80)
-------- Bottom lever bolts M24 x 3 grade 10.9 ----- 751 - 830 lbs.ft -------1018 - 1125 NM --- (NDS 80)
25 ------ Ball pin nut (F4845T assembly) -------------- 155 - 170 lbs.ft -------210 - 230 NM ------- (All axles)
-------- Ball pin nut (F4109T assembly) -------------- 184 - 206 lbs.ft -------249 - 279 NM ------- (All axles)
-------- Ball pin nut (F4779S assembly) -------------- 100 - 170 lbs.ft -------135 - 230 NM ------- (All axles)
-------- Ball pin nut (F4897S assembly) -------------- 190 - 220 lbs.ft -------257 - 298 NM ------- (All axles)
28 ------ Socket pinch bolt (F4845T assembly) ------ 33 - 37 lbs.ft ----------45 - 50 NM ---------- (All axles)
-------- Socket pinch bolt (F4109T assembly) ------ 52 - 59 lbs.ft ----------70 - 80 NM ---------- (All axles)
-------- Socket pinch bolt (F4779S assembly) ------ 65 - 75 lbs.ft ----------88 - 102 NM -------- (All axles)
-------- Socket pinch bolt (F4897S assembly) ------ 118 - 155 lbs.ft -------160 - 210 NM ------- (All axles)
30 ------ Swivel bottom cap lubricator ------------------ 10 - 15 lbs.ft ----------14 - 20 NM ---------- (All axles)
31 ------ Swivel bottom cap -------------------------------- 25 - 75 lbs.ft ----------34 - 102 NM -------- (All axles)
38 ------ Hub nut --------------------------------------------- 350 - 400 lbs.ft -------475 - 542 NM ------- (NDS 35/41/56)
-------- Hub nut --------------------------------------------- 575 - 626 lbs.ft -------778 - 849 NM ------- (NDS 80)

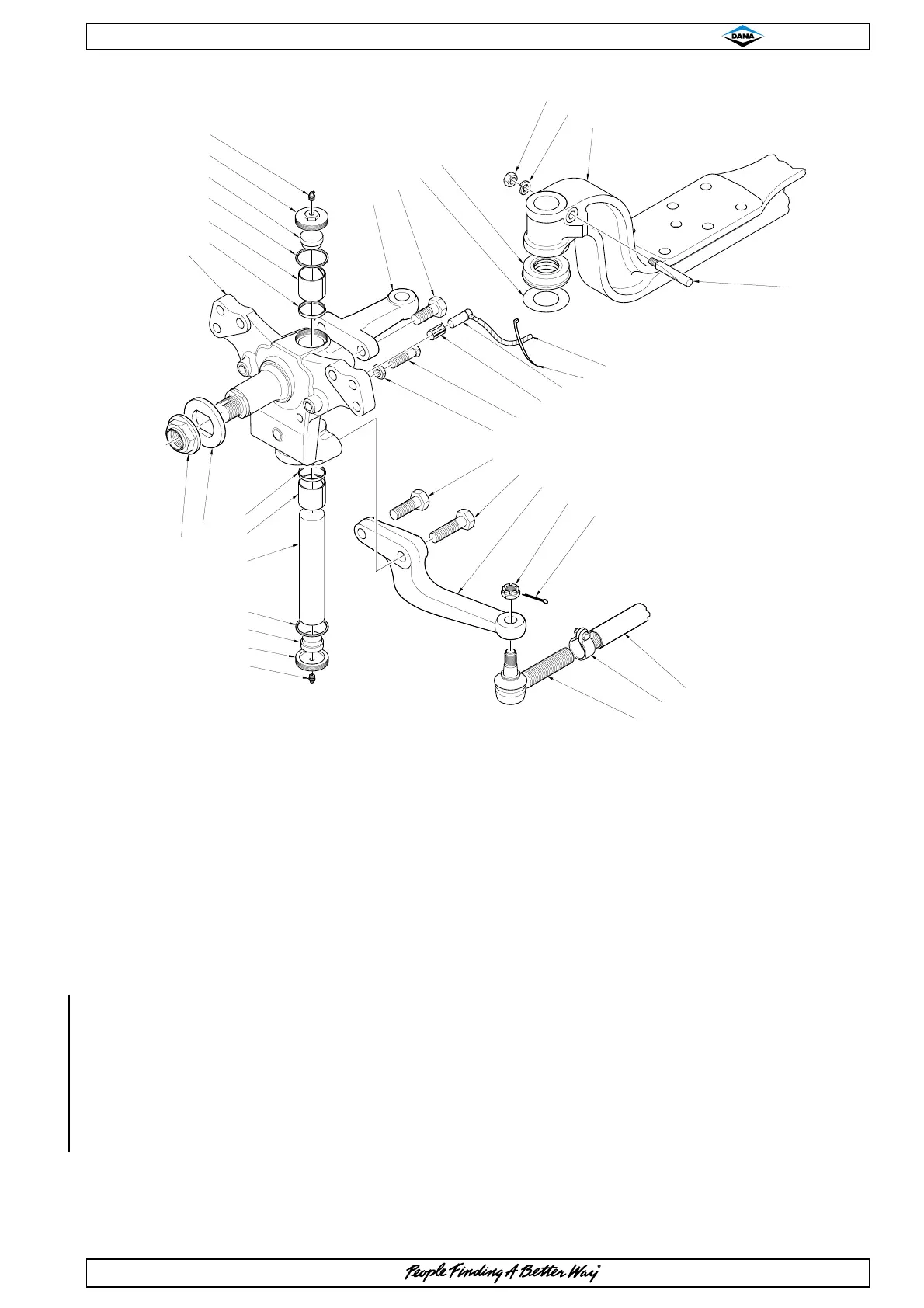

SWIVEL / AXLE BED TIGHTENING TORQUES
Fig.No.18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
38
30
31
32
33
34
35
36
37
B
