PREVOST X3-45 Multiplex User Manual

Section 11: REAR AXLES
PA1562
6
NOTE
For an accurate alignment, the tag axle must be aligned with the drive axle.
NOTE
Reinstall wheel mount sensors as shown in figure 8.
• Adjust tag axle according to specifications' chart below in reference with drive axle.
TAG AXLE
ALL VEHICLES
Alignment / value Minimum value Nominal value Maximum value
Parallelism (deg.) -0.02 0 0.02
Total Toe (deg.) 0.18 Toe-in 0 0.18 Toe-out

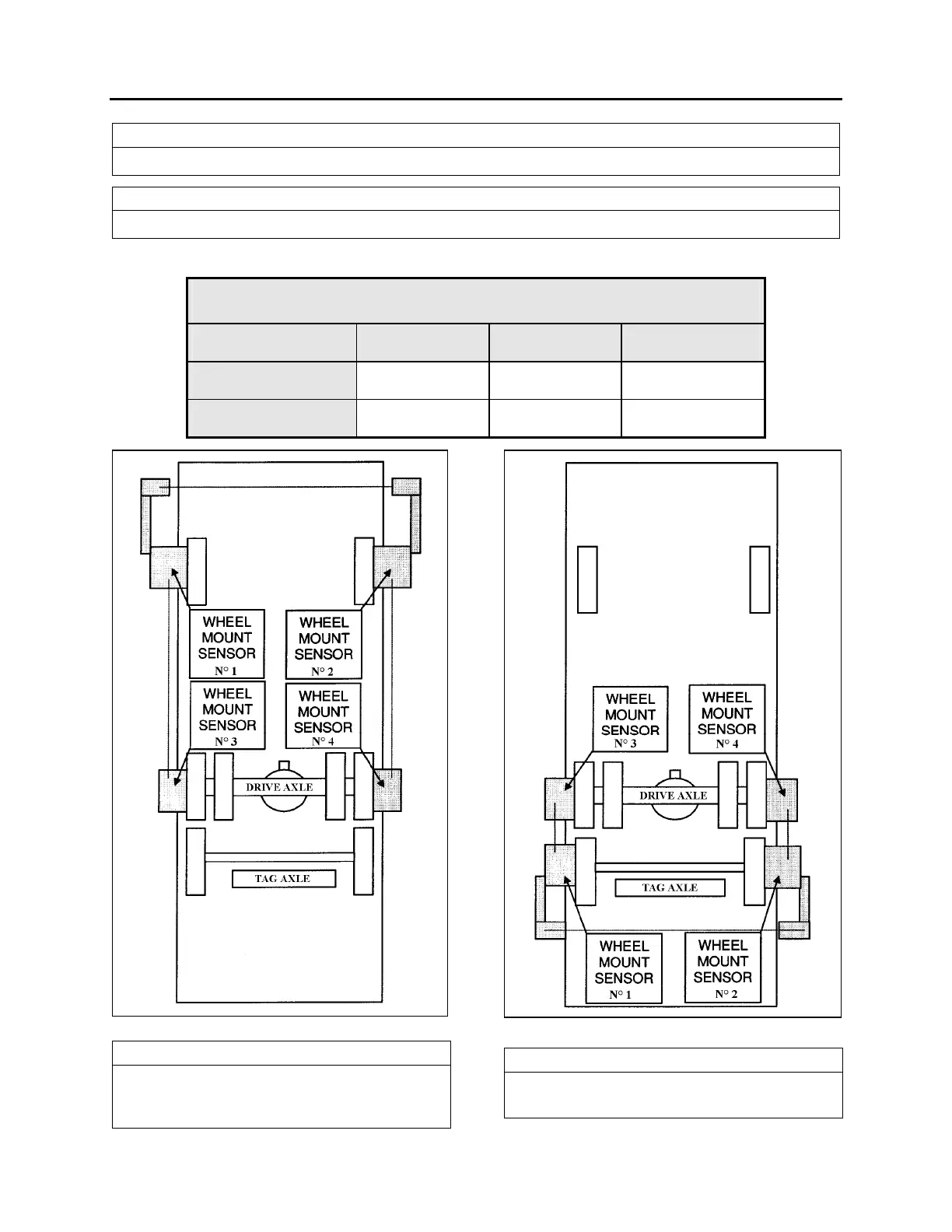

FIGURE 7: FRONT & DRIVE AXLE ALIGNMENT 11025
FIGURE 8: TAG AXLE ALIGNMENT
11026
NOTE
Refer to Section 16, "Suspension", for proper
torque tightening of the longitudinal radius rod
support nuts.
NOTE
When the drive alignment is changed, the tag
alignment must also be adjusted.

PREVOST X3-45 Multiplex Specifications

General

Length	45 ft
Width	102 in
Engine	Volvo D13
Horsepower	500 hp
GVWR	54, 000 lbs
Height	146 in
Sleeping Capacity	Varies based on floor plan
Water Capacity	Varies based on floor plan
