PREVOST X3-45 Multiplex User Manual

DRYest Air Dryer
Inst
allation and Maintenance
L31166
9/02
The Haldex DRYest is a desiccant type dryer that effectively removes moisture, oil and contaminants from the
compressed air system. This reduces the risk of freezing or corrosion of the components in the air system.
When compressor cut-out is reached, dry air is allowed to flow back to regenerate the desiccant bed. The SIX
(6) different applications available for the DRYest are illustrated on the next page.

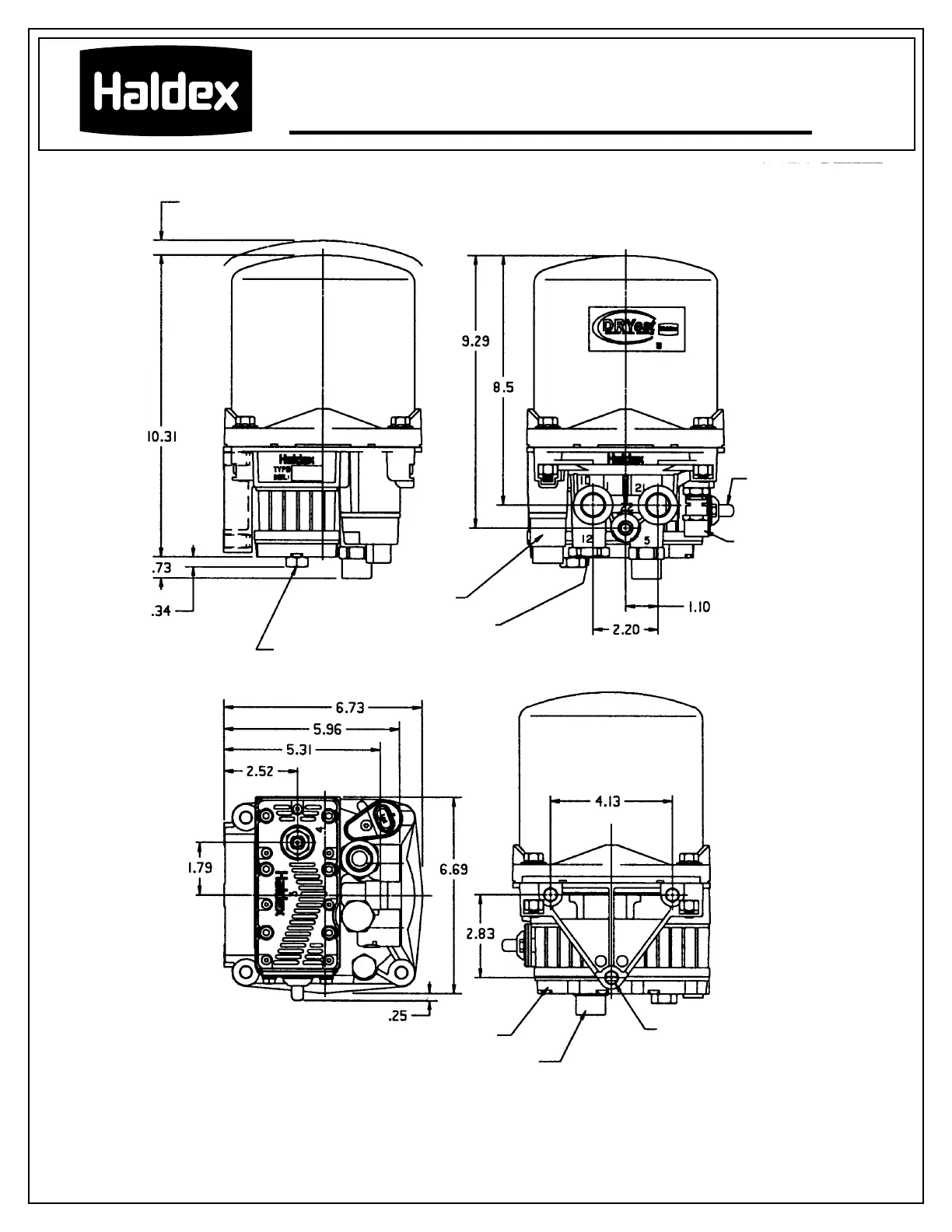

.5 space for cartridge change
Heater 12V & 24V
Turbo Protection Valve
Port 4 Control
1/4 -18 NPTF
Port 22 Regeneration
Reservoir 1/4-18 NPTF
Port 1, 21 Inlet,
Outlet 1/2-14 NPTF
Safety Valve
Governor
Valve
Silencer
Regeneration Valve
Chassis Mount
3X 1/2-13 UNC-2B
