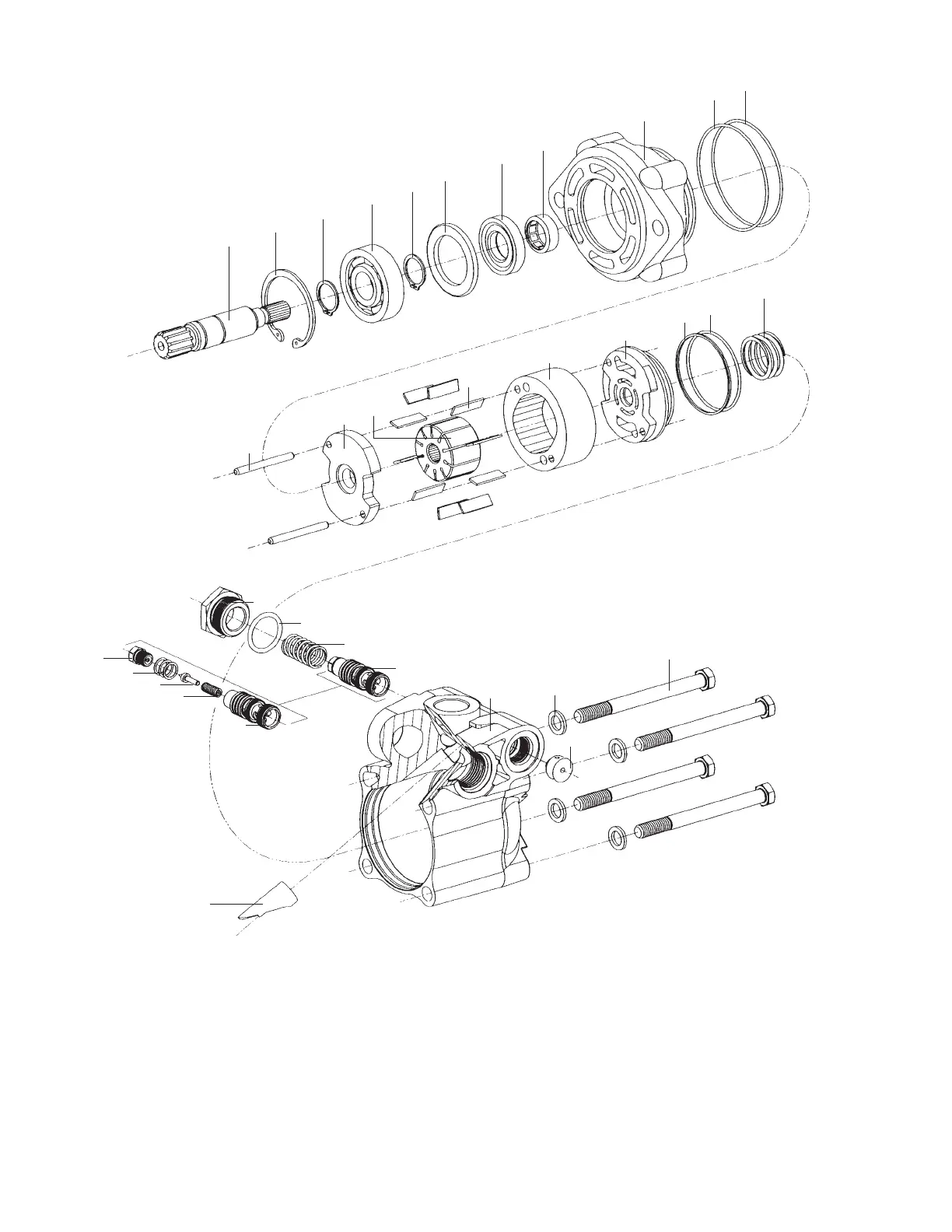

PS Series Exploded View -- Typical
1 Housing
2 Boost tube
3 Orifice
4 Bolts
5 Washers
6 Valve spool assembly
6A Spool
6B Spring
6C Poppet
6D Shims
6E Relief valve seat assembly
7 Spring
8 O-ring
9 Plug
10 Spring
11 O-ring
12 Backup ring
13 Top plate
14 Cam ring
15 Vanes
16 Rotor
17 Bottom plate
18 Locating pins
19 O-ring
20 O-ring
21 Cover
22 Needle bearing
23 Shaft seal
24 Spacer
25 Retaining ring (2)
26 Ball bearing
27 Retaining ring
28 Input shaft
7
19
20
21
22
23
24
25
26
25
27
28
18
17
16
15
14
13
12
11
10
9
8
6
1
5
3
4
2
6E
6D
6C
6B
6A

PREVOST X3-45 Multiplex Specifications

General

Length	45 ft
Width	102 in
Engine	Volvo D13
Horsepower	500 hp
GVWR	54, 000 lbs
Height	146 in
Sleeping Capacity	Varies based on floor plan
Water Capacity	Varies based on floor plan
