Section 16: SUSPENSION
PA1562
24

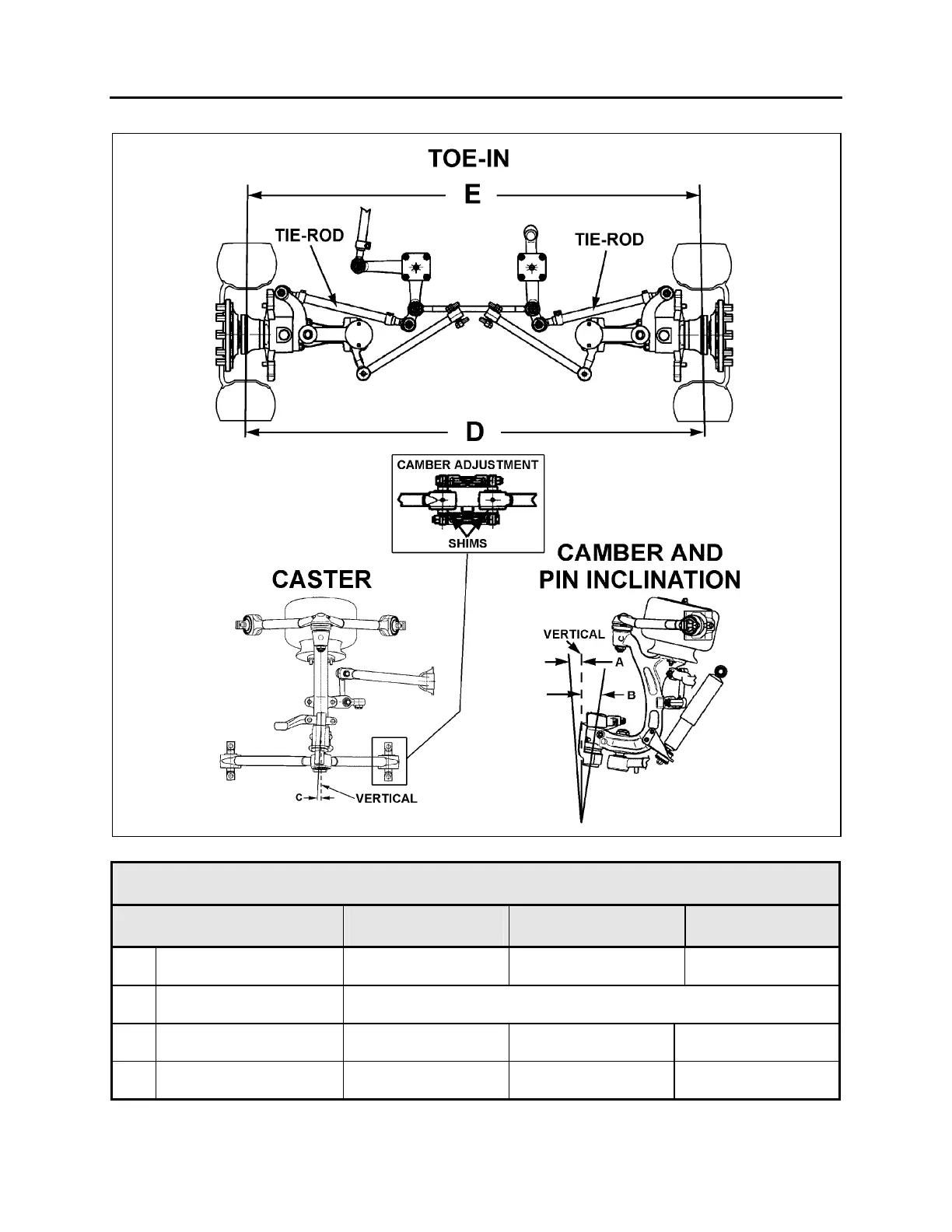

FIGURE 30: FRONT END ALIGNMENT DIAGRAM 16134
ALIGNMENT SPECS (See Figure 30)
Minimal Nominal Maximal
A WHEEL CAMBER 0.0 0.150 0.35
B KING PIN INCLINATION 8° (not adjustable)
C CASTER 2.35 2.6 2.85
D-E TOTAL TOE 0.06 0.08 0.10
