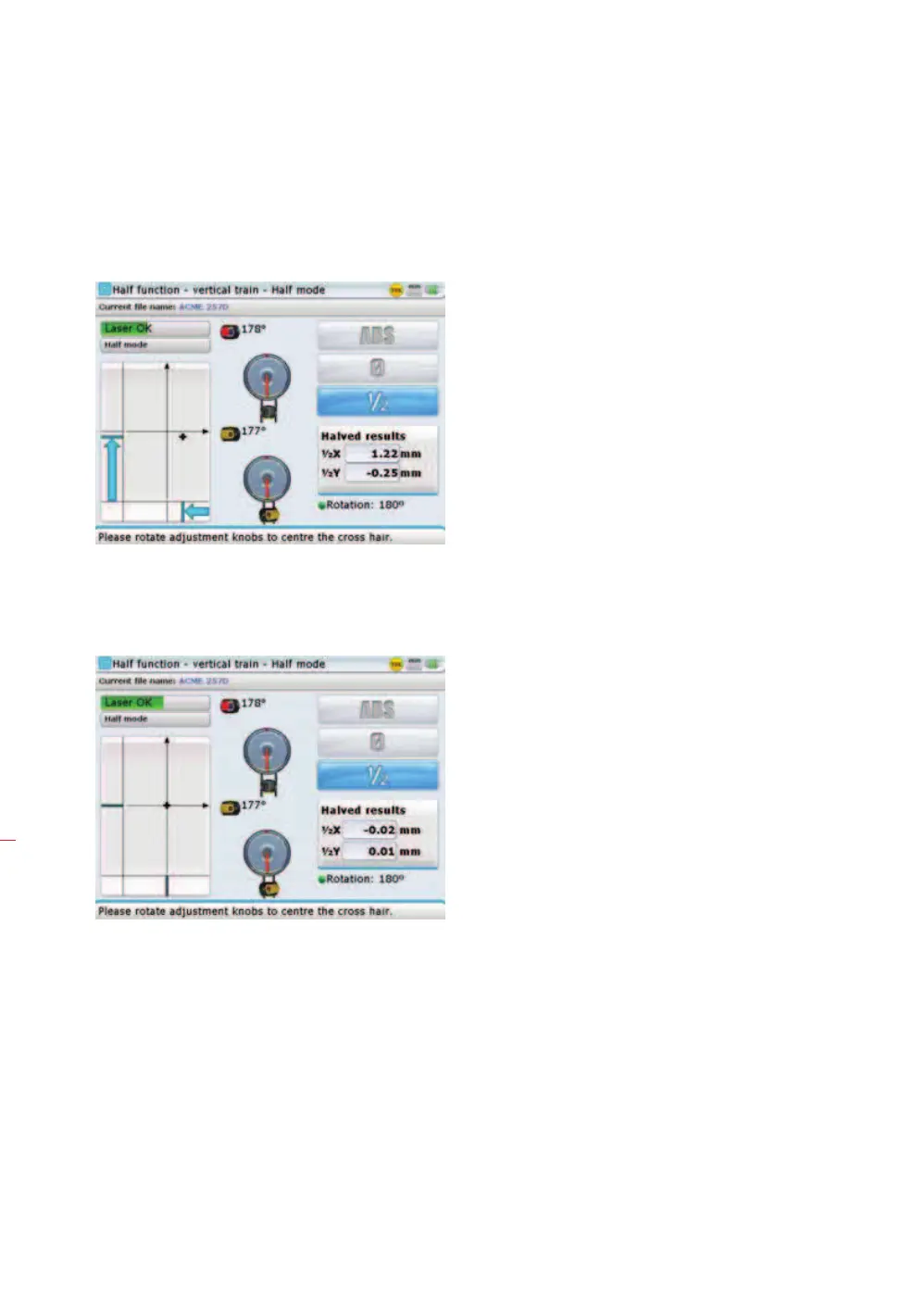

5. Use the navigation keys and highlight the ‘1/2’ half function icon, then press e
to confirm selection.
6. Now use the two yellow sensALIGN laser beam position thumbwheels to
position the cross hair at the centre of the two axes. The displayed 1/2 X and 1/2
Y results should be as near 0.0 as possible
7. After attaining the required 1/2X and 1/2Y values [as near 0.0 mm as possible],
the laser is now on the shaft axis. Press
ß to proceed with actual shaft
alignment measurements.
Note that the documented
1/2 X and 1/2 Y values
correspond to half the ∆X
and ∆Y values recorded
previously.
