PRÜFTECHNIK ROTALIGN Ultra iS User Manual

161

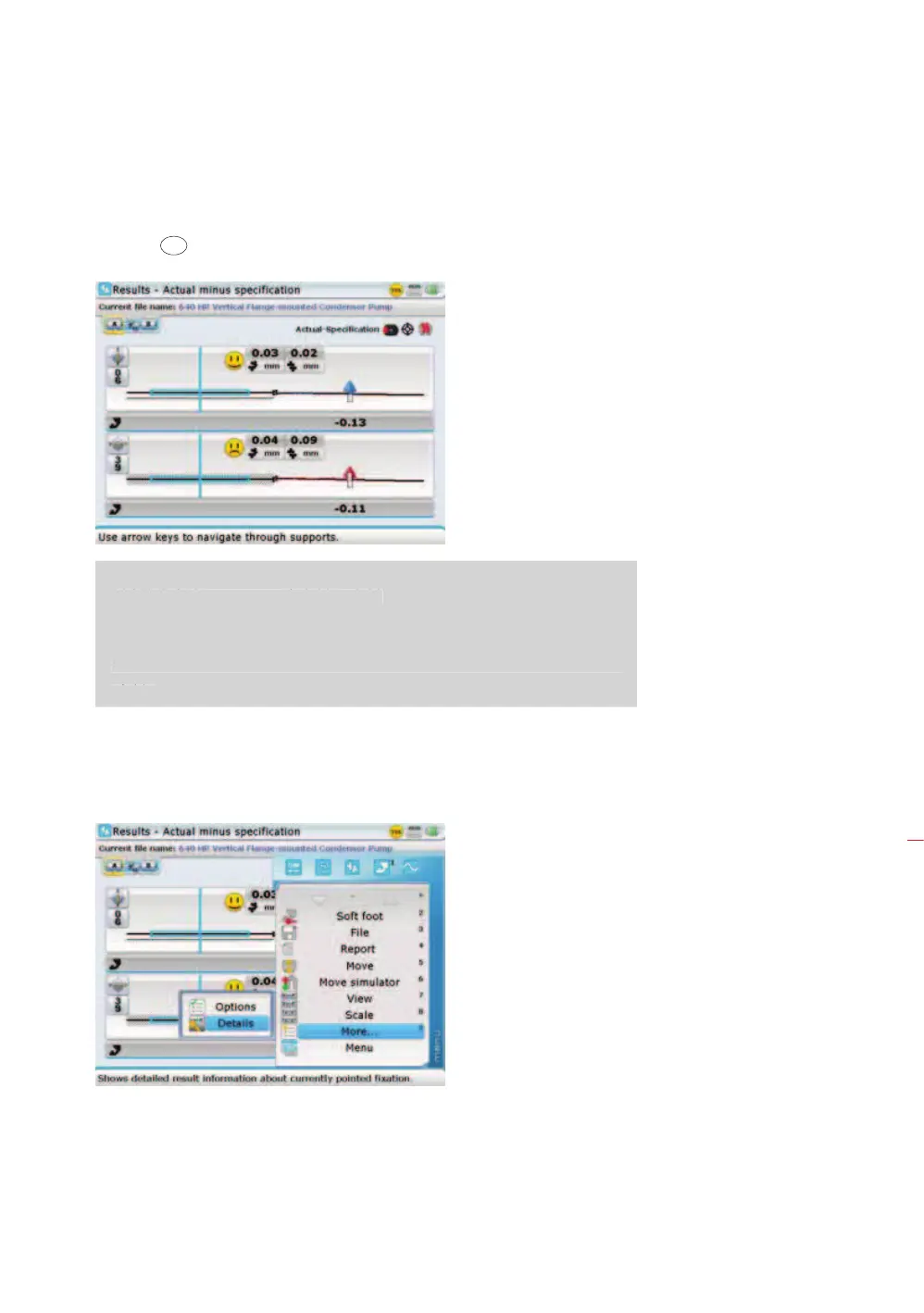

6.3.5 Results
1. Press
RES
to evaluate results.
Sign convention
POSITIVE GAP opens towards 0:00 or 3:00
POSITIVE OFFSET if the top machine is towards 0:00 or 3:00
Remember, viewpoint is always determined by looking from the sensor towards
the laser emitter. Note the little white clock face on the laser serves as a reminder
of this.
2. Use the “Results” screen sub menu item ‘Details’ to view the shimming
corrections for each flange bolt. Press
q while in the results screen then use
the navigation keys to highlight the submenu item ‘Details’.
3. With ‘details’ highlighted, press
e to confirm selection. The “Flange
corrections” screen appears.
The results screen shows the
coupling gap and coupling
offset in the 0-6 and 3-9
directions. Offset corrections
in the side and top view are
also shown.
In this example, the 0-6
correction indicates moving
the flange by 0.13 mm
towards 0:00 and by 0.11
mm towards 3:00.
The screen values represent
POSITION.
S
i
gn convent
i
on
POSITIVE GAP o
p
ens towards 0:00 or 3:00
POSITIVE OFFSET i
f
the to
p
machine is towards 0:00 or 3:00
Remember, viewpoint is alwa
y
s determined b
y
lookin
g
f
rom the sensor towards
the laser emitter. Note the little white clock face on the laser serves as a reminder
o
f
this.
Note
Flanged machines
