51
The displayed menu items perform the following functions:
› Tolerances list – used to display tolerance tables based on coupling type and
preferred electrical frequency (50 or 60 Hz.)
› View tolerance – displays the coupling tolerance details
› Max values – used to specify individual tolerances

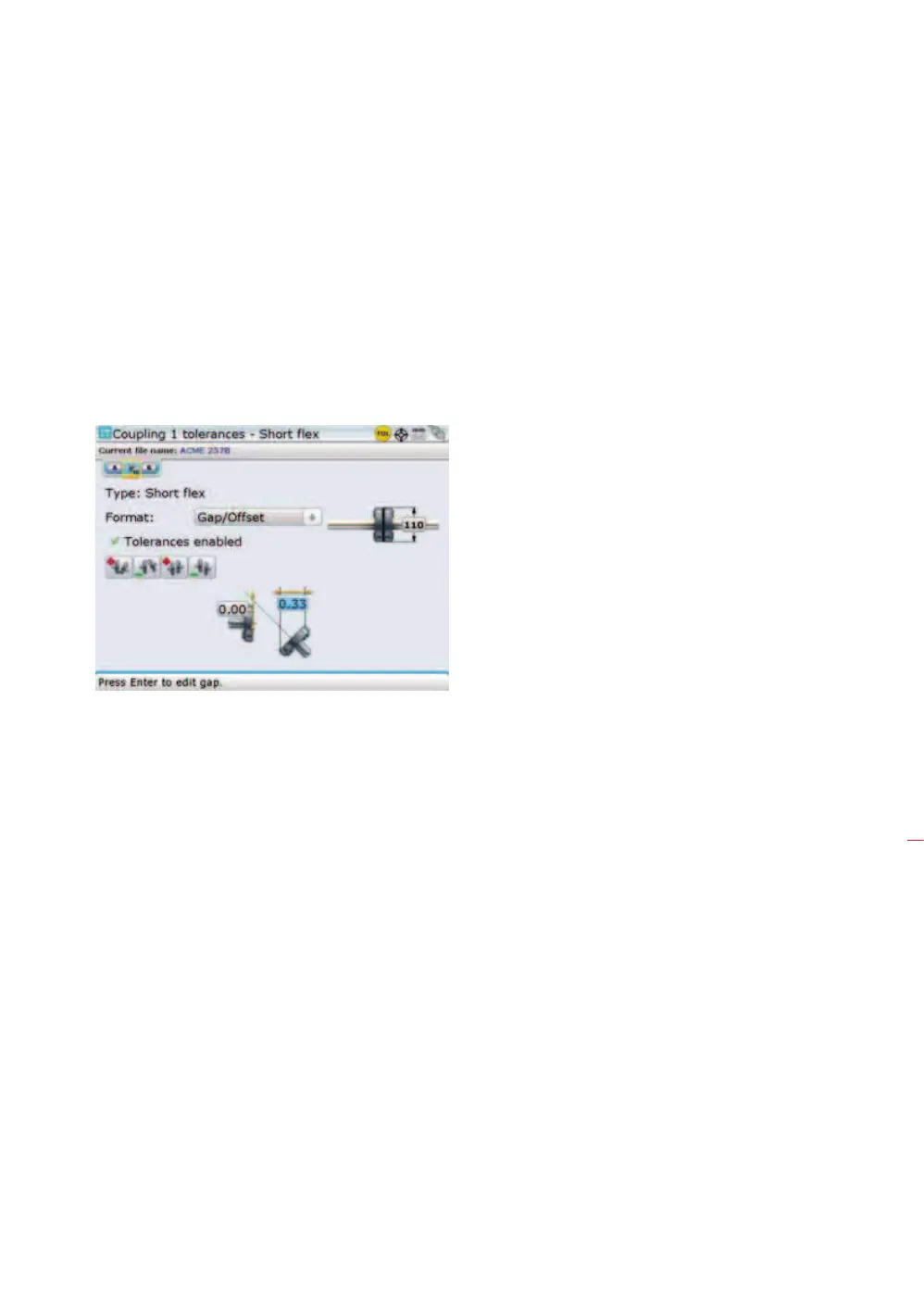

Use the context menu item ‘Max values’ to access the coupling tolerance screen used
to enter maximum tolerance values.
Use the navigation keys to highlight the ‘Format’ box. Access the drop down menu by
pressing
e. Use f/g to highlight the required format, confirming selection
by pressing
e or ß. Using the navigation keys proceed to highlight the respective
value box and enter maximum tolerance values with the data entry keys directly.
The values entered above are independent of rpm. When these values are enabled,
they override the system tolerance table.
After machine and coupling properties have been entered, use
ß to return to the
set-up screen.
Horizontal shaft alignment
