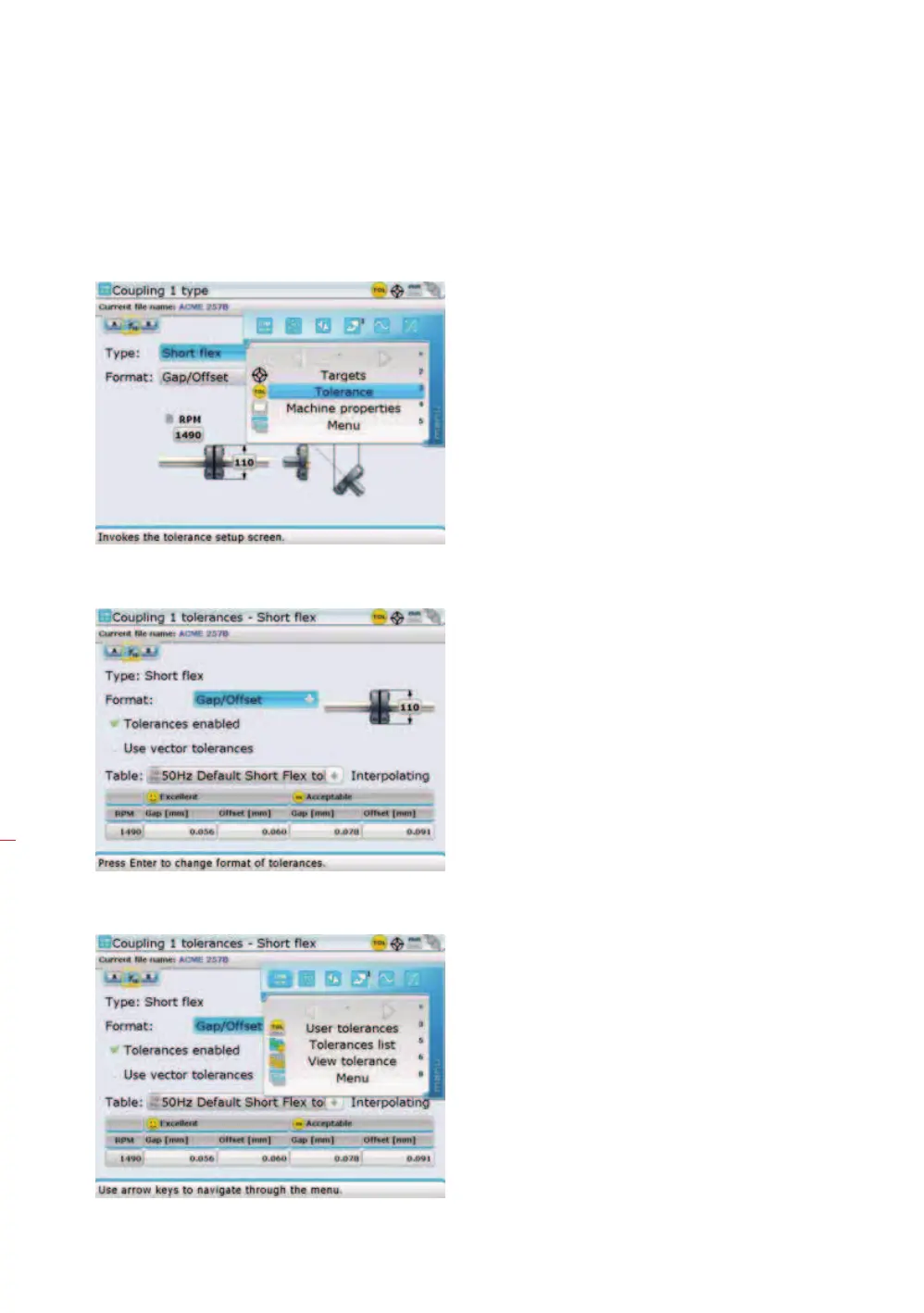

The context menu to the coupling type screen discussed previously has in addition to
the menu item ‘Targets’, also ‘Tolerance’ and ‘Machine properties’.
The menu item ‘Tolerance’ is used to display the system tolerance table.
Pressing
q while in ‘Coupling tolerances’ reveals the context menu shown below.
Press 3 to display
the system tolerance
table. Alternatively,
highlight ‘Tolerance’ using
f/g and confirm
selection by pressing
e.
The menu item ‘Machine
properties’ is used to access
the machine properties
dialog screen.
The displayed tolerance
values are dependent upon
coupling format, frequency
and rpm. These parameters
may be selected from the
two drop down menus and
the rpm edited directly.
Note: The item ‘Use vector
tolerances’ is not available
in the standard level.
