Alteon Application Switch Operating System Application Guide
Persistence
Document ID: RDWR-ALOS-V2900_AG1302 597
• Session IDs are kept on Alteon until an idle time equal to the configured server timeout (a
default of 10 minutes) for the selected real server has expired.
Figure 96 - SSL Session ID-Based Persistence, page 597
illustrates persistence based on the SSL
session ID, as follows:
1. An SSL Hello handshake occurs between Client 1 and Server 1 via Alteon.
2. An SSL session ID is assigned to Client 1 by Server 1.
3. Alteon records the SSL session ID.
4. Alteon selects a real server based on the existing SLB settings. As a result, subsequent
connections from Client 1 with the same SSL session ID are directed to Server 1.

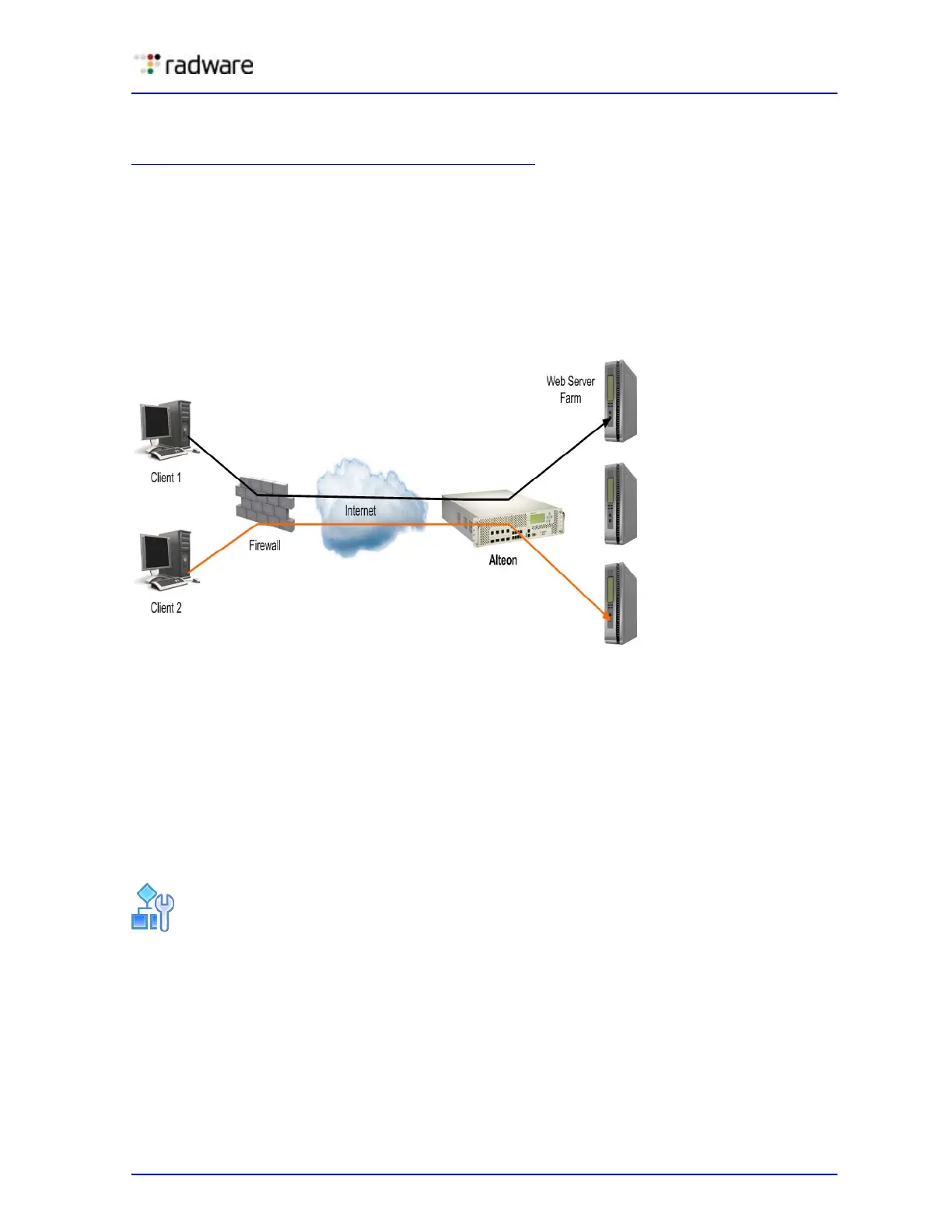

Figure 96: SSL Session ID-Based Persistence
5. Client 2 appears to have the same source IP address as Client 1 because they share the same
proxy firewall.
However, Alteon does not direct Client 2 traffic to Server 1 based on the source IP address.
Instead, an SSL session ID for the new traffic is assigned. Based on SLB settings, the connection
from Client 2 is spliced to Server 3. As a result, subsequent connections from Client 2 with the
same SSL session ID are directed to Server 3.
Configuring SSL Session ID-Based Persistence
The following is an example procedure for configuring SSL session ID-based persistence.
To configure session ID-based persistence for a real server
1. Configure real servers and services for basic SLB:
— Define each real server and assign an IP address to each real server in the server pool.
— Define a real server group and set up health checks for the group.
— Define a virtual server on the virtual port for HTTPS (for example, port 443), and assign a
real server group to service it.
— Enable SLB.
— Enable client processing on the port connected to the client.
