Alteon Application Switch Operating System Application Guide
High Availability
Document ID: RDWR-ALOS-V2900_AG1302 555
— Synchronization configuration:
Active-Standby Configuration

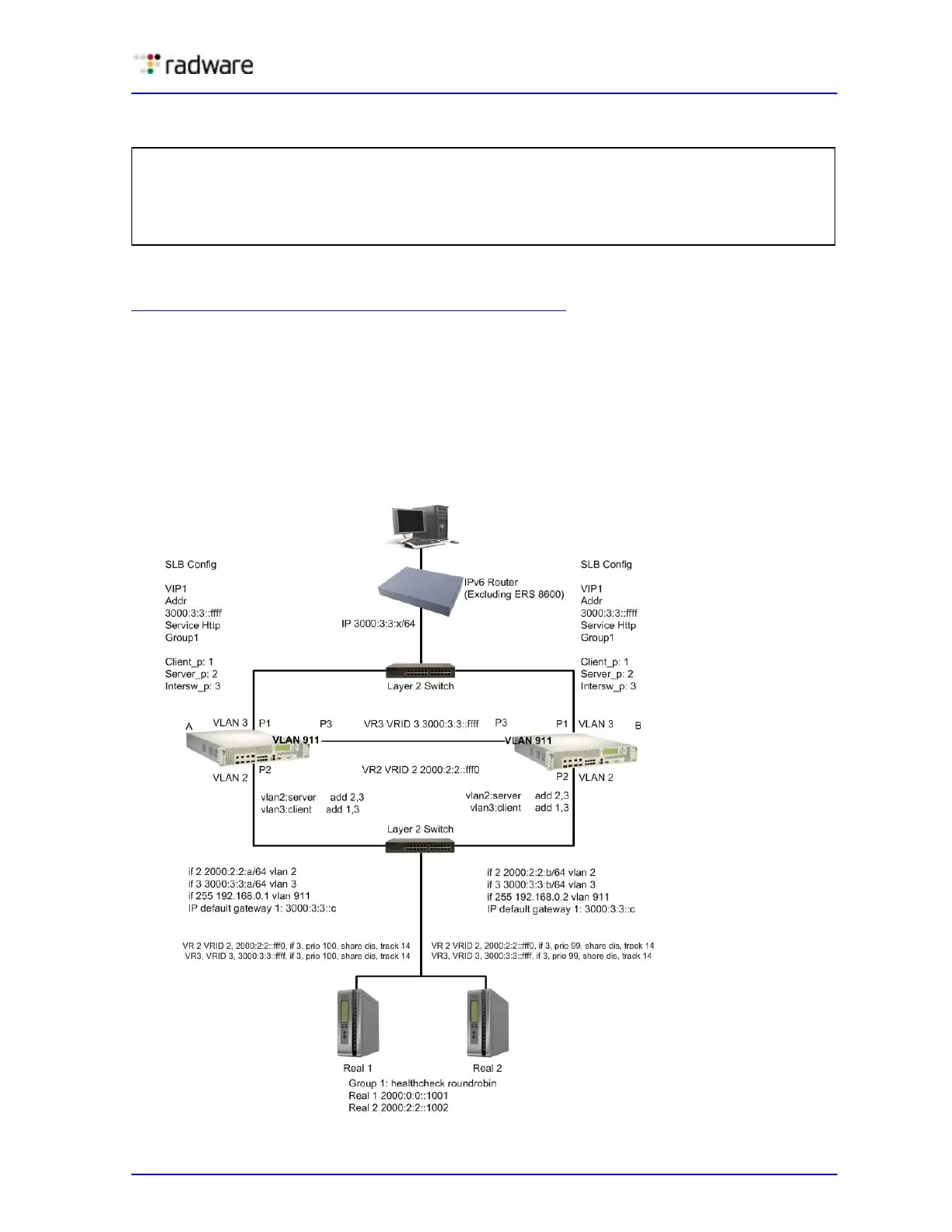

Figure 83 - Active-Standby Configuration Example, page 555 illustrates an active-standby
configuration between two Alteon units. The following are considerations for a IPv6 active-standby
configuration:
• Layer 2 (port and VLAN) configuration:
— Each VLAN must be configured per interface.
• Layer 3 interface and VRRP configuration:
— In this example, tracking is performed by Layer 4 ports so that the two virtual routers fail
over when one of the master virtual routers declares itself as the backup.
Figure 83: Active-Standby Configuration Example
/cfg/slb/sync
prios d
/cfg/slb/sync/peer 1
ena
addr 192.168.0.1
