Alteon Application Switch Operating System Application Guide

Server Load Balancing

212 Document ID: RDWR-ALOS-V2900_AG1302

IPv6 to IPv6 Server Load Balancing

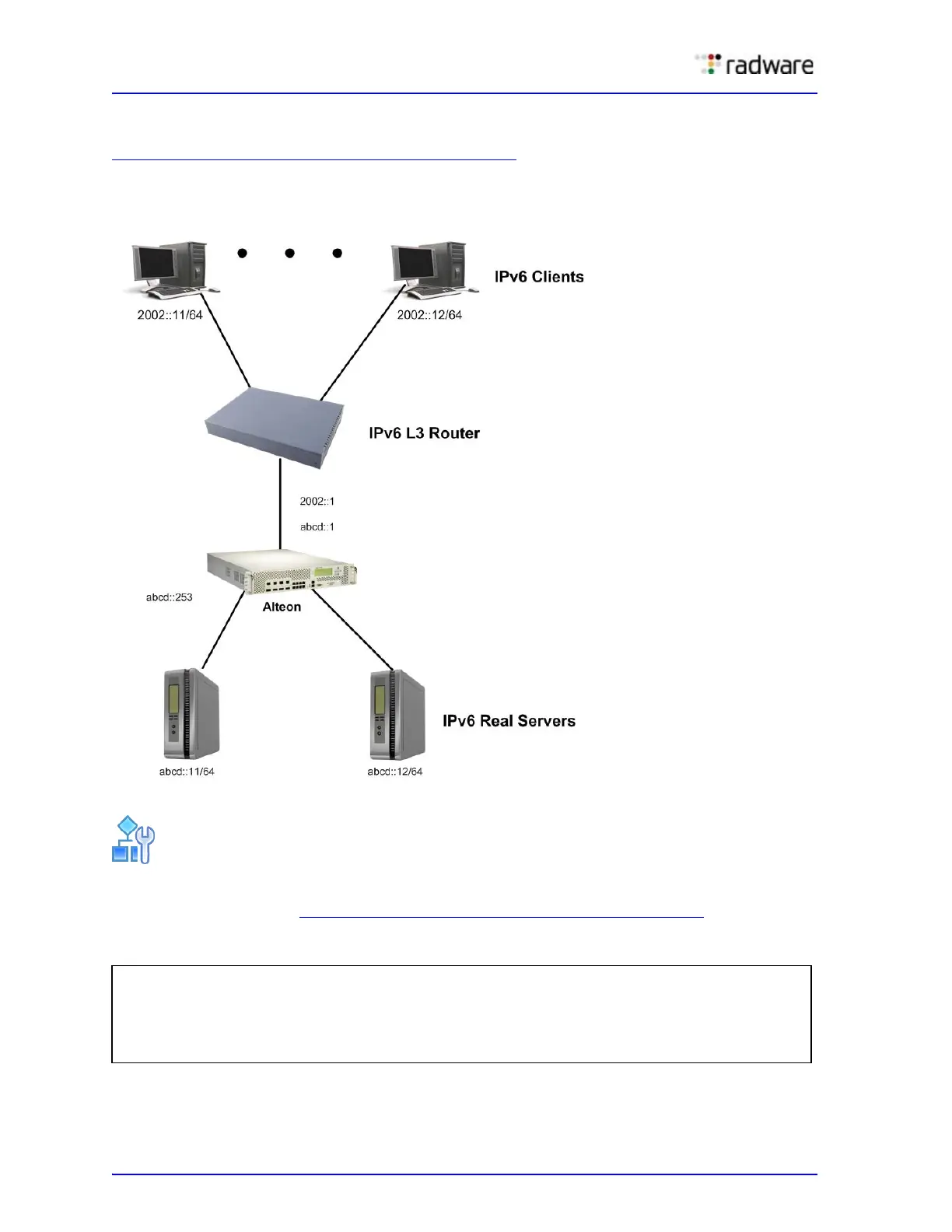

Figure 38 - IPv6 to IPv6 Layer 4 SLB Example, page 212 illustrates SLB between IPv6 clients and

IPv6 servers:

Figure 38: IPv6 to IPv6 Layer 4 SLB Example

To configure IPv6 support for load balancing IPv6 real servers

This procedure references Figure 38 - IPv6 to IPv6 Layer 4 SLB Example, page 212.

1. Configure the IPv6 network interface.

>> Main# /cfg/l3/if 1>

> Interface 1# ena

>> Interface 1# ipver v6

>> Interface 1# addr abcd:0:0:0:0:0:0:253

>> Interface 1# mask 64

Default Chapter3
