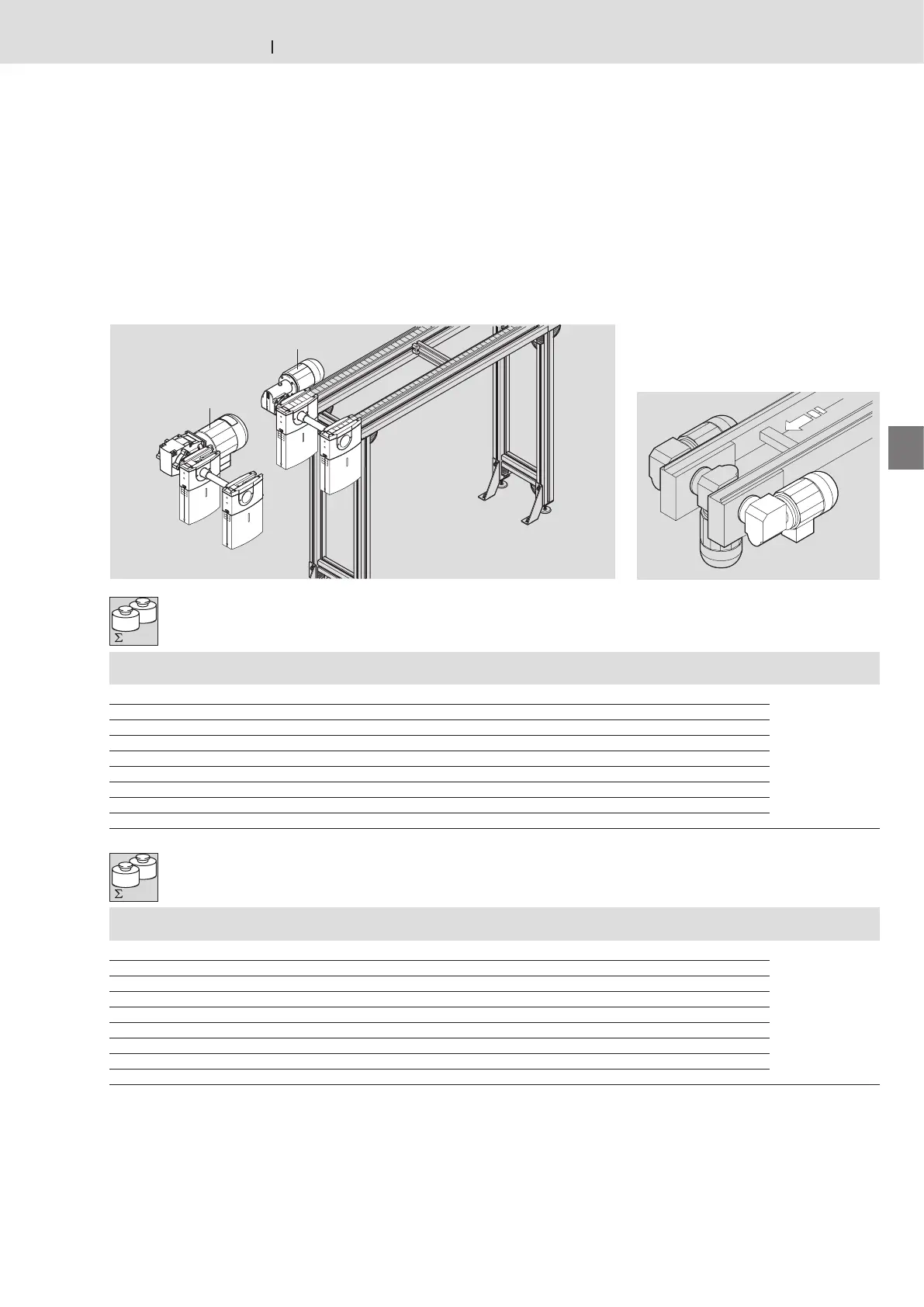

Bosch Rexroth AGTS 2plus 4.2 3–35
AS 2/C-100
AS 2/C-250
00012872
b
1)
v
N
2)
U, f AT MA Nr./No./N°
[mm] [m/min]   11-122
160 0; 6; 9; 12; 15; 18 S; K R; L 3 842 998 053
240 0; 6; 9; 12; 15; 18 S; K R; L; M b = … mm
320 0; 6; 9; 12; 15; 18 S; K R; L; M v
N
= … m/min
400 0; 6; 9; 12; 15; 18 S; K R; L; M U = … V
480 0; 6; 9; 12; 15; 18 S; K R; L; M f = … Hz
640 0; 6; 9; 12; 15; 18 S; K R; L; M AT = …
800 0; 6; 9; 12; 15; 18 S; K R; L; M MA = …
1040 0; 6; 9; 12; 15; 18 S; K R; L; M
160-1040 0; 6; 9; 12; 15; 18 S; K R; L; (M)
b
1)
v
N
2)
U, f AT MA Nr./No./N°
[mm] [m/min]   11-122
160 0; 6; 9; 12; 15; 18 S; K R; L 3 842 998 087
240 0; 6; 9; 12; 15; 18 S; K R; L b = … mm
320 0; 6; 9; 12; 15; 18 S; K R; L v
N
= … m/min
400 0; 6; 9; 12; 15; 18 S; K R; L U = … V
480 0; 6; 9; 12; 15; 18 S; K R; L f = … Hz
640 0; 6; 9; 12; 15; 18 S; K R; L AT = …
800 0; 6; 9; 12; 15; 18 S; K R; L MA = …
1040 0; 6; 9; 12; 15; 18 S; K R; L
160-1040 0; 6; 9; 12; 15; 18 S; K R; L
M
MA = L
R
00116761.eps
100 kg
250 kg
Längstransport · Longitudinal conveyor · Transport longitudinal
3 842 531
138 (2013-06)
Antriebsstation AS 2/C-100
AS 2/C-100 drive module
Poste d’entraînement AS 2/C-100
Antriebsstation AS 2/C-250
AS 2/C-250 drive module
Poste d’entraînement AS 2/C-250
1)
b = Spurbreite in Transportrichtung
2)
v
N
= Nenngeschwindigkeit;
v
N
= 0: ohne Motor und ohne Getriebe
Sonderausführungen auf Anfrage
1)
b = Track width in direction of transport
2)
v
N
= Nominal transportation speed;
v
N
= 0: without motor or gear
Special models on request
1)
b = Ecart. de voie en direction du transport
2)
v
N
= Vitesse nominale de transport ;
v
N
= 0 : sans moteur et sans engrenage
Versions spéciales sur demande
MA = Motoranordnung
MA = Motor layout
MA = Disposition du moteur
