111 • Replacing or Recharging the Batteries GX-6000 Operator’s Manual
If using a DC powered charging station, plug the 12 VDC vehicle plug
adapter into a vehicle’s 12 VDC power socket.

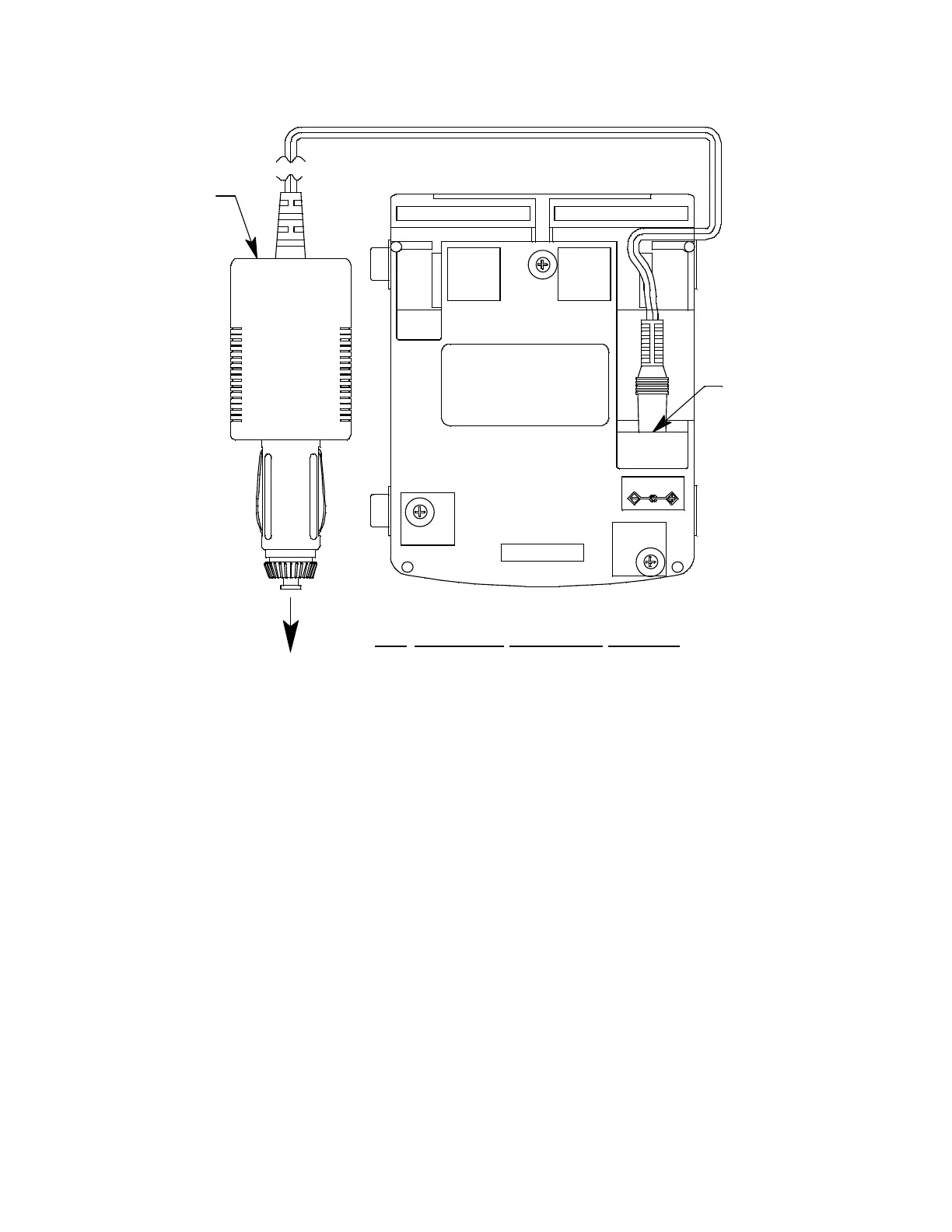

Figure 17: Connecting the Charging Station’s DC Adapter
The construction of the charging stations allows them to be chained
together but a separate adapter must be used for each charging station.
One adapter will not operate more than one charging station.
4 . Place the GX-6000 into the battery charging station as shown in Figure
18 below so that the metal contacts on the back of the unit come into
contact with the metal contacts on the back of the holder in the charging
station. When proper contact has been made, the red LED on the
charging station will turn on.
If you are using a DC adapter, the charging station comes with a velcro
strap and washer assembly to secure the GX-6000. Ensure that the
washer is installed over the GX-6000’s inlet fitting, that both ends of the
velcro strap are attached to the charging station, and that the assembly is
securing the instrument.
DC Adapter
To Vehicle
12 VDC
Power Socket
DC12V
DC Powered Charging Station
Power Supply
Jack (on
bottom of
charger)
To Next Page
