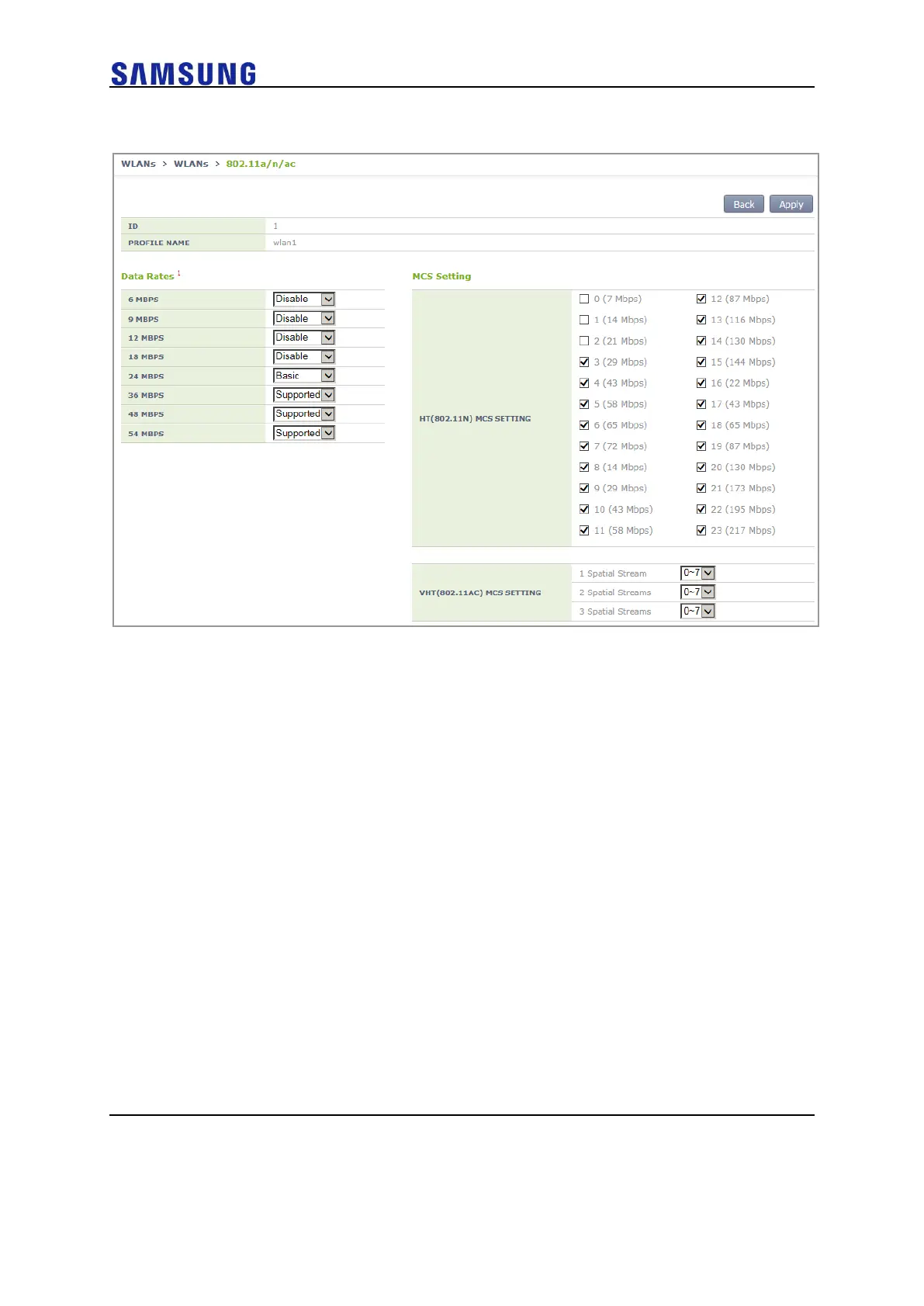

Figure 189. 802.11a/n/ac MCS Setting Window
8
[OPERATIONAL TYPE]
Enable/disable 11ac operation.
[VHT (802.11AC) MCS SETTING]
• Determine the spatial stream count for each AP model and enter
maximum MCS value for each spatial stream count.
• Example: maximum of seven MCS for one spatial stream, maximum of
eight MCS for two spatial streams, and maximum of nine MCS for three
spatial streams
o 1 spatial stream: 7
o 2 spatial streams: 8
o 3 spatial streams: 9
[OPTIONS]
• Guard-interval (11n): Select short/long for Guard-interval 20/40 MHz
respectively.
• Guard-interval (11ac): Select short/long for Guard-interval 20/40/80 MHz
respectively.
• Beamforming: Select use or not use beamforming.
