WEC8500/WEC8050 (APC) Operation Manual v10.1 37
©Samsung Electronics America

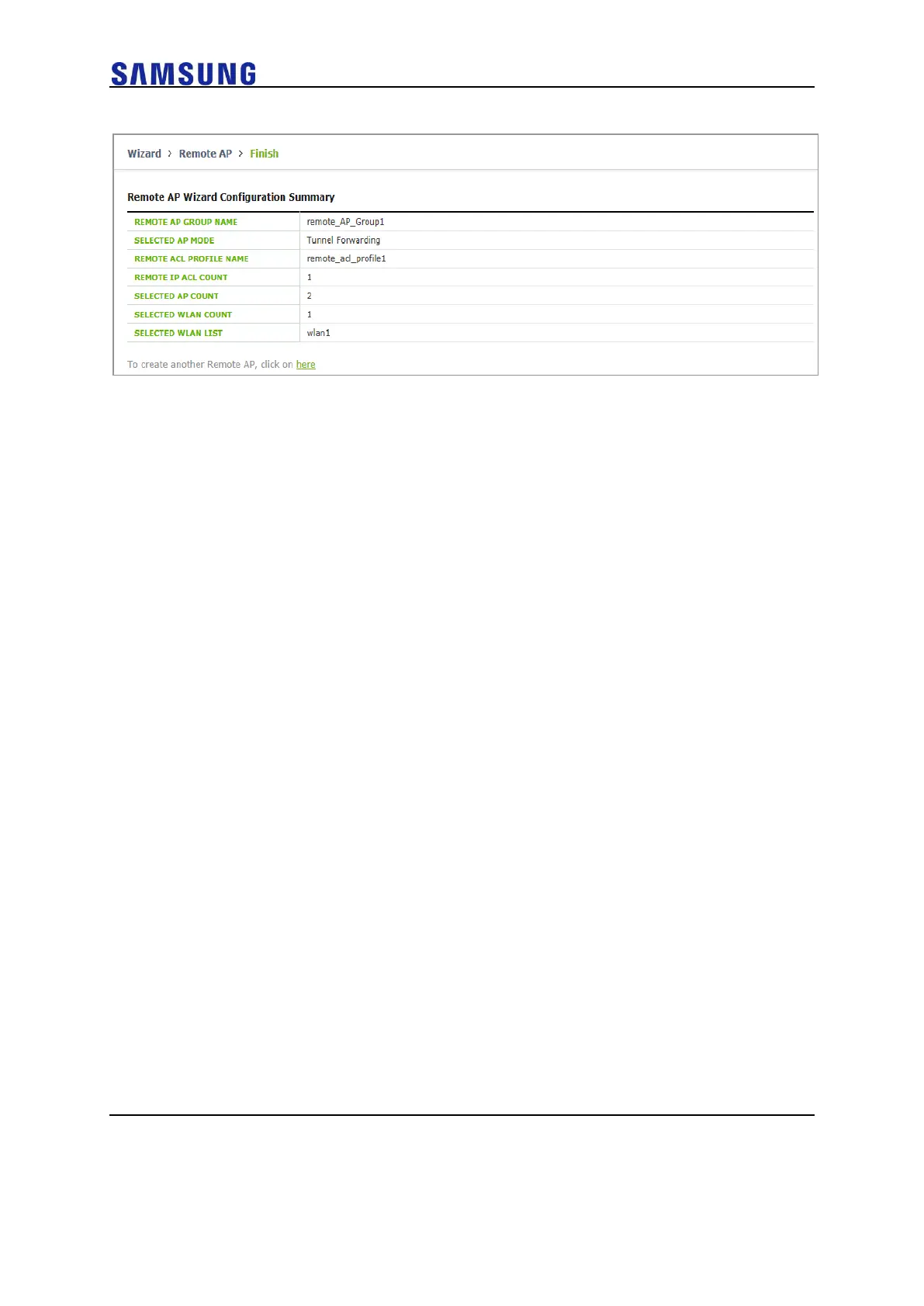

Figure 35. Remote AP Setup Wizard Result Screen
• ①: Located on the top of screen and displays current and total setup
step.
• ②: Next button to move next setup step, Prev button to move previous
setup step.
• ③: Finish button to finish setup and move to setup result screen.
Result screen displays setup information. If setup another Remote AP,
click a link on the screen, then move to first step of Setup Wizard.
Setup Step
The Remote AP setup wizard consists of the following setup steps: After setting up the
description desired on each screen, click the Next button to apply the modifications to the
system.
1) Step 1:
o Create Remote AP Group.
o The Next Step depends on which settings to select the AP mode.
2-1) Step 2 (when selecting Tunnel Forwarding):
o Create Remote ACL Profile.
o You can continue to generate additional Remote ACL Profile if you
select [Cancel] in the confirmation pop-up window appearing when
you click the Next button.
o After creating a Remote ACL Profile, you can generate a Remote
ACL Rule to be added to the Remote ACL Profile.
2-2) Step 2 (when selecting Local Bridging Forwarding):
o Select APs to be included in the Remote AP Group created in step 1.
3-1) Step 3 (when selecting Tunnel Forwarding):
o Select APs to be included in the Remote AP Group created in step 1.
3-2) Step 3 (when selecting Local Bridging Forwarding):
o Select WLANs to be included in the Remote AP Group created in
step 1.
