A2537-002/01 February 2020 8-8 SEMCO Proprietary Information

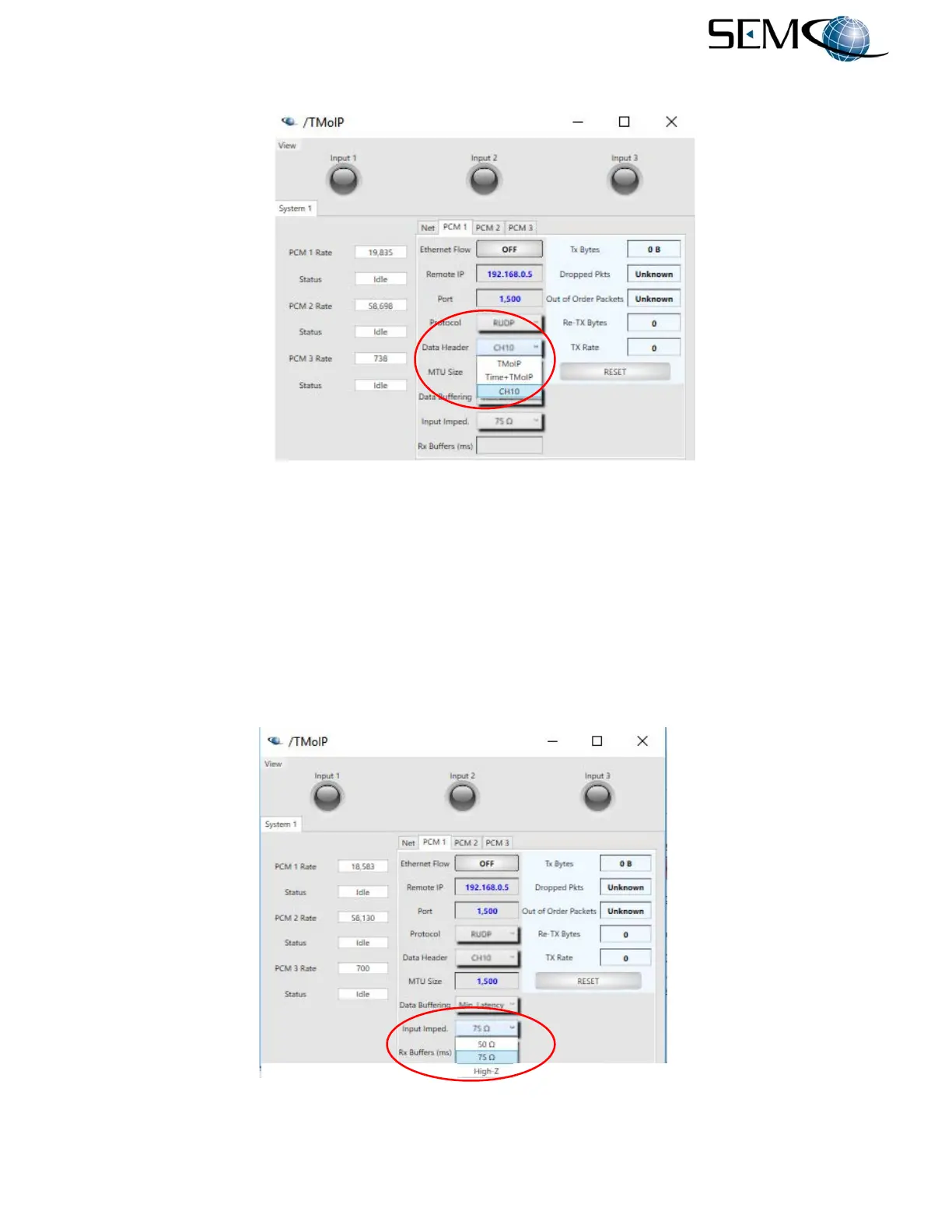

Figure 8-10
Data Header Selection on Remote GUI
8.4.6 Input Termination
This parameter sets the input impedance of the receiver’s embedded TM over IP module, and should
always match the receiver’s baseband video output impedance, which is normally 75 ohms.
Input Termination selection using the remote GUI is shown in Figure 8-11. The user clicks on the arrow
icon next to the Input Imped. window, which accesses a pull-down window as shown. The user then
selects 50
Ω, 75 Ω or High Z.
Figure 8-11
Input Termination Selection on Remote GUI
