Semco RC100C-2 - SOQPSK-LDPC Mode Selection Using Front Panel Using; SOQPSK-LDPC Selection in Individual or Multiple Channels

A2537-002/01 February 2020 6-28 SEMCO Proprietary Information

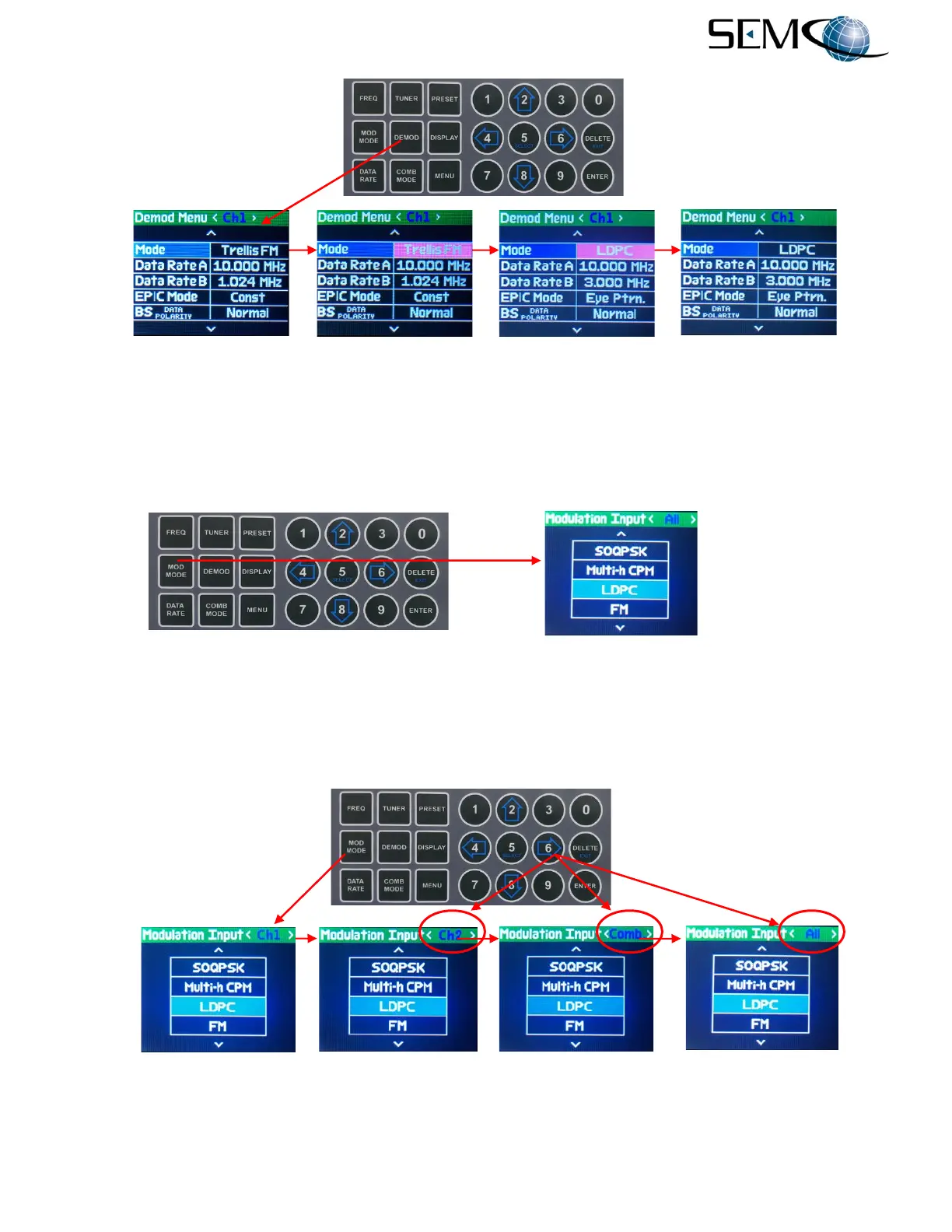

Figure 6-40
SOQPSK-LDPC Mode Selection Using Front Panel
The operator can also select SOQPSK-LDPC using the MOD MODE button as shown in Figure 6-41. The
operator pushes the MOD MODE button to access the Modulation Input display and uses the UP (2) and
DOWN (8) arrows to scroll to LDPC in blue. The operator then pushes ENTER or SELECT (5).
Figure 6-41
SOQPSK-LDPC Selection Using Front Panel MOD MODE Controls
The operator can change the demodulation format for <Ch1>, <Ch2>, <Comb> or all 3 demodulators
<All> by using the horizontal LEFT (4) and RIGHT (6) arrows to change the Modulation Input display bar
as shown in Figure 6-42 and then push ENTER or SELECT (5).
Figure 6-42
SOQPSK-LDPC Selection in Individual or Multiple Channels
