2.3 Receiver Software

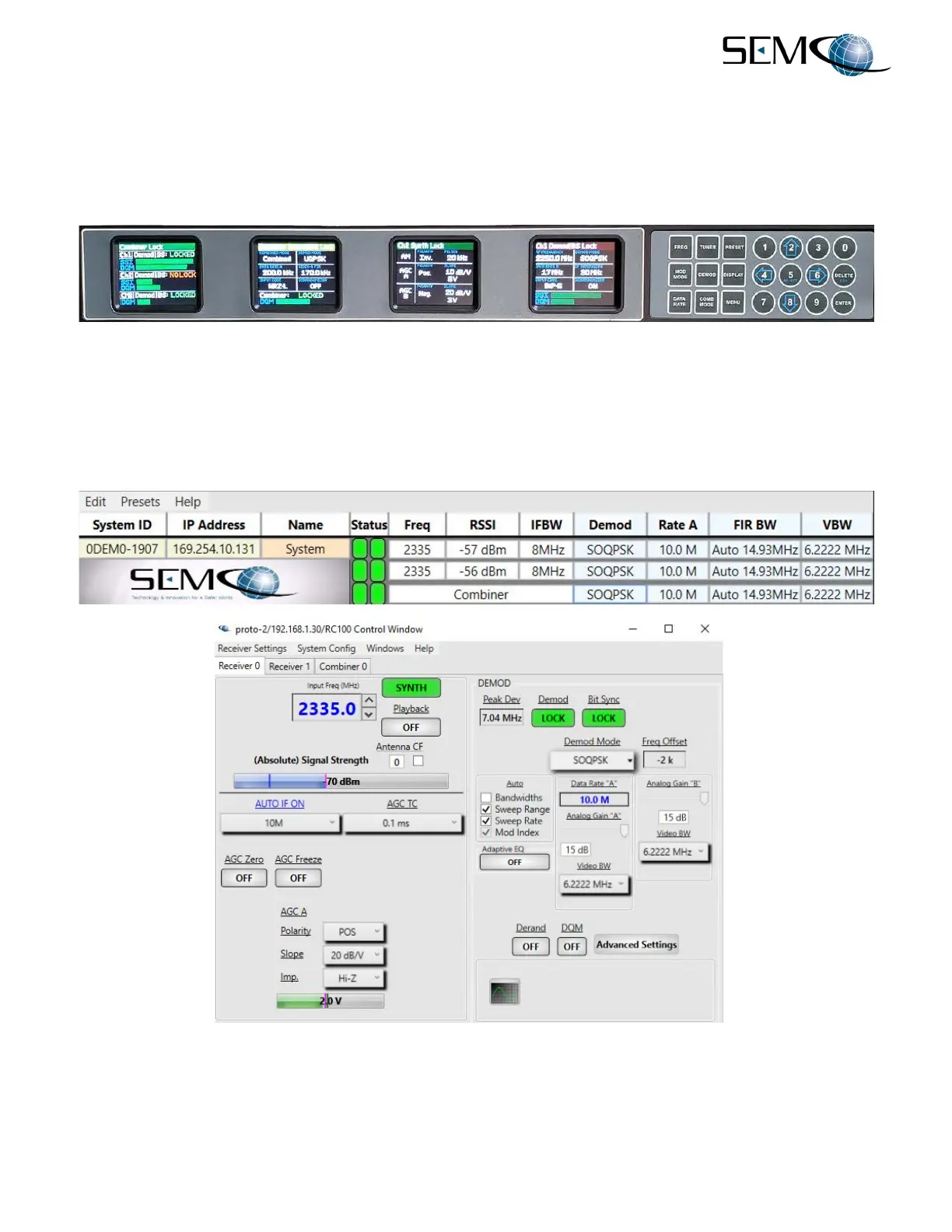

SEMCO-developed software is used for front panel LCD/keypad displays and control (Figure 2-3). All
system functions and set-up controls are by remote keyboard entry or via the front panel LCD displays
and keypad. System status is via display indicators (numerical readouts and bar graphs) on both the
remote GUI display and front panel LCD displays.
Figure 2-3
RC100C-2 SEGR Front Panel LCD Displays and Keypad
SEMCO-developed System Level Telemetry Software (SLTS) program software controls and displays
are shown in Figure 2-4. The remote GUI and front panel keypad controls/displays provide for all
required receiver control and status monitoring.
Figure 2-4
Remote (Network) GUI Displays
SLTS Remote (network) Status and Receiver Control Panel GUI
