Semco RC100C-2 - Remote GUI AGC Slope and Polarity; AGC Slope and Polarity on Remote GUI

A2537-002/01 February 2020 4-16 SEMCO Proprietary Information
For <Ch1> AGC Freeze, the operator pushes the TUNER button, uses the UP (2) and DOWN (8) arrows
to scroll to AGC Freeze in blue, and then pushes ENTER or SELECT (5) to highlight the AGC Freeze
ON/OFF window in bright magenta. Using the UP (2) and DOWN (8) arrows, the operator selects ON and
pushes ENTER or SELECT (5).
Using the horizontal LEFT (4) and RIGHT (6) arrows, the operator selects <Ch2> AGC Freeze, and pushes
ENTER or SELECT (5) to highlight the AGC Freeze ON/OFF window in bright magenta. Using the UP
(2) and DOWN (8) arrows, the operator selects ON and pushes ENTER or SELECT (5).

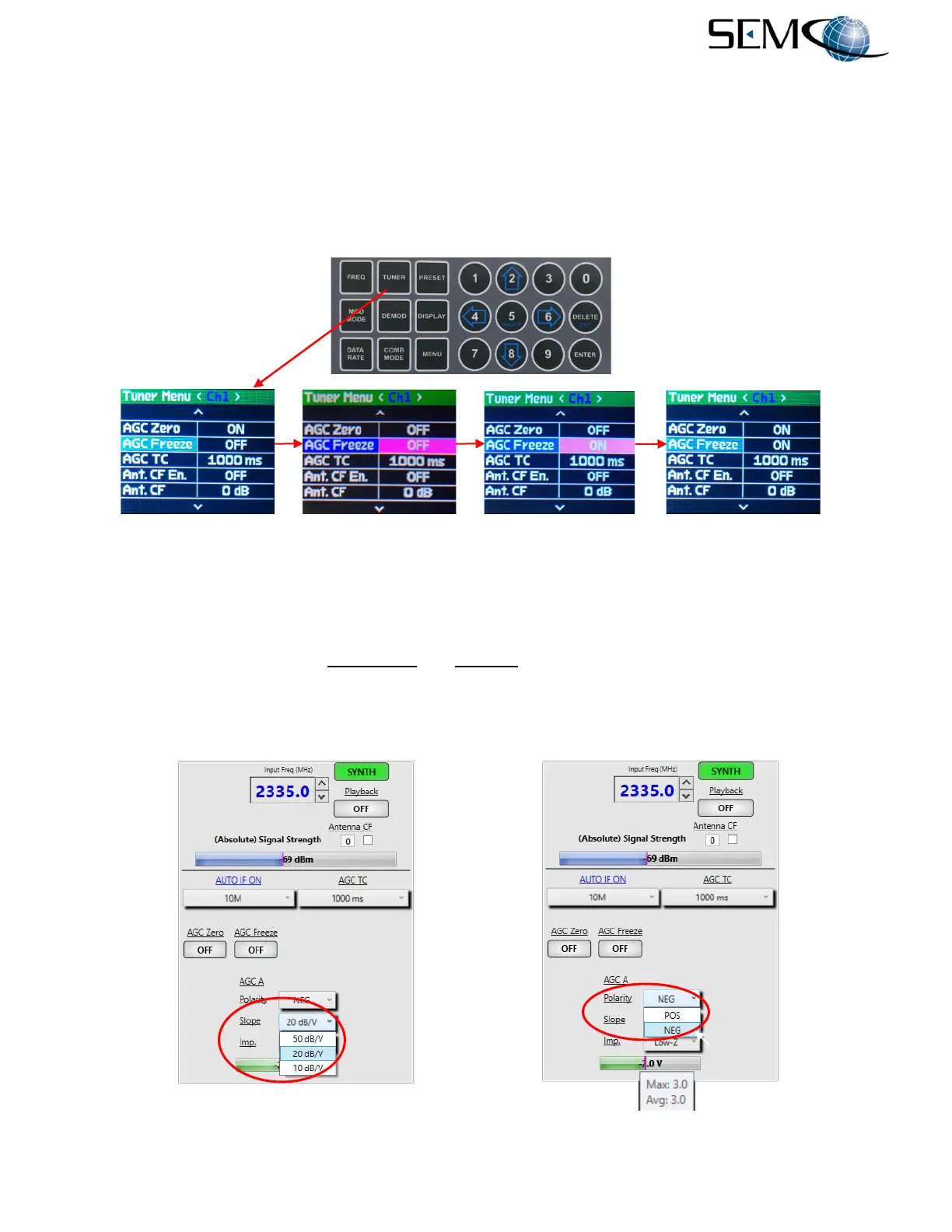

Figure 4-23
AGC Freeze Feature Using Front Panel
4.5.4 Remote GUI AGC Slope and Polarity
Clicking on the arrow icon in the AGC Slope and Polarity boxes enables the pull-down menus as shown
in Figure 4-24.
AGC voltage output level displays include a Maximum (Max) and Average (Avg) readout by placing the
cursor over the AGC Voltage bar graph as shown.
Figure 4-24
AGC Slope and Polarity on Remote GUI
-----------------------------------------------------------AGC Freeze------------------------------------------------------
