A2537-002/01 February 2020 2-2 SEMCO Proprietary Information
I. Data Quality Encapsulation/Metrics (DQE/DQM) for use with external Best Source Selectors
J. Adaptive Equalization (AE)
K. SOQPSK Low Density Parity Check (LDPC)
L. SOQPSK Space Time Coding (STC)
M. Scalable AGC outputs (+/- 10, 20 and 50 dB/V per channel) and AM antenna tracking outputs
(CH1/2 and Combiner)
N. Eye Pattern, Constellation and Spectral Sweep displays for each installed demodulator
O. 4 LCD front panel displays and keypad
P. Local GUI Display/Keyboard/Mouse interface and control (USB and HDMI) and Remote control
via Ethernet
Q. A 70 MHz Tape Playback feature (CH1 and CH2)
Optional RC100C-2 features include:
A. Additional demodulation modes (PM/PSK Subcarrier, FM/FM Sub-carrier, GMSK, Coherent AM
and Spread Spectrum (SS-UQPSK, SQPN) demodulation
B. Multi-Channel Embedded Stand-Alone Bit Sync/Frame Sync/BERT with selectable internal and
external switching
C. 3 Channel CH10/IRIG 218 TM over I/P
D. Viterbi Forward Error Correction (FEC)
E. Turbo Coding FEC
2.2 Receiver Hardware Installation
Ensure safe system installation for operation (i.e., secured in the equipment rack or safely positioned on a
non-slip work surface that can support the system size and weight).

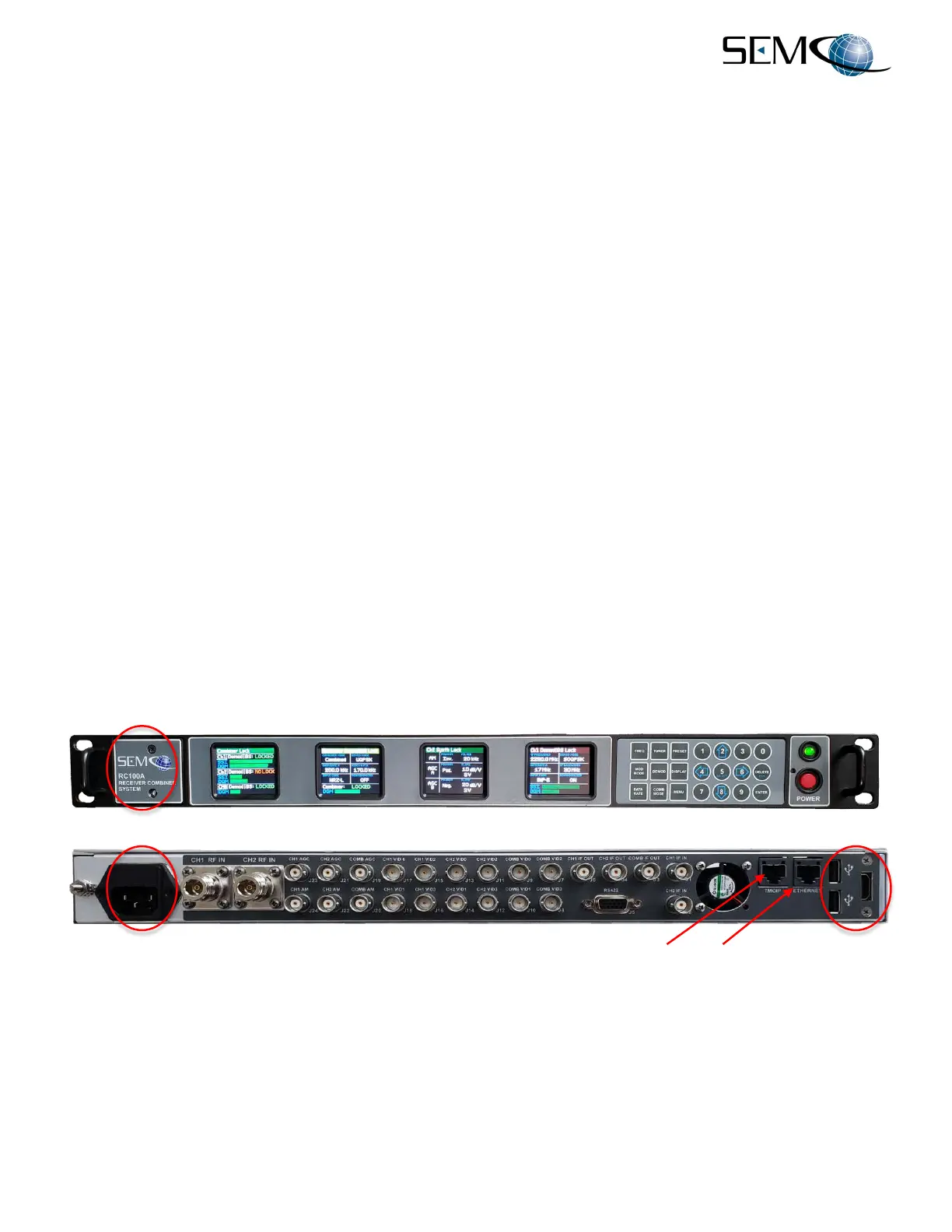

Figure 2-2 illustrates the RC100C-2 front panel displays and keypad controls, as well as rear panel I/O
with respect to AC power, local display/keyboard/mouse interface (USB and HDMI) and remote software
communications (LAN and TM over IP) via Ethernet. Note: Local GUI control via USB and HDMI is used
principally as a trouble-shooting tool and not for receiver mission support.
Figure 2-2
RC100C-2 Initial Power and Remote (Network) Connections (LAN and TM over IP)
2.2.1 SD Card Interface
Referring to Figure 2-2, the RC100C-2 provides a front panel dual SD card interface for software and
firmware installation and upgrades without the need to remove the receiver from its rack enclosure. This
front panel interface is a removable access door located as shown.
