A2537-002/01 February 2020 6-11 SEMCO Proprietary Information

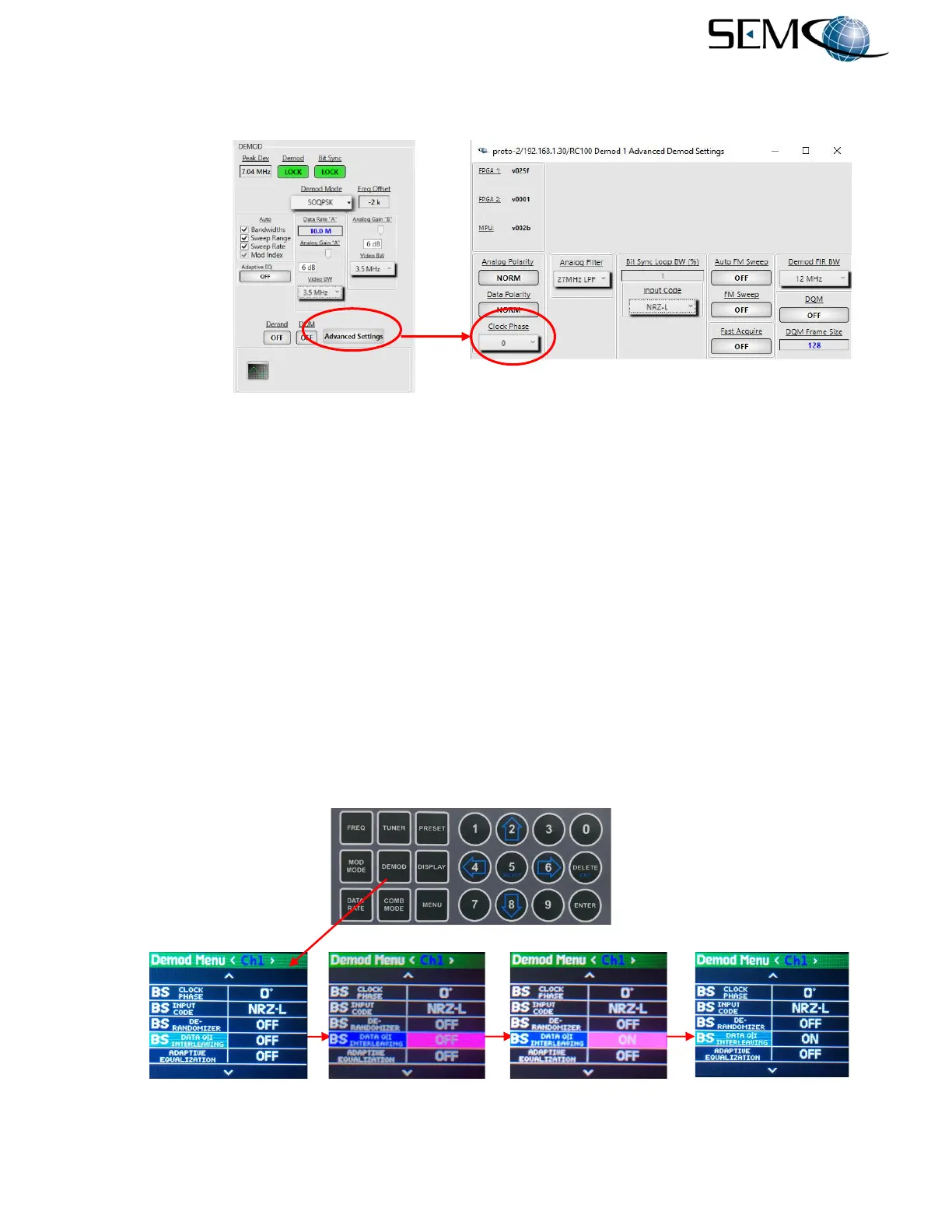

Using the remote GUI, the user enables the clock phase pull-down menu by clicking on Advanced
Settings as shown in Figure 6-18.
Figure 6-18
Remote GUI Embedded Bit Sync Clock Phase Settings
6.6.3 I/Q Interleaving
Interleaving the analog I and Q baseband video outputs for QPSK and UQPSK demodulator formats is
enabled as shown in Figure 6-19.
The operator pushes the DEMOD MODE button to access the <Ch1> Demod Menu display, uses the UP
(2) and DOWN (8) arrows to scroll to BS DATA Q/I INTERLEAVING in blue, and then pushes ENTER or
SELECT (5) to highlight the selection window in bright magenta. Using the UP (2) and DOWN (8) arrows,
the operator selects ON and pushes ENTER or SELECT (5).
Using the horizontal LEFT (4) and RIGHT (6) arrows, the operator selects <Ch2> in the Demod Menu
header display bar, pushes ENTER or SELECT (5) to highlight the selection window in bright magenta,
uses the UP (2) and DOWN (8) arrows to select ON and then pushes ENTER or SELECT (5).
Using the horizontal LEFT (4) and RIGHT (6) arrows again, the operator selects <Comb> in the Demod
Menu header display bar, pushes ENTER or SELECT (5) to highlight the selection window in bright
magenta, uses the UP (2) and DOWN (8) arrows to select ON and then pushes ENTER or SELECT (5).
Figure 6-19
Front Panel I/Q Interleaving Selection
