Semco RC100C-2 - Front Panel if SAW Filter Bandwidth Selection; IF FIR Filter Bandwidth Selection

A2537-002/01 February 2020 4-9 SEMCO Proprietary Information

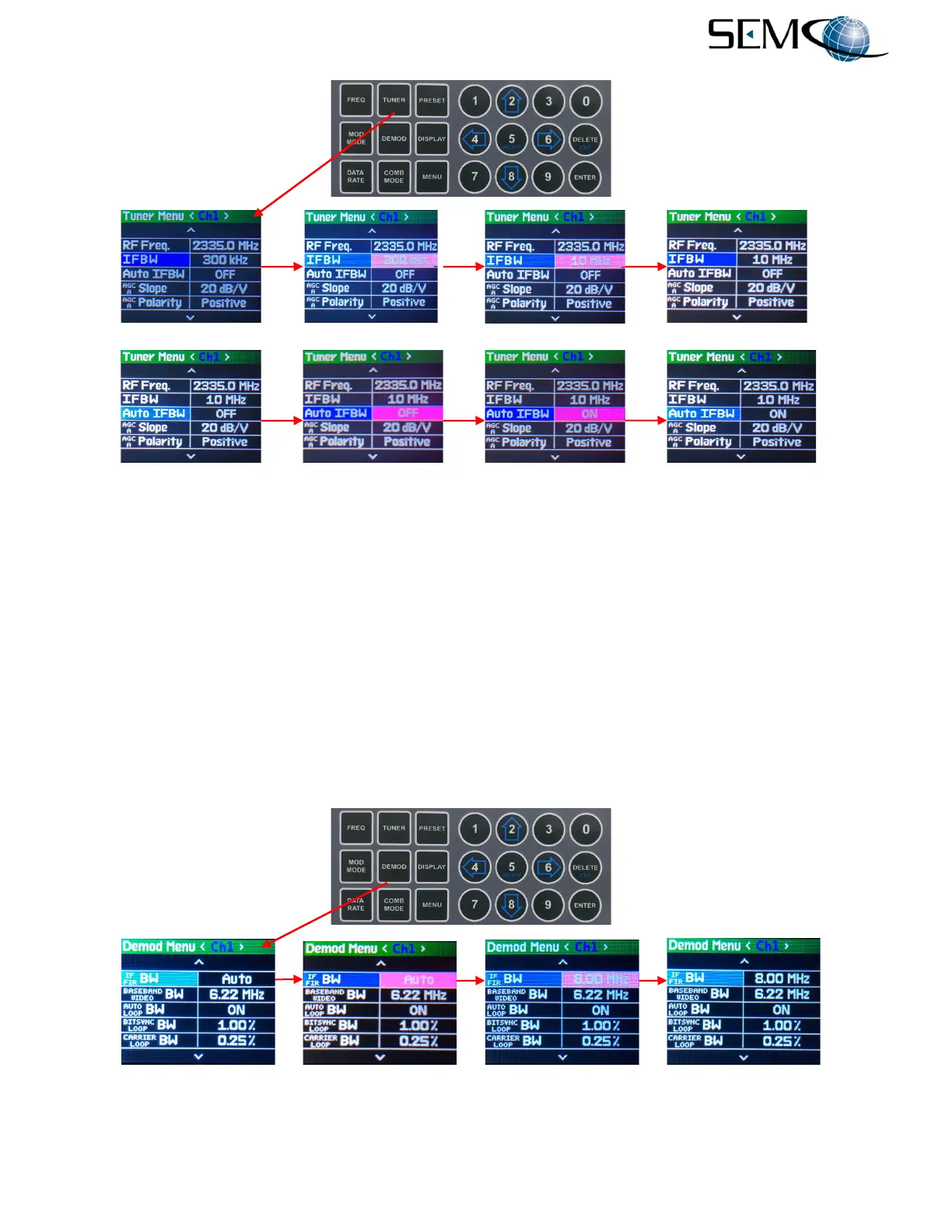

Figure 4-14
Front Panel IF SAW Filter Bandwidth Selection
4.3.2 Front Panel IF FIR Filter Selection
IF FIR BW selection is illustrated in Figure 4-15. The operator pushes the DEMOD button, uses the UP
(2) and DOWN (8) arrows to scroll to IF FIR BW in blue, and then pushes ENTER or SELECT (5) to
highlight the IF FIR BW value window in bright magenta. The operator then uses the UP (2) and DOWN
(8) arrows to select the desired IF FIR BW value or Auto and pushes ENTER or SELECT (5) as shown to
set the <Ch1> IF FIR BW value or enable the Auto feature.
For <Ch2> and <Comb> IF FIR BW, the operator uses the horizontal LEFT (4) and RIGHT (6) arrows to
change the Demod Menu to <Ch2> or <Comb>, and pushes ENTER or SELECT (5) to highlight the IF
FIR BW value window in bright magenta. The operator uses the UP (2) and DOWN (8) arrows to select
the desired IF FIR BW value or Auto and then pushes ENTER or SELECT (5).
Figure 4-15
IF FIR Filter Bandwidth Selection
-----------------------------------------------------IFBW Value Selection--------------------------------------------------
-------------------------------------------------------Auto IFBW Enabled----------------------------------------------------
