Siemens SINUMERIK 808D Function Manual

Function Manual
132 01/2017
● MD24920 TRACYL_BASE_TOOL_1
The control is informed of the position of the tool zero point in relation to the origin of the coordinate system declared for
TRACYL. The MD has three components for the three axes of the Cartesian coordinate system.
Assignment of axis components in MD24920:
– TRACYL_BASE_TOOL_1[0]=Tx
– TRACYL_BASE_TOOL_1[1]=Ty
– TRACYL_BASE_TOOL_1[2]=Tz (see following figure)

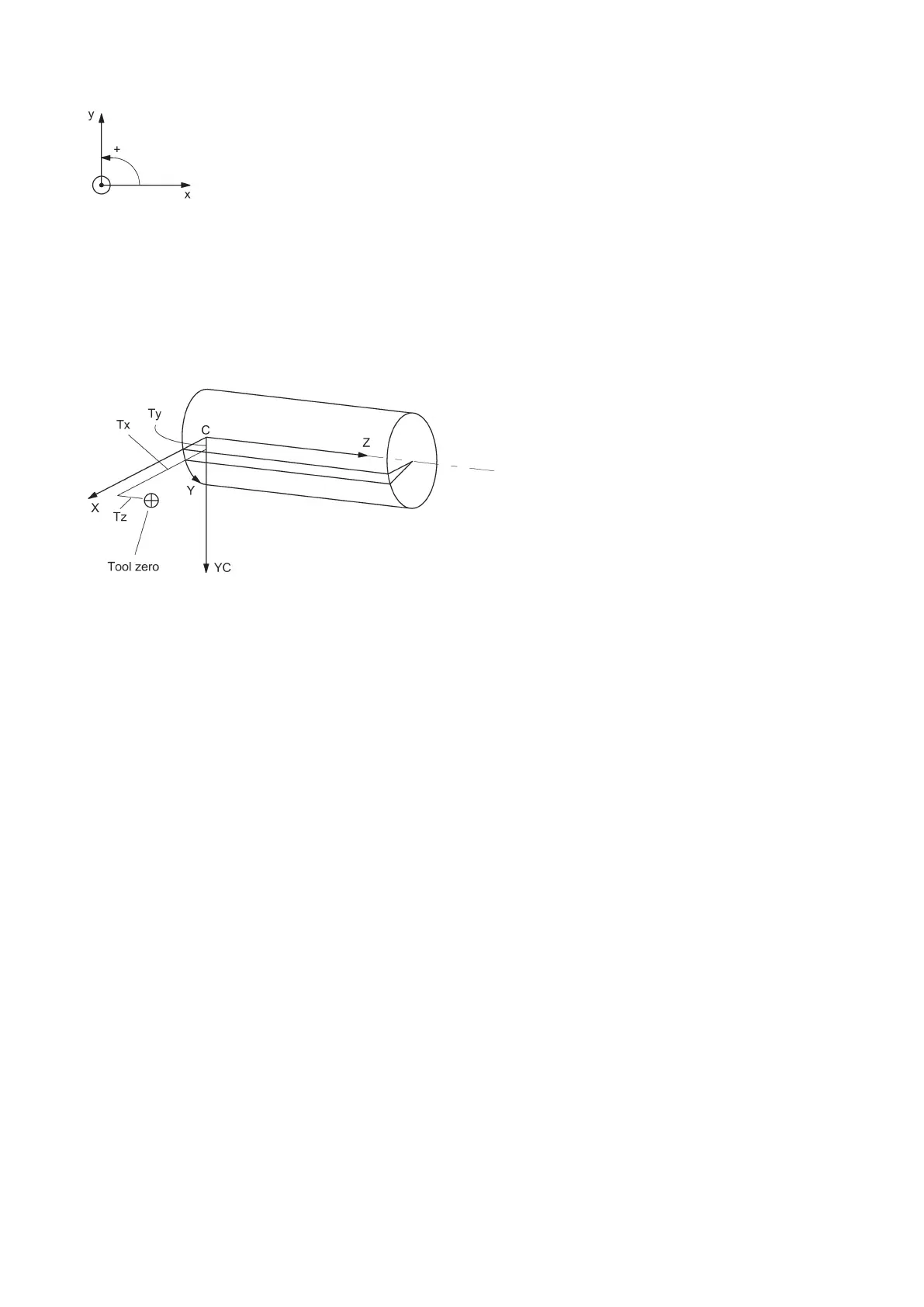

Position of tool zero in relation to machine zero:
Example: Machine data settings for TRACYL with a standard lathe
General settings: Axis names: XM->X1, ZM->Z1, CM->SP1
● Machine axis name
MD10000 AXCONF_MACHAX_NAME_TAB[0]="X1"
MD10000 AXCONF_MACHAX_NAME_TAB[1]="Z1"
MD10000 AXCONF_MACHAX_NAME_TAB[2]="SP1"
MD10000 AXCONF_MACHAX_NAME_TAB[3]="SP2"
MD10000 AXCONF_MACHAX_NAME_TAB[4]=""
● Assignment of geometry axis to channel axis
MD20050 AXCONF_GEOAX_ASSIGN_TAB[0]=1
MD20050 AXCONF_GEOAX_ASSIGN_TAB[1]=0
MD20050 AXCONF_GEOAX_ASSIGN_TAB[2]=2
● Geometry axis names in channel
MD20060 AXCONF_GEOAX_NAME_TAB[0]="X"
MD20060 AXCONF_GEOAX_NAME_TAB[1]="Y"
MD20060 AXCONF_GEOAX_NAME_TAB[2]="Z"
● Machine axis number valid in channel
MD20070 AXCONF_MACHAX_USED[0]=1
MD20070 AXCONF_MACHAX_USED[1]=2
MD20070 AXCONF_MACHAX_USED[2]=3
MD20070 AXCONF_MACHAX_USED[3]=4
MD20070 AXCONF_MACHAX_USED[4]=0
● Name of channel axis in the channel
MD20080 AXCONF_CHANAX_NAME_TAB[0]="X"
MD20080 AXCONF_CHANAX_NAME_TAB[1]="Z"
