Siemens SINUMERIK 808D Function Manual

Function Manual
01/2017
145
6.

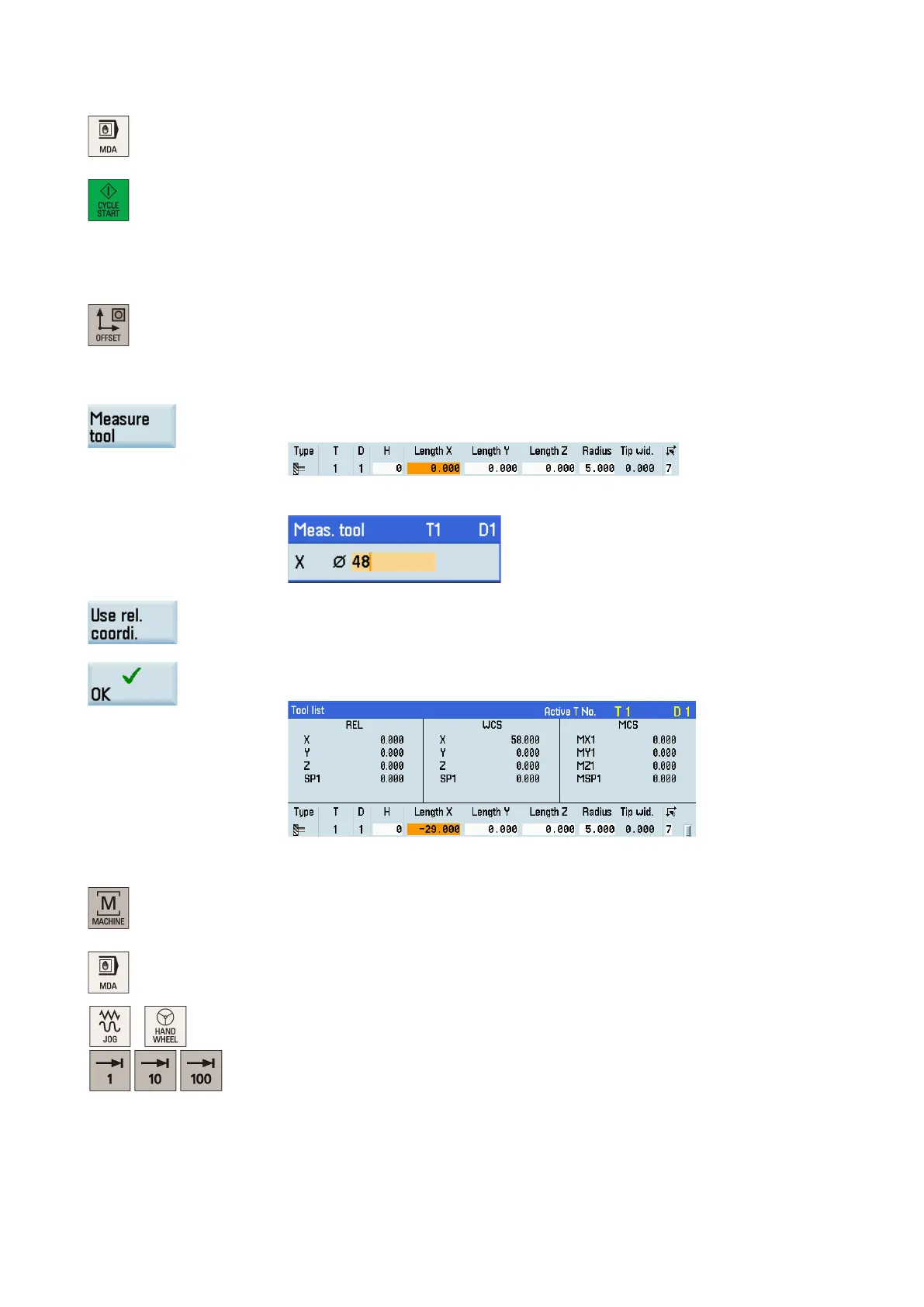

Switch to "MDA" mode and continue to enter "SPOS=180" in the program editor window.
7.
Press this key to rotate the spindle 180 degrees.
8.
Repeat Steps 3 to 5.
9.
Measure the distance between the two cutting surfaces machined in the previous steps with
a calliper.
10.
Select the offset operating area.
11.
Press the alphabetic key <X> or proceed through the following method to open the window
for measuring the tool in the X direction:
Move the cursor to the input fie
ld for Length X with the cursor keys and then press this soft-
key.
12.
Enter the distance measured in Step 9 in the input field, for example, 48.
If you desire to use the relative coordinate, press this softkey.
13.
Press this softkey to confirm your input. The system calculates the offset and e
n
ters it in the
geometry input field of the currently active tool automatically.
Measuring the Y axis of the tool
1.
Select the machining operating area.
2.
Switch to "MDA" mode and enter "SPOS=0" in the program e
ditor window to fix the spindle.
→
3.
Switch to handwheel control mode.
4.
Select a suitable override feedrate.
