Function Manual

01/2017

165

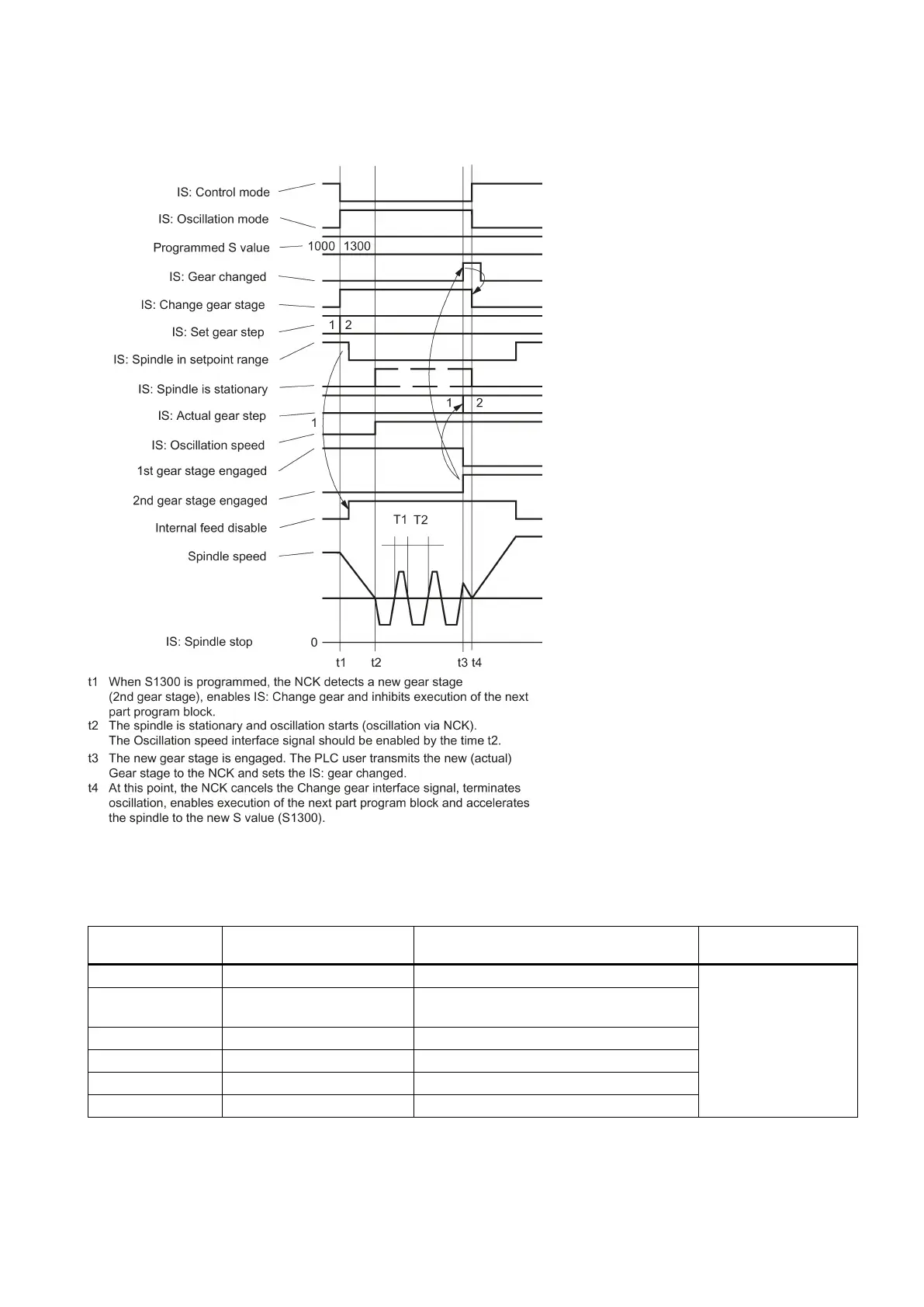

The following figure shows the typical time sequence for the gear stage change.

Gear stage change with stationary spindle:

Parameter set

One parameter set each is provided for each of the five gear stages. The appropriate parameter set is activated through the

IS "Actual gear stage A" to "...C" (DB380x.DBX2000.0 to .2).

It is assigned as follows:

Index n

PLC interface,

CBA coding

Data of the data set

Contents

Data for axis mode

Servo gain factor,

monitoring functions,

speed, acceleration,

etc.

000

001

Data for 1st gear stage

010

Data for 2nd gear stage

011

Data for 3rd gear stage

100

Data for 4th gear stage

101

Data for 5th gear stage
