Siemens SINUMERIK 808D Function Manual

Function Manual
01/2017
313

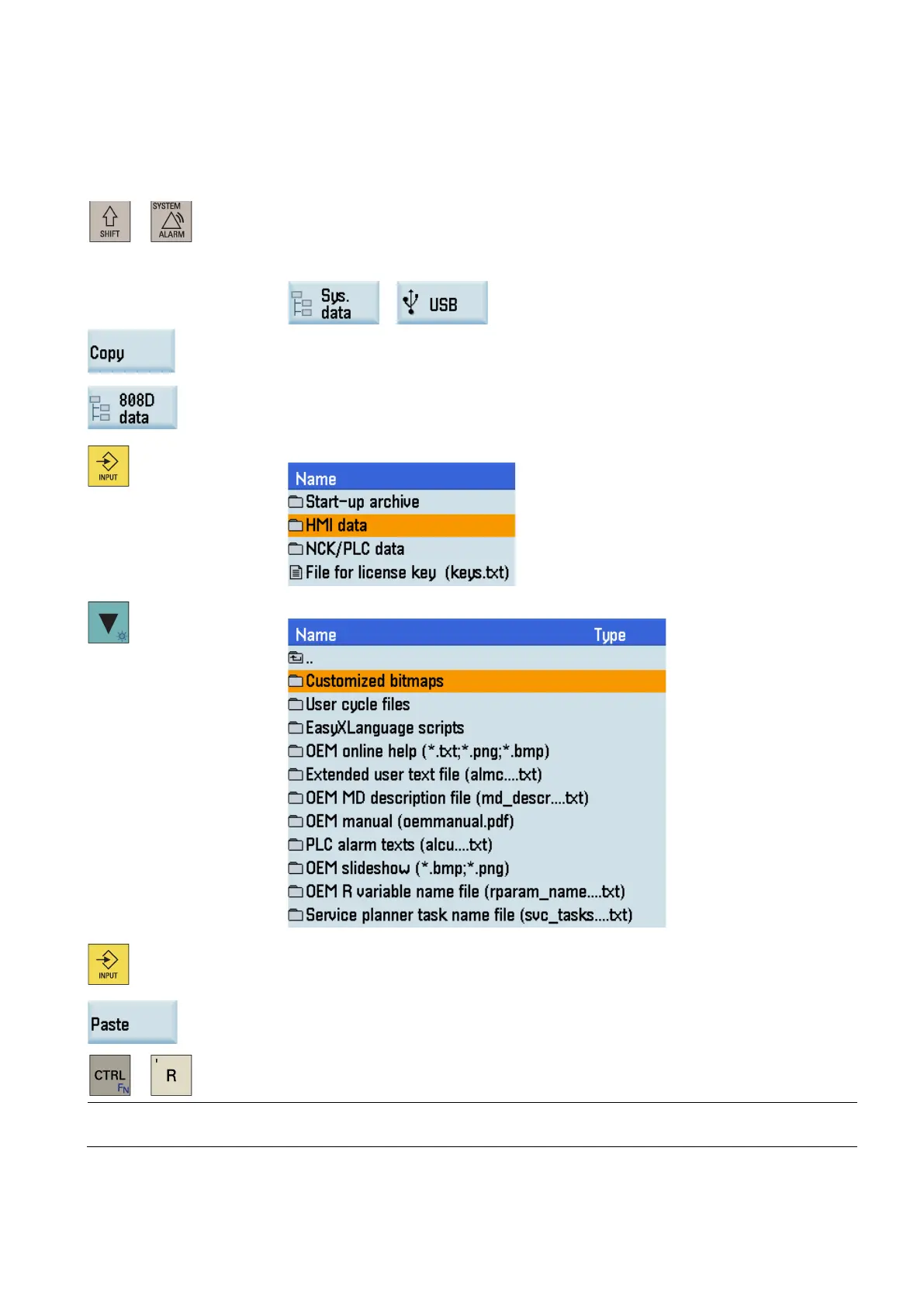

Proceed as follows to use your own machine logo:
1.
Prepare the image of your own machine logo in BMP format. To achieve
the best display
effect, the recommended image size is 153*24 pixels for PPU161.3 and 122*19 pixels for
PPU160.2/PPU141.2. Name the image "mtbico.bmp" and save it on a USB memory stick.
2.
Insert the USB stick into the USB interface on the front panel of the PPU.
+
3.
Select the system data operating area.
4.
Locate the ma
chine logo file under the USB directory through the following softkey opera-
tions:
→
5.
Select the file with cursor keys and press this softkey to copy the
file.
6.
Press this softkey to open
the window of system data.
7.
Select
the HMI data folder and press this key to open it.
8.
Move the cursor to
the folder highlighted as follows:
9.
Press this key to open this folder
.
10.
Press this softkey to replace
the default machine logo file with your own machine logo file.
+
11.
Pr
ess these two keys to restart the HMI. Then you can see your own machine logo in the
machining operating area.
Note
To restore the default display of "SIEMENS" logo, delete the customized bitmap file (mtbico.bmp) from the control system.
