Event
Startup
For the sequence with power up, see the table below:
Se-
quence
Command
Boundary conditions
(must be satisfied before the
command)
Comments
1
Reset
after power up
2 MD20110 RESET_MODE_MASK,
MD20150 GCODE_RESET_VALUES,
MD20152 GCODE_RESET_MODE
Control activated
after ramp up:
Reset sequence with evaluation
3 /_N_CMA_DIR/CYCPE1MA.SPF and
/_N_CMA_DIR/CYCPE_MA.SPF
as an ASUP Implied call of the path name as
an ASUP
4 MD20110 RESET_MODE_MASK,
MD20150 GCODE_RESET_VALUES,
MD20152 GCODE_RESET_MODE
Control activated:
Reset sequence with evaluation
The G code reset position con-
tinues to be specified with ma-
chine data
Note
You must put the manufacturer cycles CYCPE1MA.SPF and CYCPE_MA.SPF in the folder CMA.DIR
.
The two manufacturer cycles are corresponding jump markers prepared; therefor
e CYCPE1MA is jumped to at the
beginning of PROG_EVENT.SPF and CYCPE_MA is jumped to at the end.
Chronological sequences
For part program start and part program end:

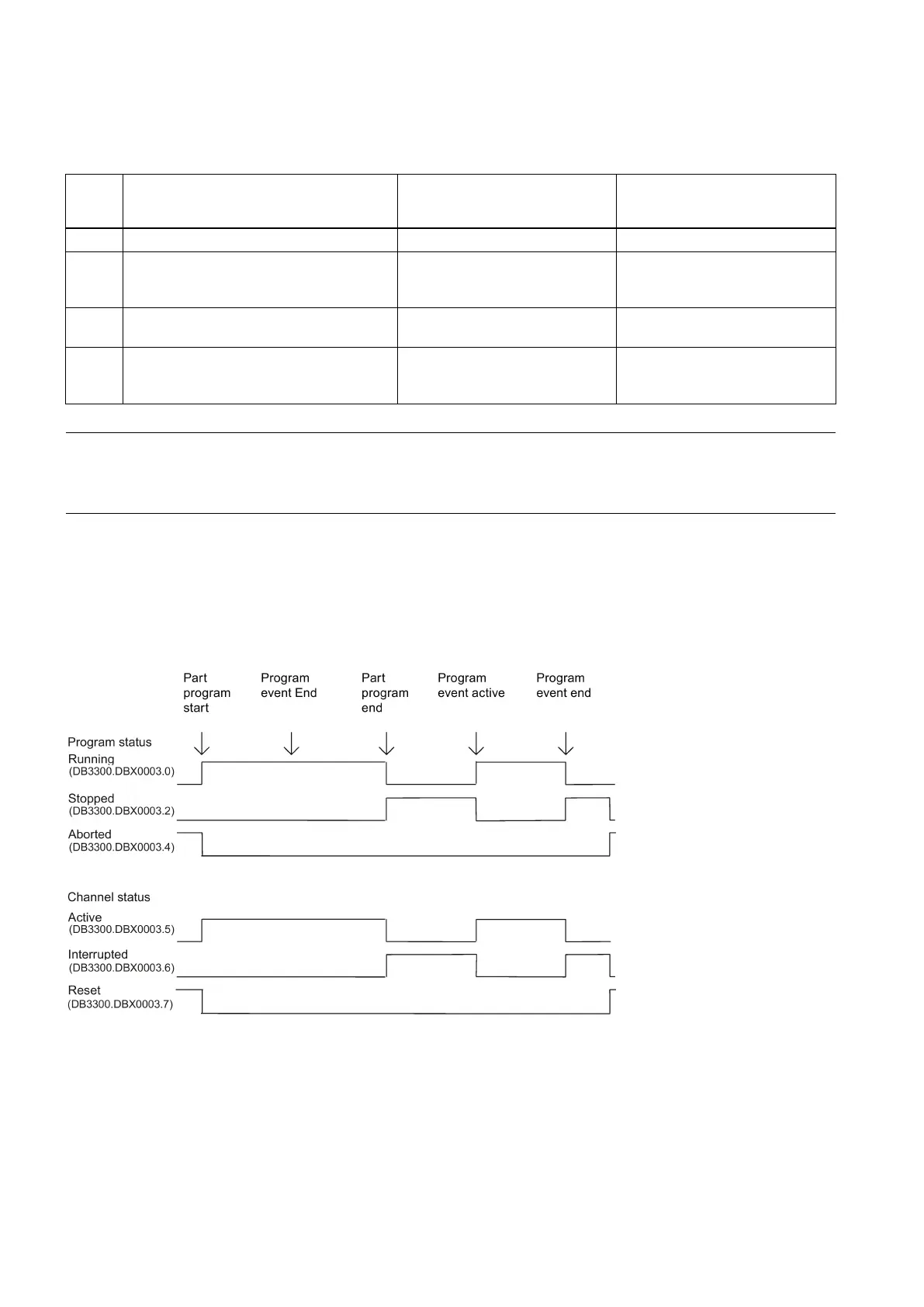

Time sequence of VDI signals DB3300.DBB0003 ("Program status" and "Channel status") when processing a part program
with an event-driven program call for part program start and part program end:
Time sequence of the interface signals for program status and channel status (1):
