K2: Axis Types, Coordinate Systems, Frames
10.5 Frames
Basic Functions
766 Function Manual, 09/2011, 6FC5397-0BP40-2BA0

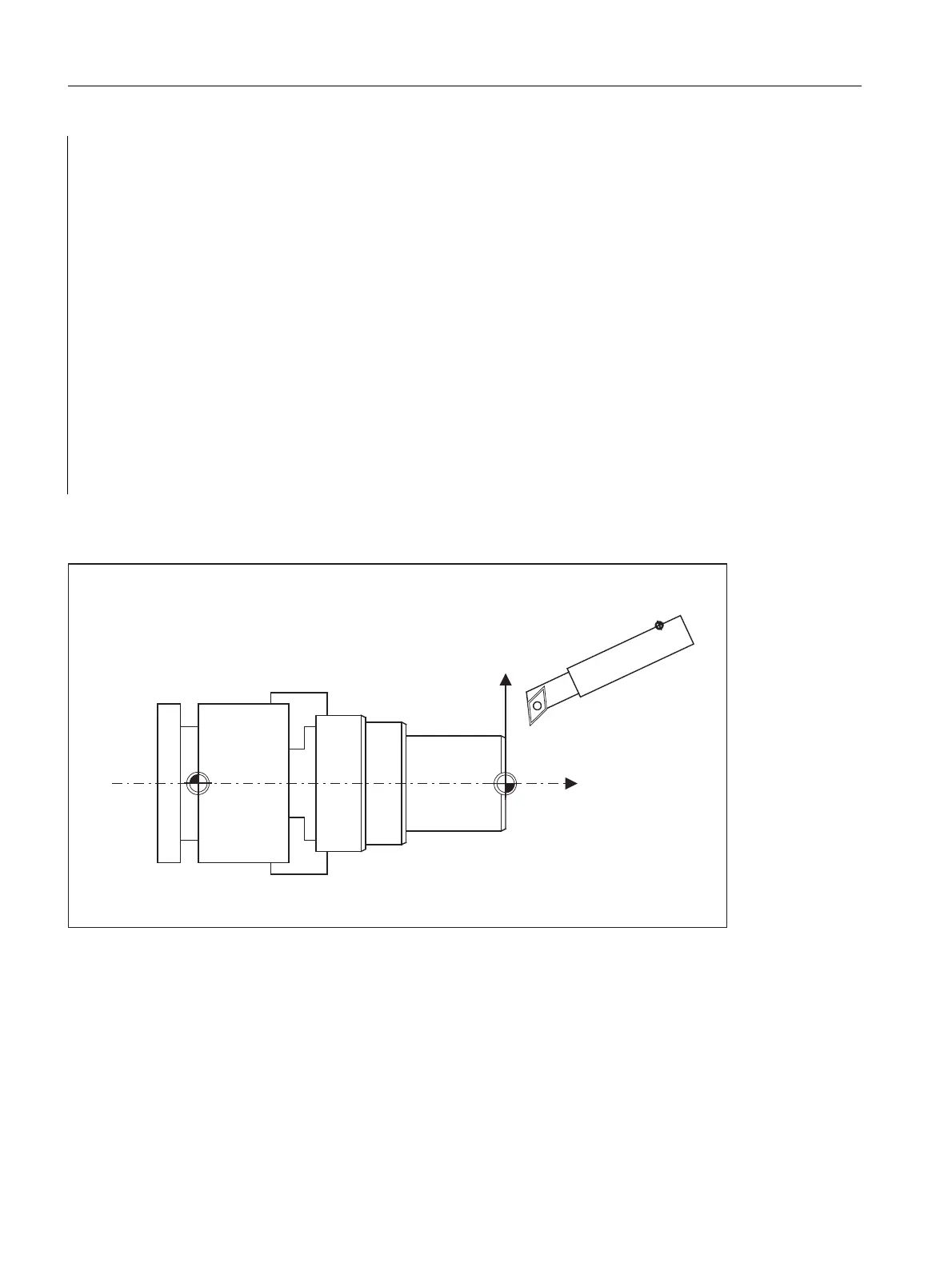

TRAANG
Frame expansions:
The expansions described below are only valid for the following machine data settings:
MD10602 $MN_FRAME_GEOAX_CHANGE_MODE = 1
MD10602 $MN_FRAME_GEOAX_CHANGE_MODE = 2
Translations:
When selecting TRAANG, translations of the virtual axis are deleted.
Rotations:
Rotation before the transformation is taken over.
N1250 endif
N1260 if $P_IFRAME <>
TRANS(X,11,Y,2,Z,3,B,4):CROT(X,10,Y,20,Z,30):CMIRROR(X,B)
N1270 setal(61000)
N1280 endif
N1290 if $P_IFRAME <> $P_UIFR[1]
N1300 setal(61000)
N1310 endif
N1320 if $P_ACTFRAME <>
TRANS(X,21,Y,22,Z,33,B,19):CROT(X,10,Y,20,Z,30):CMIRROR(X,B)
N1330 setal(61002)
N1340 endif
N1350
N1360 G00 x0 y0 z0 G90
N1370
N1380 m30
]
[
