Siemens SINUMERIK 828D Manual

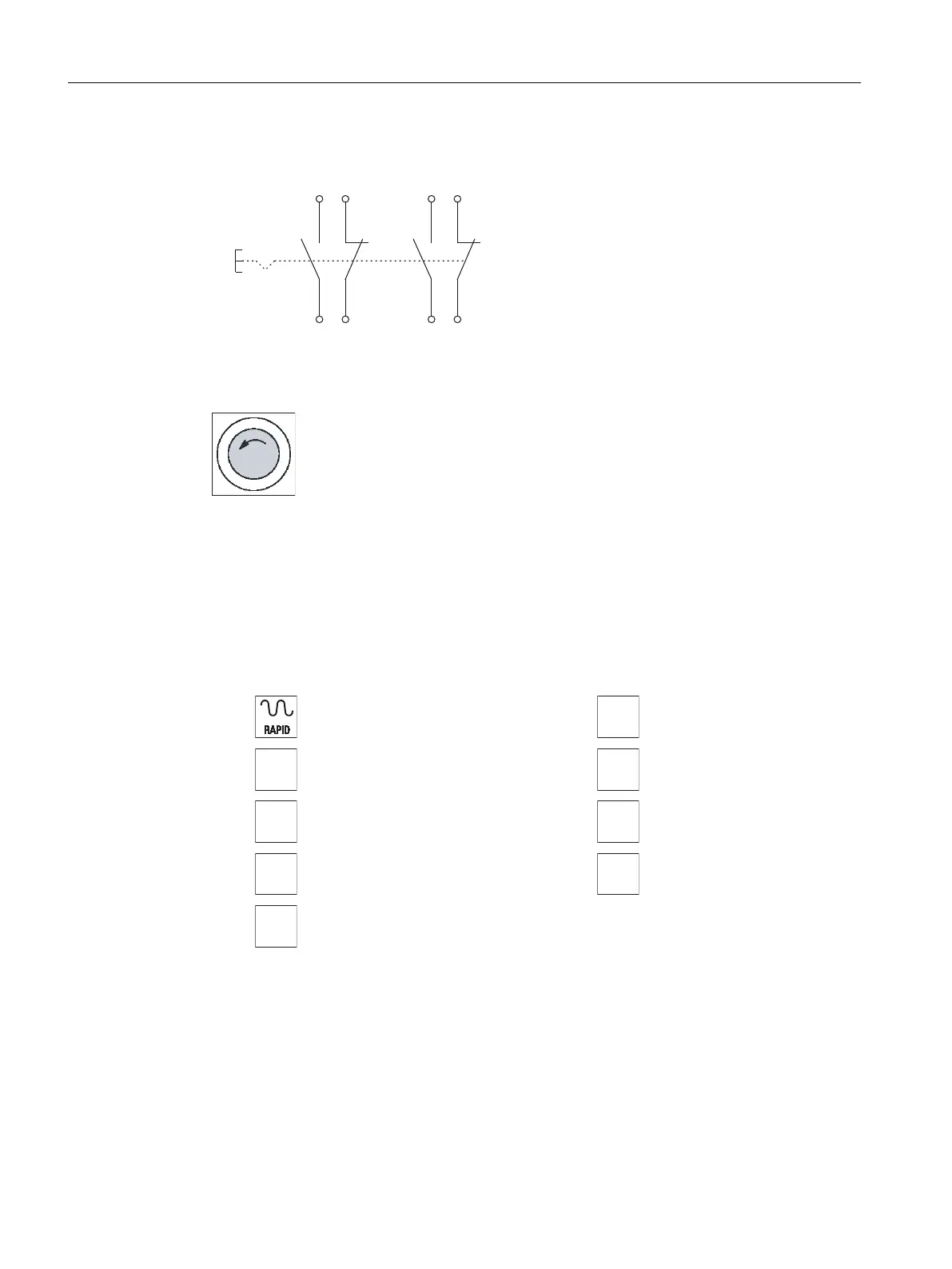

Emergency Stop circuit









EMERGENCY STOP
Press the Emergency Stop button in emergency situations:
● When persons are at risk.
● When there is a risk of the machine or workpiece being damaged.
As a rule, when operating the Emergency-Stop button, all drives are brought to a standstill
with max. braking torque. Turn the emergency-stop counterclockwise to unlatch it.
Key caps
All keys of the MCP 483C PN come with changeable key caps. Refer to the following table for
the additional replacement key caps provided for lathes in the accessories pack:
Key cap Symbol number Key cap Symbol number
7027
;
7129
&
7125
<
7130
;
7126
=
7131
<
7127
&
7132
=
7128
You will find article numbers for the key caps in Chapter Spare parts and accessories
(Page 135).
Anschließbare Komponenten
7.3 MCP 483C PN
PPU and components
122 Manual, 05/2015, 6FC5397-2DP40-3BA4

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
