Control During Operation
7-48 7SA6 Manual
C53000-G1176-C133-1
To perform control, confirm with the key. A safety inquiry appears, “$UH\RX
VXUH"”. If the response is “<(6”, the switching operation is initiated (provided the
Local command is allowed). A message is displayed and recorded indicating the
results of the control action. Acknowledge this by pressing the key once again.
The command is not executed if the switching operation is restricted. The operation
may be restricted for reasons pertaining to, for example, switching authority (see Sub-
section 7.4.6) or interlocking (see Sub-section 7.4.7). A message is displayed and
recorded indicating the results of the control action. Acknowledge the message by
pressing the key. Parameters to set control properties can be examined in the
display. Refer to Sub-section 7.4.4.
The key can be used to return to %5($.(56:,7&+. Press the key to return
to the 0$ ,10(18.
From PC with
DIGSI
®
4
When the 2QOLQH window in DIGSI
®
4 is opened with a double click, the operating
functions for the device appear in the left part of the window. Clicking on &RQWURO
displays the associated function selection in the data window. See Figure 7-48.

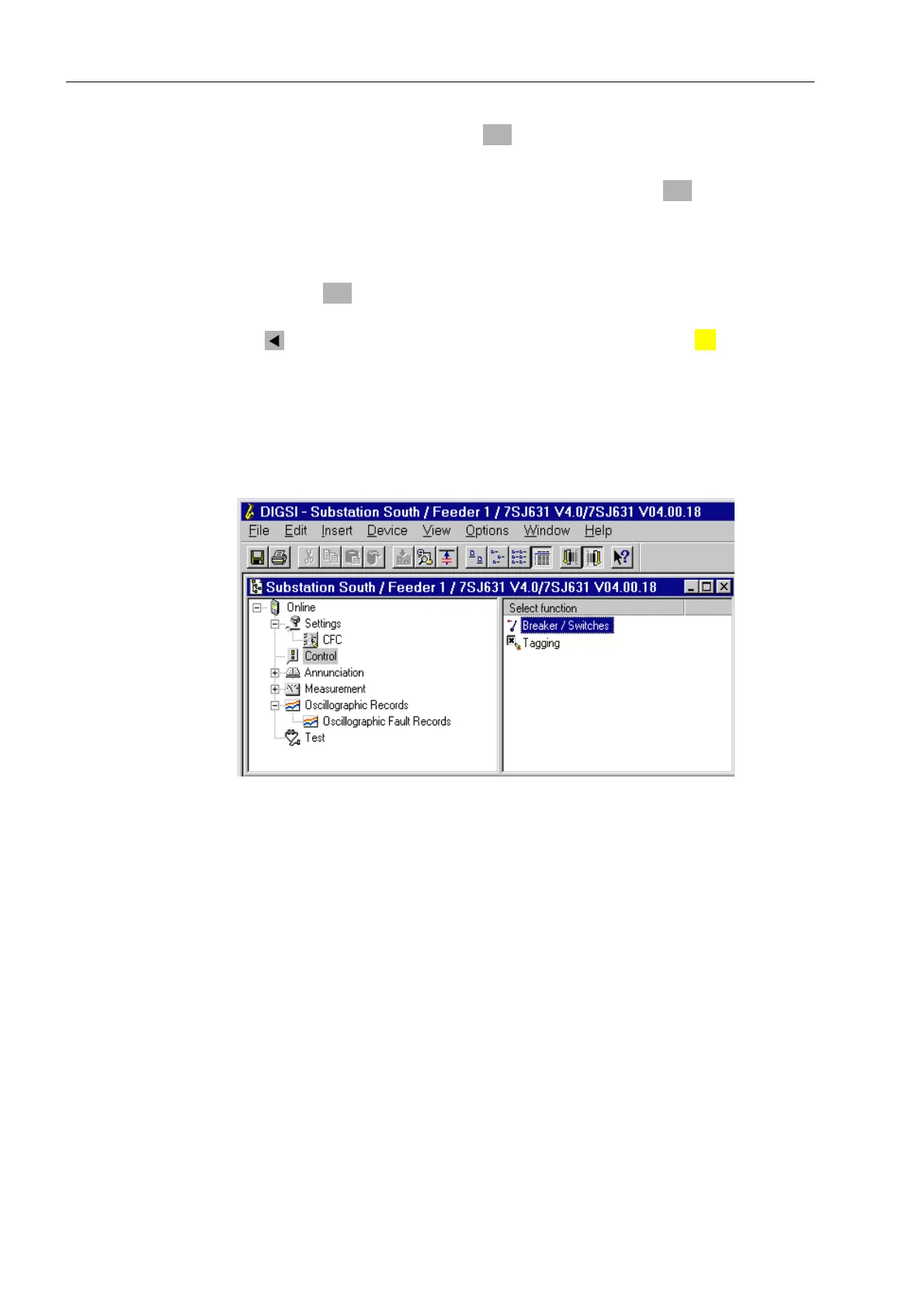

Figure 7-48 Window for Control of Operating Resources in DIGSI
®
4 - (example)
By double clicking on %UHDNHU6ZLWFKHV, a dialog field is opened in which the
present status of each switch is visible. See Figure 7-49. Control can be performed
from this dialog box provided the switching authority is set to 5(027(.
The switching authority is first transferred to DIGSI
®
4 at the moment the control
window shown in Figure 7-49 is opened. The configuration matrix discussed in Section
5.2 determines the control devices that have information displayed in this field.
ENTER
ENTER
ENTER
MENU
:
