Cut-off delay - PC board D210 6.22

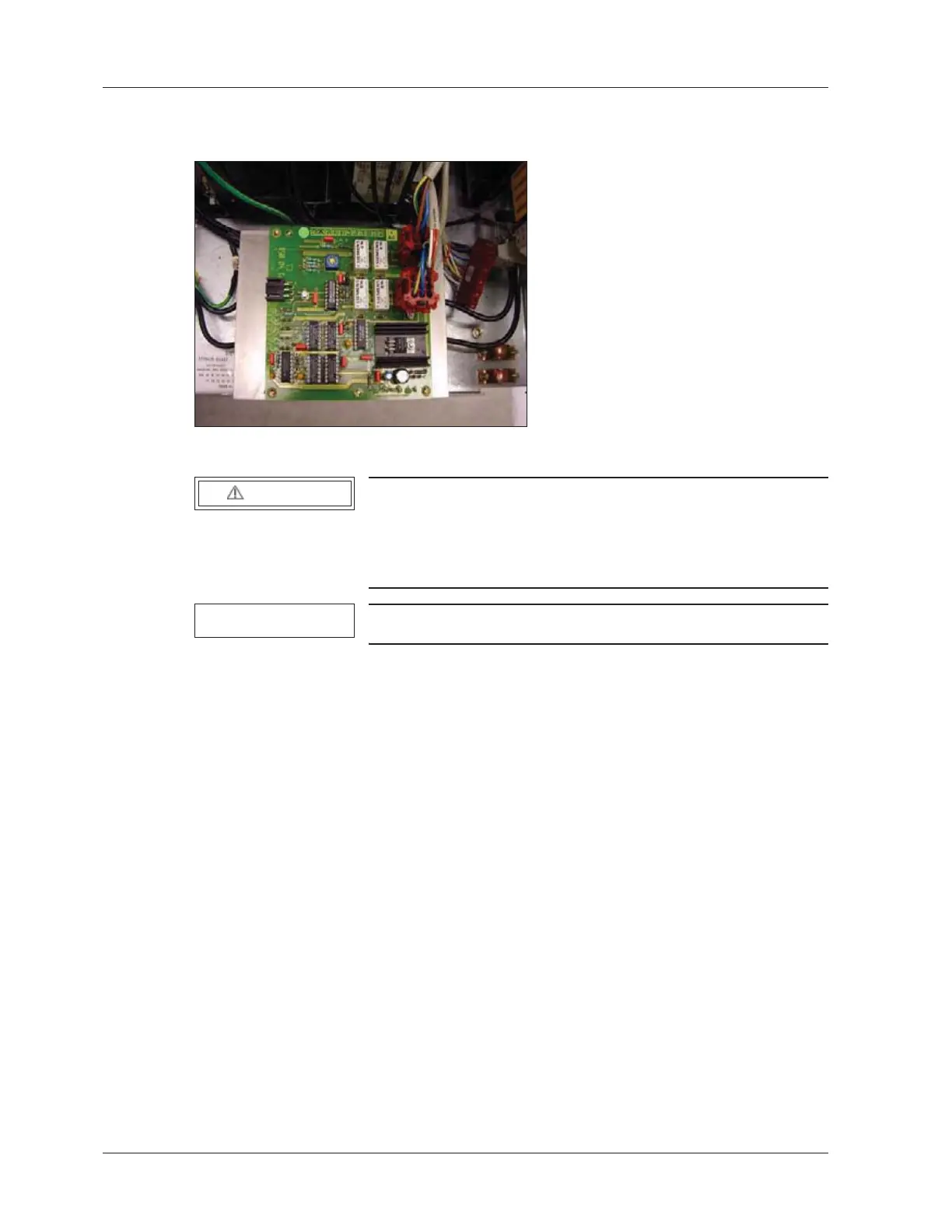

Fig. 37:
WARNING
Electrical voltage!
¹ See (Safety information / p. 11).
¹ Switch the system power supply off and disconnect the
power plug.
NOTE
Only applies to SIREMOBIL Iso-C 3D.
x In the monitor trolley, PC board D210 is installed above the line power filter
((Fig. 37 / p. 122)) .
x Disconnect the system from the power supply by pulling the line power plug plug out of
the socket.
x Loosen the 4 fastening nuts of PC board D210.
x Unplug all connectors.
x Replace board D210 and fasten the new PC board with the 4 nuts.
x Reconnect all connectors.
x Connect the monitor trolley to the power supply again.
x Switch the monitor trolley on and wait for it to boot.
x Check the cut-off delay.
x After the power off button has been pressed, the monitor trolley must switch off after
approx. 3 minutes.
