08.08 CS PS SP

Brakes / Movements 141

Page 141 of 148

For internal use only

Vertical lift motor 7.4

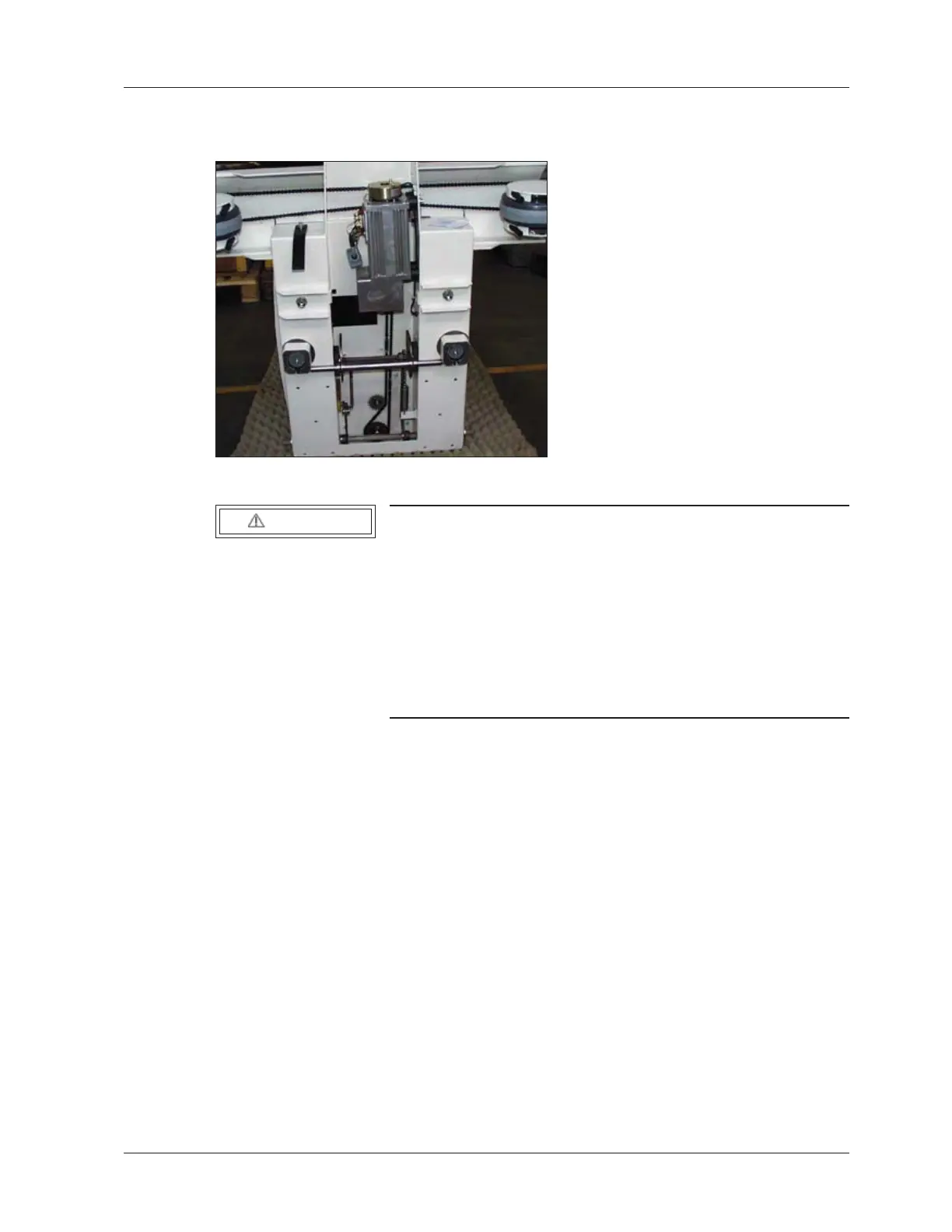

Fig. 57:

WARNING

Risk of injury!

Noncompliance can lead to medium to severe injuries and/or

property damage.

¹ To replace the vertical lift motor, the SIREMOBIL Iso-C

must be placed on its side.

¹ This requires 6 people. To prevent damage to the SIRE-

MOBIL Iso-C or to the floor, we recommend using sev-

eral wool blankets or corrugated cardboard, or other

suitable floor covering.

x Remove the vertical lift magnet from the vertical lift motor (three screws).

x Remove the attachment screws for the vertical lift motor.

x Remove the vertical lift motor with the gears from the spindle.

x Disconnect the wires from the frequency converter FU.

x Route the wires of the new vertical lift motor to the frequency converter FU and connect

them.

x Place the new motor on the spindle. Make sure the spindle is seated correctly in the

gears.

x Attach the motor with the screws.

x Install the vertical lift magnet on the vertical lift motor.

x Return the SIREMOBIL Iso-C to the upright position.

x Lubricate the spindle and the lifting column mounting.

x Check the vertical lift function. Also check that the vertical lift motor switches off at the

end positions of the vertical lifting column. (limit switches).
