134 Replacing boards and components
SIREMOBIL Iso-C SPR2-230.840.01.01.02 © Siemens, 2008
08.08 CS PS SP
Page 134 of 148
For internal use only
Angulation part 6.30

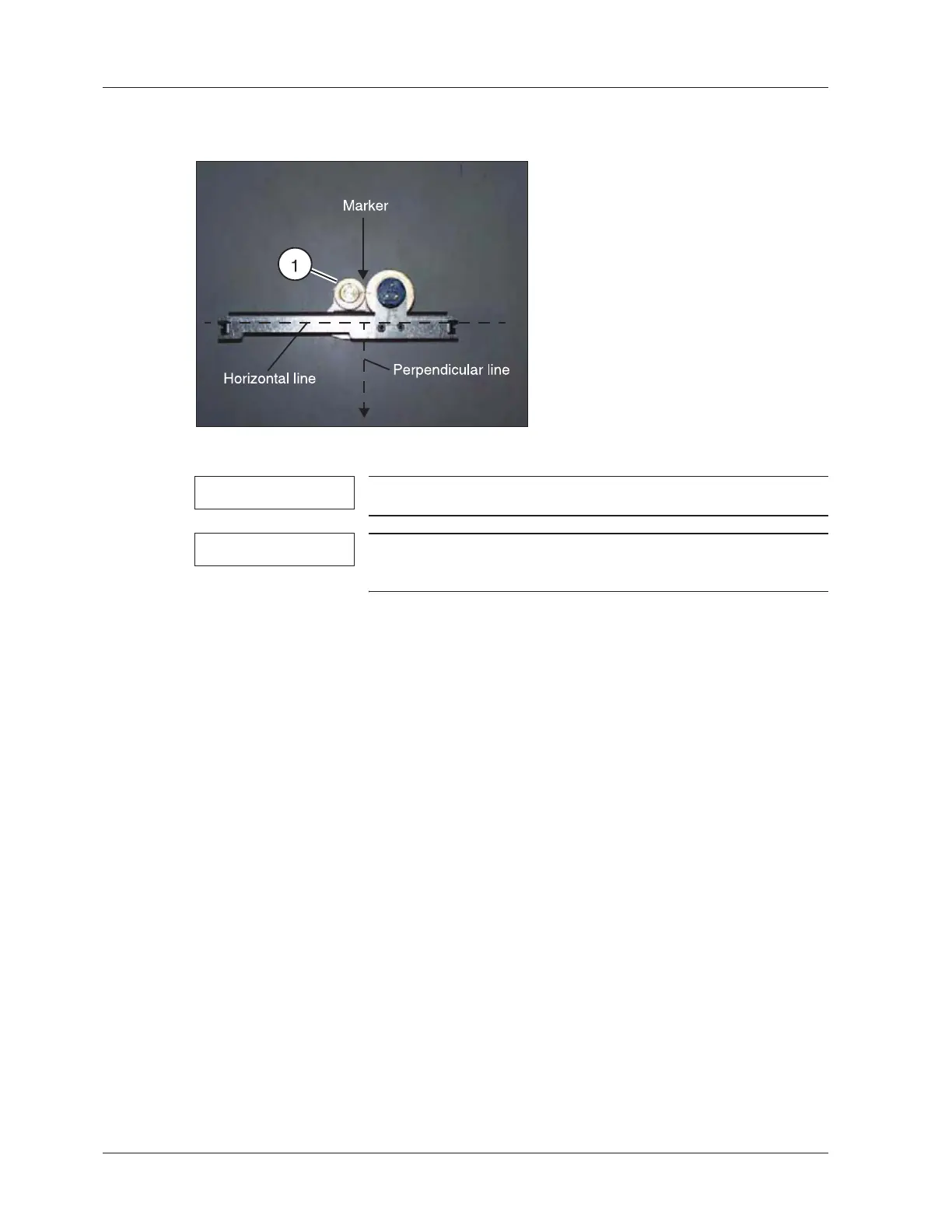

Fig. 51:
NOTE
Only applies to SIREMOBIL Iso-C 3D.
NOTE
When the angulation part is vertical, the markings on the two
toothed belts must coincide (see (Fig. 51 / p. 134)).
x If the toothed wheel ((1/Fig. 51 / p. 134)) was turned several times during transport, the
perpendicular must be turned prior to installation in one direction until the markings
coincide again when the angulation part is vertical.
x Move the C-arm to the 0° position.
x Disconnect the cable of the actual value potentiometer.
x Loosen the fastening screws of the angulation part.
x Replace the angulation part. In doing so, ensure that the markings (black lines) on the
two toothed wheels coincide when the C-arm is perpendicular.
x Reconnect the actual value potentiometer cable.
Perform the mechanical settings according to the Startup Instructions, Chapter 6.
