Settings 0
Resolution
x The I.I. should remain in the service position.
WARNING
X-ray radiation!
¹ See (Safety information / p. 11).
¹ Use radiation protection! Wear a lead apron.
x Attach the resolution test to the I.I. input.
x Insert 2.1 mm Cu + 60 mm Al at the radiation exit port of the SIREPHOS.
x Use the I.I. Quick test, chapter: Resolution for evaluating optical sharpness.
x Check the resolution and, if necessary, adjust the wide ring on the optics.
x Perform the additional chapters of the I.Q. Quick test after all the work is complete.
Dose rate
x Check the dose rate and, if necessary, adjust it.

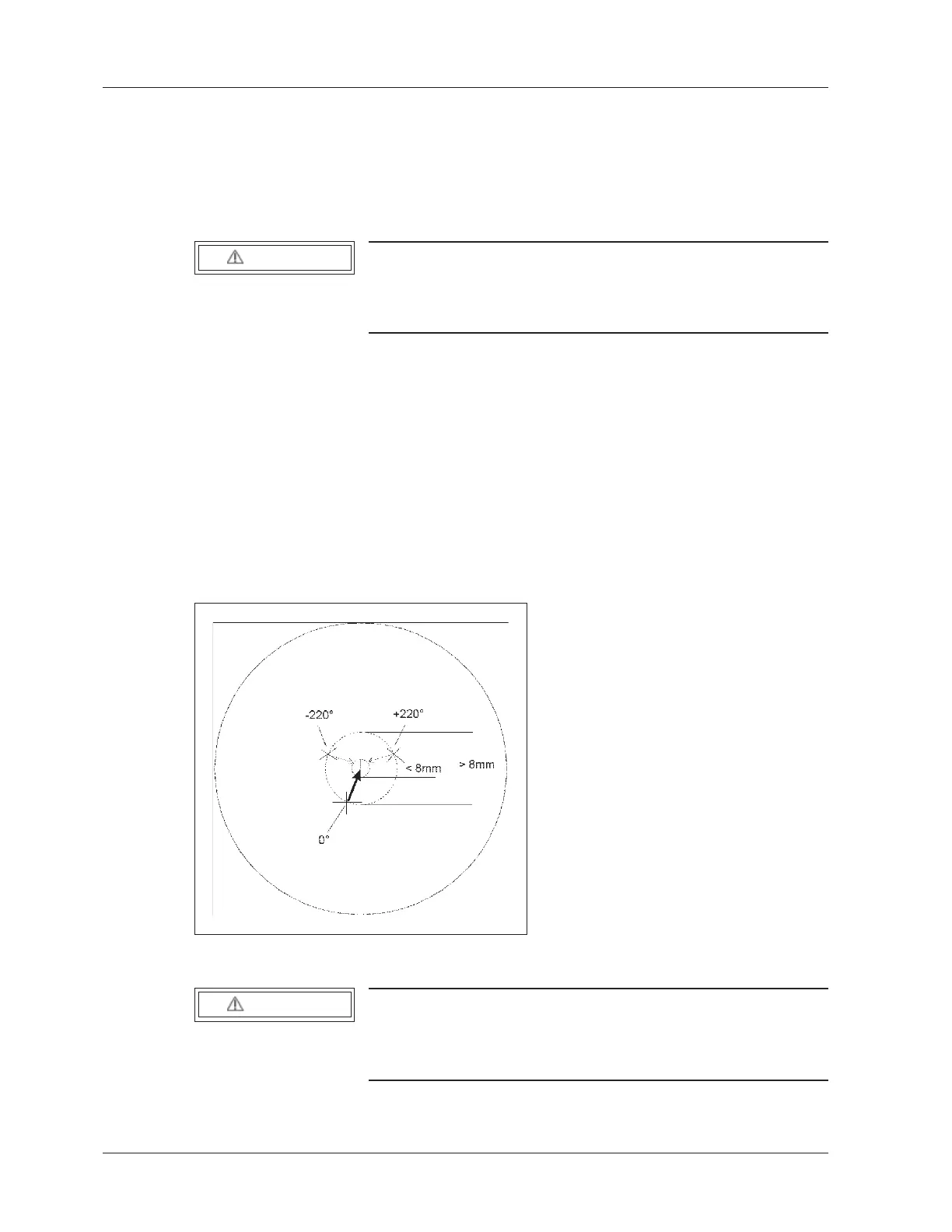

Checking the camera optics centering at the I.I. output
Fig. 34:
WARNING
X-ray radiation!
¹ See (Safety information / p. 11).
¹ Use radiation protection! Wear a lead apron.
